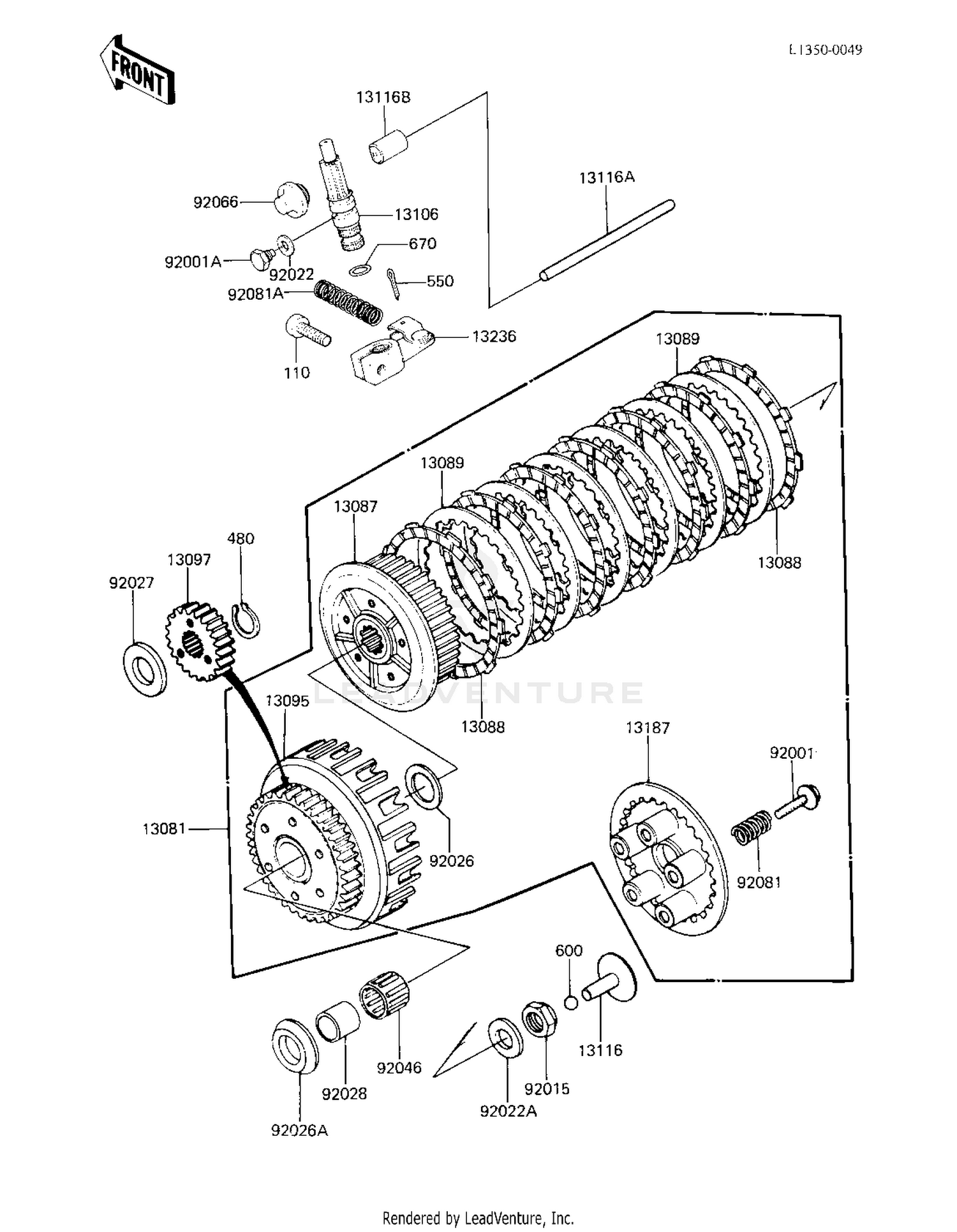

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13081
CLUTCH-ASSY
13081-1034
|
$436.80 | ||
|
Available to order. Add to View Price |
|||
|
#13087
HUB,CLUTCH
13087-043
|
$148.42 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE,CLUTCH FRICTION
13088-030
|
$25.24 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE,CLUTCH STEEL
13089-022
|
$18.43 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1033
Superseded by 13095-1389
|
$548.37 | ||
|
Available to order. Add to View Price |
|||
|
#13097
GEAR,SECONDARY SHAFT,
13121-037
Superseded by 13097-1345
|
$123.43 | ||
|
Available to order. Add to View Price |
|||
|
#13106
SHAFT-CLUTCH RELEASE
13106-1015
|
$33.20 | ||
|
Available to order. Add to View Price |
|||
|
#13116
PUSHER,CLUTCH SPRG PL
13116-022
|
$25.46 | ||
|
Available to order. Add to View Price |
|||
|
#13116A
ROD,CLUTCH PUSH
13116-1007
|
$35.89 | ||
|
Available to order. Add to View Price |
|||
|
#13116B
ROD-PUSH,CLUTCH,6T
13116-1040
|
$21.50 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE,CLUTCH SPRING
13187-006
|
$67.62 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,CLUTCH REL
13236-1052
|
$49.34 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X18
92001-1066
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,CLUTCH RELEASE
92003-130
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,20MM
92015-1555
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,20.3X36X2.3
92022-1116
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,25.5X47X2.5
92026-022
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER,THRUST,T=5.5
92026-116
|
$16.97 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,T=5MM
92027-263
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,25X32X23.6
92028-178
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,KTV323723
92046-028
|
$20.48 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,CLUTCH RELEASE
92066-1097
|
$6.27 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CLUTCH
92081-1176
|
$10.27 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,CLUTCH RELEASE
92081-1486
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0620
Superseded by 112BA0620
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,22MM
480J2200
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,1.6X15
550D1615
Superseded by 550AA1615
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#600
"BALL-STEEL,3/8",,2017-03-16 13:30:
600A1200
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,10MM
670B2010
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
