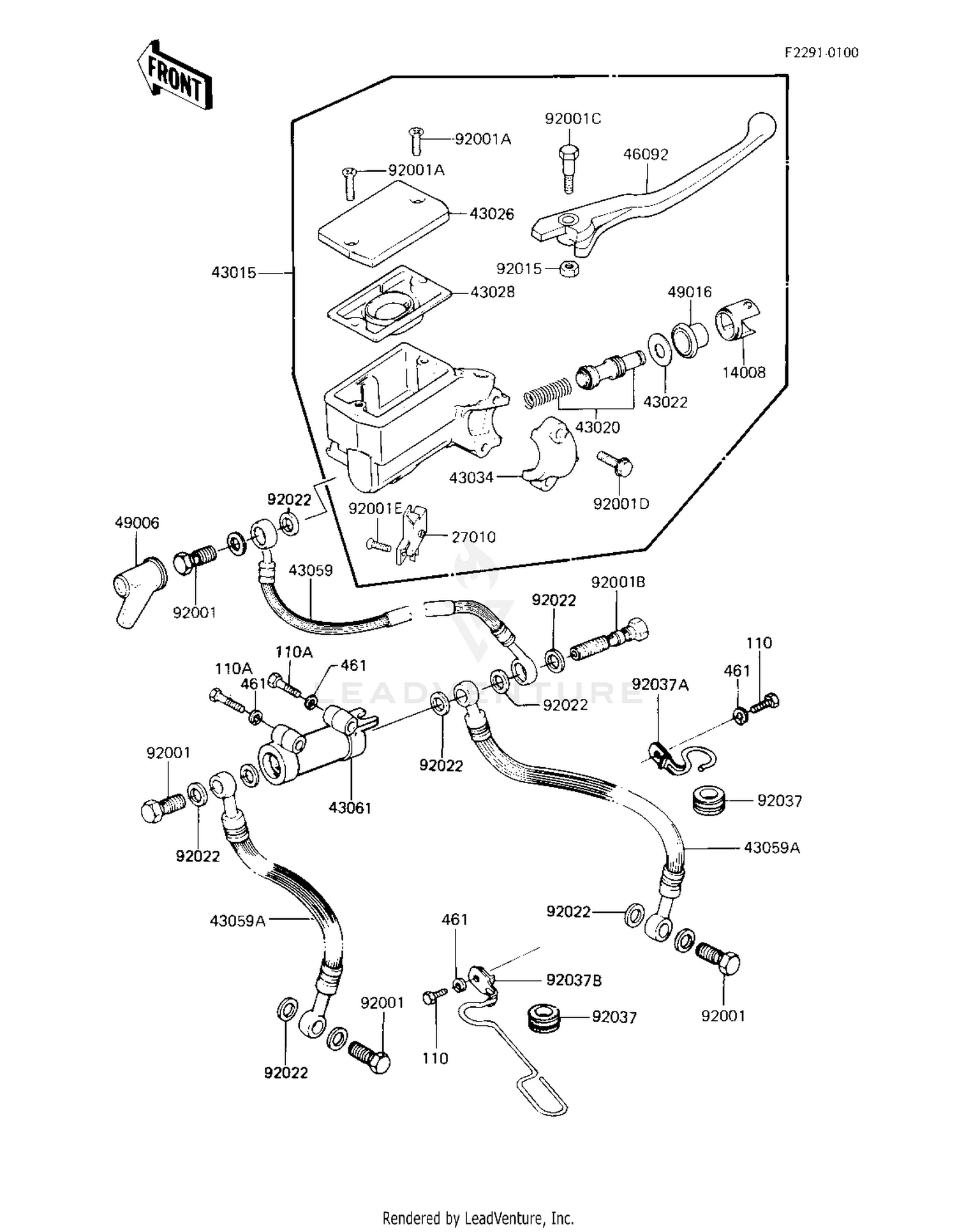

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14008
LINER,PISTON
14008-1035
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-1056
|
$43.24 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-1120
|
$281.25 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1079
|
$84.78 | ||
|
Available to order. Add to View Price |
|||
|
#43022
STOPPER-BRAKE,PISTON
43022-1009
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE,FR
43026-1023
|
$30.41 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,MASTER CYL1
43028-1029
|
$26.53 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER,MASTER CYLINDR
43034-1001
|
$33.77 | ||
|
Available to order. Add to View Price |
|||
|
#43059
HOSE-BRAKE,L=500
43059-1185
|
$65.27 | ||
|
Available to order. Add to View Price |
|||
|
#43059A
HOSE-BRAKE,FR,L=600
43059-1179
|
$127.26 | ||
|
Available to order. Add to View Price |
|||
|
#43061
JOINT,FR BRAKE HOSE
43061-1002
|
$69.39 | ||
|
Available to order. Add to View Price |
|||
|
#46092
LEVER-GRIP.FRONT BRAK
46092-1042
|
$58.00 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,DUST
49006-1067
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,BRK PISTON
49016-1041
|
$10.47 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
SCREW,COUNTERSUNK HED
92001-1055
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,OIL,L=37
92002-1909
Superseded by 92153-0628
|
$11.41 | ||
|
Available to order. Add to View Price |
|||
|
#92001C
BOLT,6X37.3,BLACK
92001-1512
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#92001D
BOLT,W/WASHER,6X25,BL
92001-1513
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92001E
SCREW-COUNTERSUNK
92001-1532
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,6MM
92015-1191
Superseded by 92210-0006
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037
GROMMET,HOSE CLAMP
43064-006
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,FRNT BRK HOSE
92037-1054
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,CABLE
92037-1116
|
$23.67 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#110A
BOLT-UPSET,6X40
112G0640
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
