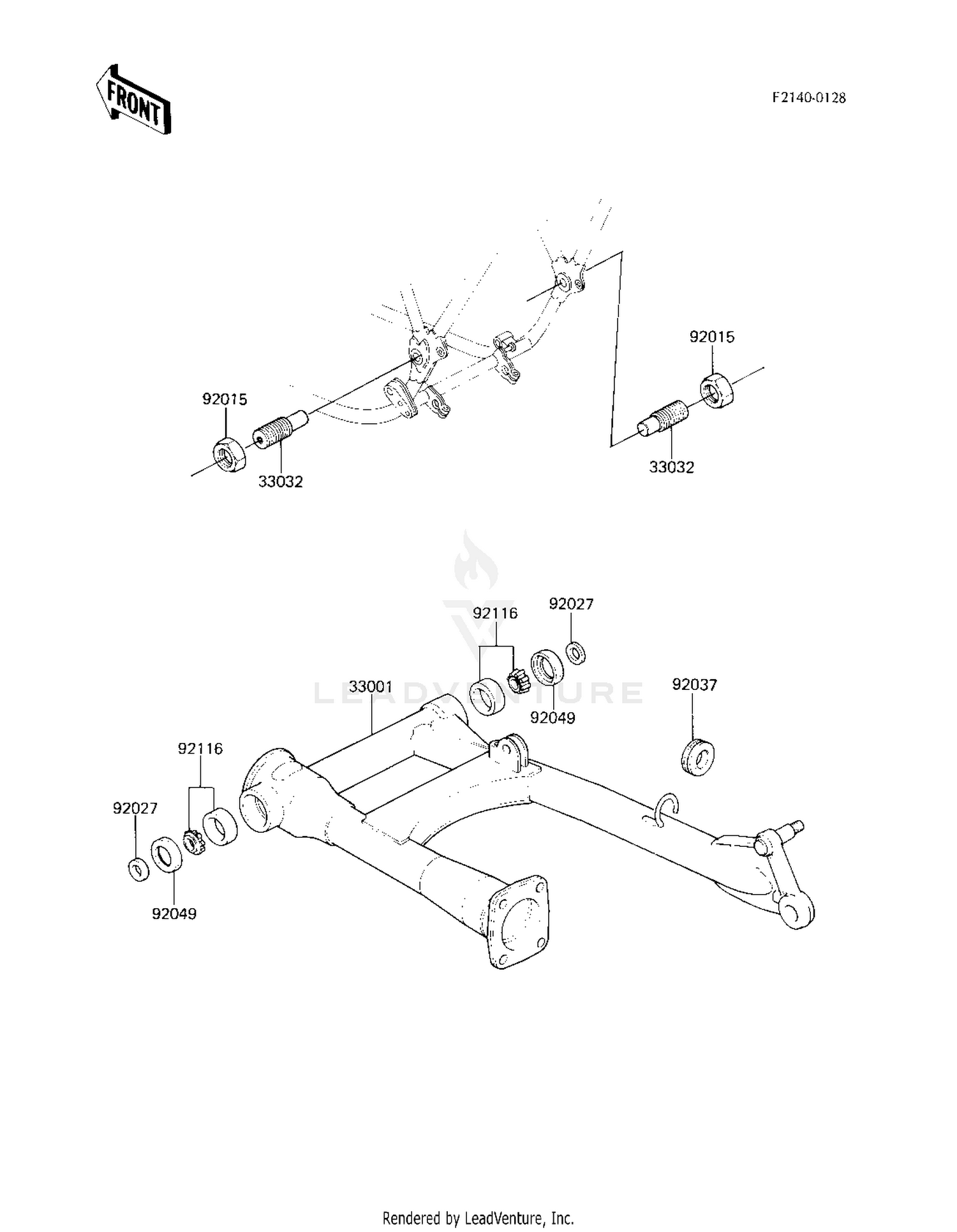

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#33001
ARM-COMP-SWING
33001-1128
|
$462.03 | ||
|
Available to order. Add to View Price |
|||
|
#33032
SHAFT-SWING ARM
33032-1025
|
$32.21 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,22MM
92015-1167
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,17X26X4.5
92027-1394
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037
GROMMET,HOSE CLAMP
43064-007
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,26406
92049-1030
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#92116
BRG,ROLLER,4T30203E1
92116-1001
|
$36.58 | ||
|
Available to order. Add to View Price |
|||
