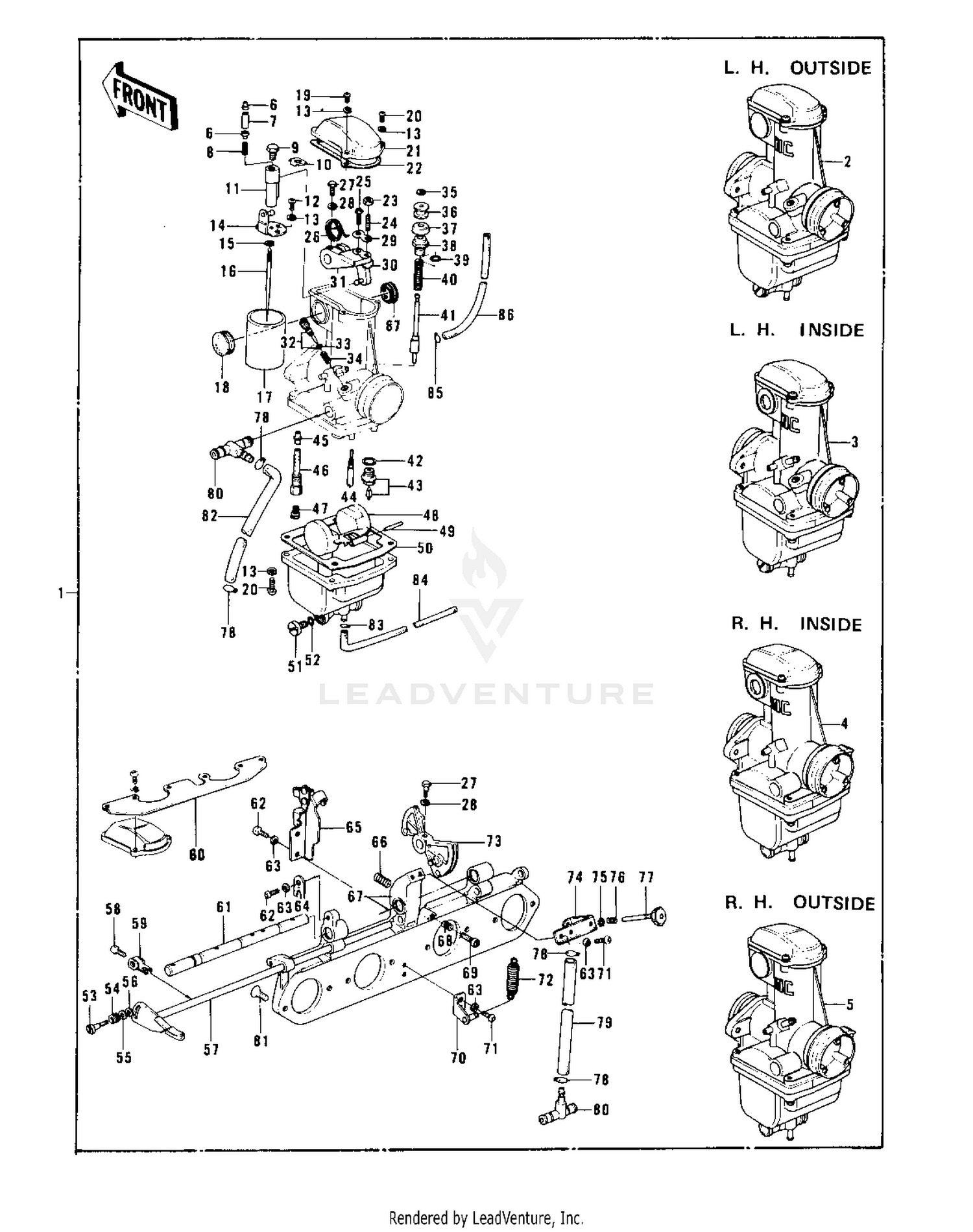

Carburetors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
16001-255
|
$1,089.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
CARBURETOR,L.H OUTSID
16001-268
|
$199.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
CARBURETOR,L.H INSIDE
16001-269
|
$400.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
CARBURETOR,R.H INSIDE
16001-270
|
$329.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
CARBURETOR,R.H OUTSID
16001-271
|
$155.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT,SPRING
16057-002
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER,THROTTLE SHAFT
16065-017
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING,A
16040-004
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
16067-008
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER,LOCK,A
16054-003
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT,THROTTLE VALVE
16052-003
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW-PAN-WS-CROS
16033-027
Superseded by 223AA0412
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE,THROTTLE VALVE
16007-018
|
$20.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
16008-010
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
JET NEEDLE,5DL3
16009-071
|
$56.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
VALVE,THROTTLE CAL,5
16025-075
|
$109.72 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP,RUBBER
16039-042
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-PAN-WS-CROS,4X14
223B0414
Superseded by 223AA0414
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-PAN-WS-CROS,4X16
16033-009
Superseded by 223AA0416
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
TOP,MIXING CHAMBER
16005-027
|
$23.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET,CHAMBER TOP
16019-031
|
$41.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT,5MM
16003-013
|
$9.07 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW,LEVER
16033-025
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,4X16
16067-009
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING,LEVER
16040-021
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT,HEX HEAD,5X14
16067-006
|
$17.61 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER,PLATE
16054-008
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#30
LEVER,THROTTLE
16068-013
|
$16.43 | ||
|
Available to order. Add to View Price |
|||
|
#31
LEVER
16068-012
|
$17.87 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW,PILOT ADJUSTING
16014-1004
|
$36.97 | ||
|
Available to order. Add to View Price |
|||
|
#33
O RING
16038-022
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING,PILOT AIR SCREW
16022-007
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP
16076-003
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR
16073-014
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
|
#37
CAP,RUBBER,STARTER PLUNGE
16039-015
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#38
CAP,STARTER PLUNGER
16012-015
|
$16.64 | ||
|
Available to order. Add to View Price |
|||
|
#39
O RING,9MM
670B1509
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPRING,STARTER PLUNGER
16013-008
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLUNGER,STARTER
16016-017
|
$10.73 | ||
|
Available to order. Add to View Price |
|||
|
#42
GASKET,FLOAT VALVE SEAT
16029-004
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#43
FLOAT VALVE ASSY
16030-027
|
$124.08 | ||
|
Available to order. Add to View Price |
|||
|
#44
PILOT JET,#17.5
92064-042
|
$27.27 | ||
|
Available to order. Add to View Price |
|||
|
#45
NEEDLE JET,0-6
16017-093
|
$44.66 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOLDER,NEEDLE JET
16047-004
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#47
MAIN JET,A115
92063-076
Superseded by 92063-1109
|
$14.87 | ||
|
Available to order. Add to View Price |
|||
|
#47
MAIN JET,#110R
92063-1038
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#47
JET-MAIN,#A112.5
92063-075
Superseded by 92063-1110
|
$14.87 | ||
|
Available to order. Add to View Price |
|||
|
#47
JET-MAIN NO 117.5R
92063-077
|
$17.11 | ||
|
Available to order. Add to View Price |
|||
|
#47
JET-MAIN,#A120
92063-078
Superseded by 92063-1106
|
$17.84 | ||
|
Available to order. Add to View Price |
|||
|
#48
FLOAT
16031-031
|
$165.44 | ||
|
Available to order. Add to View Price |
|||
|
#49
PIN,FLOAT
16032-003
Superseded by 16032-008
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#50
GASKET,FLOAT CHAMBER
11009-1563
|
$23.77 | ||
|
Available to order. Add to View Price |
|||
|
#51
COVER,MAIN JET
16049-005
|
$28.85 | ||
|
Available to order. Add to View Price |
|||
|
#52
0 RING,MAIN JET COV
16038-016
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#53
SCREW
16046-005
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#54
SPRING,F
16040-009
|
$11.14 | ||
|
Available to order. Add to View Price |
|||
|
#55
WASHER,PLAIN
16039-020
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#56
WASHER,PLAIN
16039-019
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#57
SHAFT,STARTER PLUNGER
16041-016
|
$72.53 | ||
|
Available to order. Add to View Price |
|||
|
#58
SCREW,PAN HEAD,5X7
16046-007
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
LEVER,STARTER PLUNGER
13168-1026
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#60
PLATE,CARB CONNECTION
16065-040
|
$16.43 | ||
|
Available to order. Add to View Price |
|||
|
#61
SHAFT,CARB CONNECTION
16041-017
|
$66.73 | ||
|
Available to order. Add to View Price |
|||
|
#62
SCREW,PAN HEAD,5X14
16033-016
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#63
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Unavailable |
|||
|
#64
PLATE,SHAFT STOPPER
16055-012
|
$10.62 | ||
|
Available to order. Add to View Price |
|||
|
#65
BRACKET,CABLE PULLY
16077-014
|
$52.05 | ||
|
Available to order. Add to View Price |
|||
|
#66
SPRING,CABLE PULLY
16040-022
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#67
HOLDER,CARB MOUNTING
16065-039
|
$110.03 | ||
|
Available to order. Add to View Price |
|||
|
#68
SPRING,THROTTLE ADJST
16022-010
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#69
ADJUSTER,THROTTLE LEV
16021-020
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#70
BRACKET,CABLE PULLY
16077-012
|
$9.70 | ||
|
Available to order. Add to View Price |
|||
|
#71
SCREW,PAN HEAD,5X14
16033-016
|
$4.71 | ||
|
Unavailable |
|||
|
#72
SPRING,CABLE PULLY
16040-020
|
$27.02 | ||
|
Available to order. Add to View Price |
|||
|
#73
PULLY,THROTTLE CABLE
16068-011
|
$38.07 | ||
|
Available to order. Add to View Price |
|||
|
#74
HOLDER,THROTTLE SCREW
16077-013
|
$21.25 | ||
|
Available to order. Add to View Price |
|||
|
#75
WASHER-TOOTHED
464H0500
Superseded by 464EA0500
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#76
SPRING,THR STOP SCREW
16022-009
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#77
SCREW,THROTTLE STOP
16021-028
|
$28.39 | ||
|
Available to order. Add to View Price |
|||
|
#78
CLAMP-PIPE
92037-072
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#79
HOSE,FUEL
92059-144
|
$94.09 | ||
|
Available to order. Add to View Price |
|||
|
#80
JOINT,FUEL PIPE
16046-002
|
$47.88 | ||
|
Available to order. Add to View Price |
|||
|
#81
SCREW,6X14
16033-029
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#82
PIPE,OVER FLOW
92059-085
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#83
CLAMP,OVERFLOW HOSE
92037-173
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#84
HOSE,FUEL OVERFLOW
92059-134
Superseded by 92059-147
|
$34.79 | ||
|
Unavailable |
|||
|
#85
CLAMP
92037-174
Superseded by 92037-1610
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#86
HOSE,BREATHER
92059-135
|
$23.95 | ||
|
Available to order. Add to View Price |
|||
|
#87
GROMMET,CARB
92071-102
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
