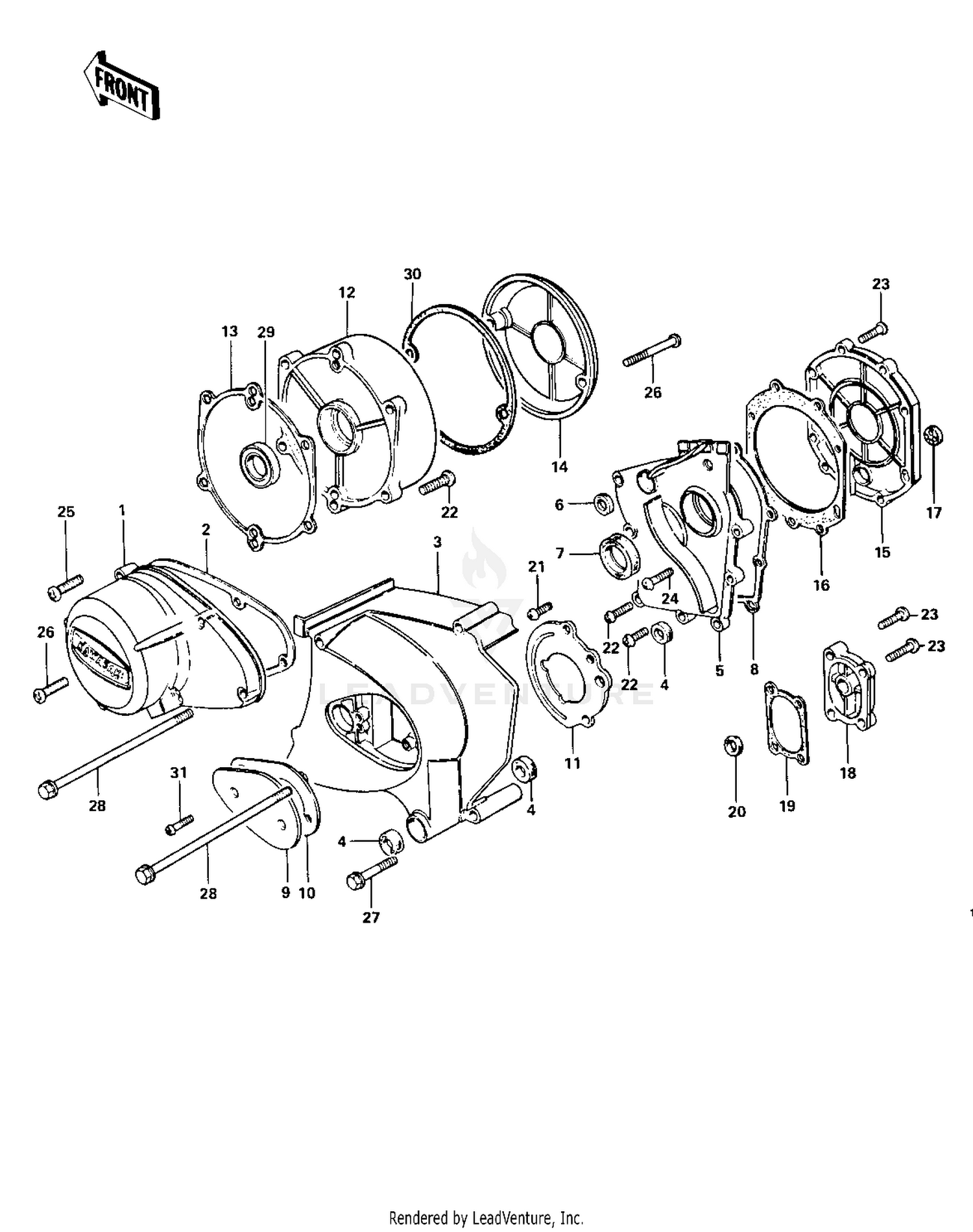

Engine Covers Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,L.H ENGINE
14031-1020
|
$554.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,GENERATOR COVE
11060-1075
Superseded by 11061-1082
|
$21.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,FRONT CHAIN
14026-026
|
$345.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL SB12205
92049-004
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER,TRANSMISSION
14025-1106
|
$174.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL,TC7187
92050-048
|
$24.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL-OIL,HTC 32 52 10
92050-024
Superseded by 92049-1506
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET,TRANSMISSIONCV
14058-004
Superseded by 11060-1531
|
$35.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER,OIL PUMP
14026-012
|
$17.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET,CHAIN COVER
14045-015
|
$16.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,ENGINE SPROCKET
14024-008
|
$15.46 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER,R.H ENGINE
14032-083
|
$332.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET,RH ENGINE COVE
11060-1071
Superseded by 11061-1129
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER,BREAKER POINT
14027-023-80
|
$172.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER,CLUTCH
14032-121
|
$225.23 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET,CLUTCH COVER
14046-024
Superseded by 11060-1529
|
$44.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
GAUGE,OIL LEVEL
52015-004
|
$46.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER,KICK SHAFT,BARL
14032-075-2H
|
$47.92 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET,KICK COVER
14046-025
Superseded by 11060-1606
|
$10.57 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL-OIL,SC22325
92049-1048
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-PAN HEAD,6X22
220B0622
Superseded by 220AA0622
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-PAN-CROS,6X25
220B0625
Superseded by 220AA0625
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-PAN HEAD,6X28
220B0628
Superseded by 220AA0628
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-PAN-CROS,6X30
220B0630
Superseded by 220AA0630
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-PAN HEAD,6X40
220B0640
Superseded by 220AA0640
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT,6X70
110G0670
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT-UPSET,6X125
112G06125
Superseded by 112BA06125
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL,S25407R
92050-047
|
$33.13 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET,CONTACT BREAKE
14050-006
Superseded by 11060-1594
|
$25.86 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Unavailable |
|||
