1976 Kawasaki KZ900 LTD Transmission/change Drum OEM Parts

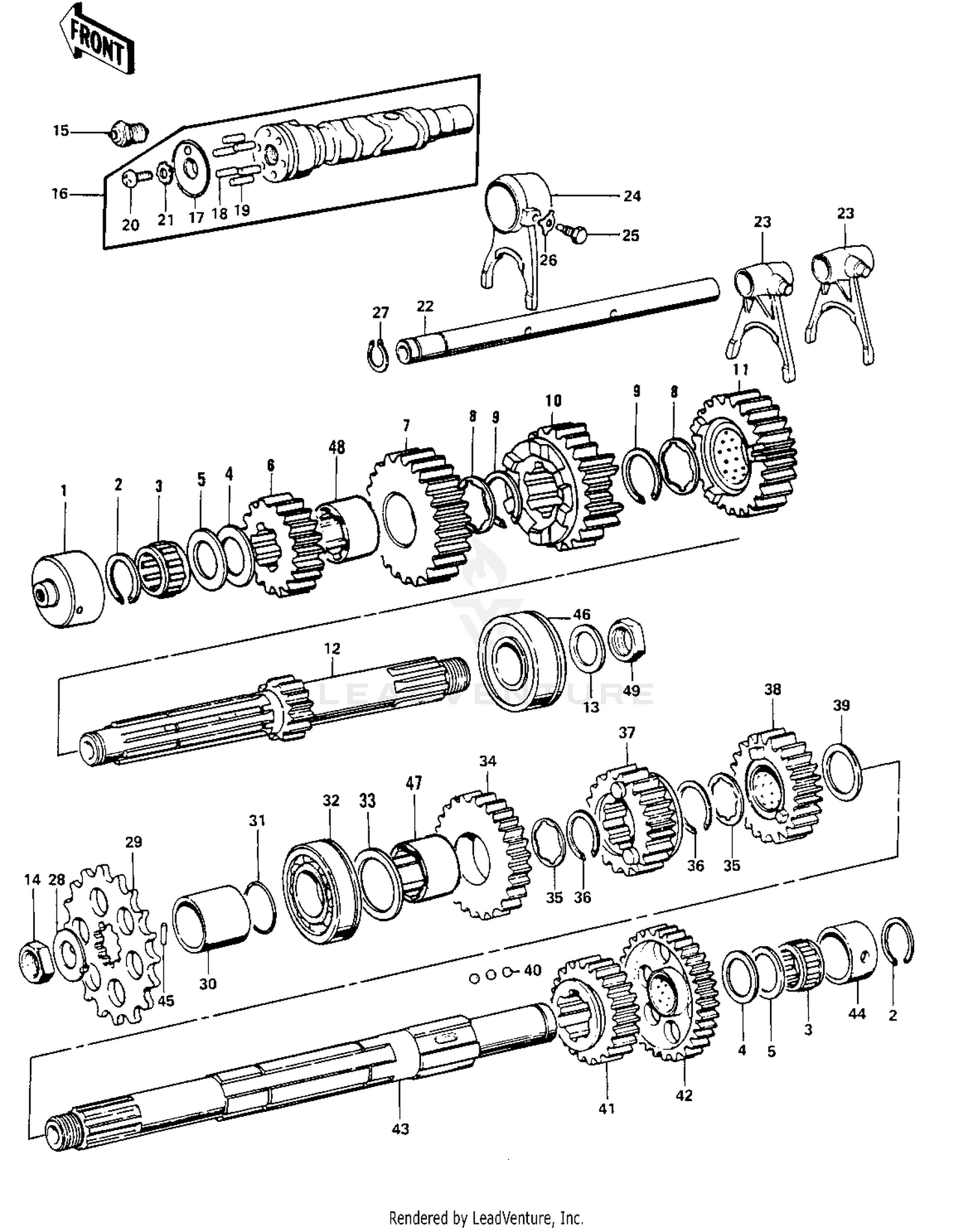

Transmission/change Drum Diagram

Item	MSRP	Qty
#1 BUSH,DRIVE SHAFT 92028-122	$95.81
Available to order. Add to View Price
#2 RING-SNAP,20X25.5X1.2 92033-025	$4.80
Available to order. Add to View Price
#3 BEARING-NEEDLE,FWF-223014 92046-031	$19.01
Available to order. Add to View Price
#4 SPACER (I.D=22 O.D=35 92026-1020	$5.06
Available to order. Add to View Price
#5 WASHER,22.3X35X1.6 92022-212	$9.56
Available to order. Add to View Price
#5 WASHER,22.3X35X1.2 92022-213	$9.99
Available to order. Add to View Price
#6 2ND GER,DRIVE SHAFT 13130-032	$116.27
Available to order. Add to View Price
#7 TOP GEAR,DRIVE SHAFT 13136-042	$140.28
Available to order. Add to View Price
#8 WASHER,THRUST,26MM 92024-042	$10.68
Available to order. Add to View Price
#9 CIRCLIP-TYPE-C,28MM 480J2800	$4.56
Available to order. Add to View Price
#10 3RD GEAR,DRIVE SHAFT 13132-030	$152.94
Available to order. Add to View Price
#11 4TH GEAR,DRIVE SHAFT 13134-016	$218.68
Available to order. Add to View Price
#12 SHAFT,DRIVE 12T 13127-042	$295.31
Available to order. Add to View Price
#13 WASHER 92125-002	$15.86
Available to order. Add to View Price
#14 NUT,20MM 92016-043	$16.72
Available to order. Add to View Price
#15 SWITCH,NEUTRAL 13151-5003	$20.43
Available to order. Add to View Price
#16 DRUM ASSY,GEAR CHANGE 13239-1010	$342.56
Available to order. Add to View Price
#17 PLATE,GEAR CHNG DRUM 13142-013	$1.72
Available to order. Add to View Price
#18 PIN,DOWEL,4X17.8 92042-020	$4.89
Available to order. Add to View Price
#19 PIN,DOWEL,4X15.8 92042-014	$0.43
Available to order. Add to View Price
#20 SCREW-PAN-CROS,6X12 220B0612 Superseded by 220AA0612	$1.16
Available to order. Add to View Price
#21 WASHER LOCK 6MM 464G0600	$2.81
Available to order. Add to View Price
#22 ROD,SHIFT 13209-011	$22.80
Available to order. Add to View Price
#23 FORK,SELECTOR,4TH&TOP 13140-045	$244.18
Available to order. Add to View Price
#24 FORK,SELECTOR,3RD 13140-046	$200.40
Available to order. Add to View Price
#25 PIN SELECT FORK GUIDE 92043-016	$25.60
Available to order. Add to View Price
#26 WASHER LOCK 10MM 92031-001	$11.05
Available to order. Add to View Price
#27 CIRCLIP-TYPE-C,12MM 480J1200	$0.61
Available to order. Add to View Price
#28 WASHER,LOCK,20MM 92024-044	$13.04
Available to order. Add to View Price
#29 ENGINE SPROCKET 15T 13144-062	$89.92
Available to order. Add to View Price
#30 COLLAR,ENG SPROCKET 92027-288	$37.83
Available to order. Add to View Price
#31 RING-O 92055-035	$4.84
Available to order. Add to View Price
#32 BEARING,BL305 256217 92045-021	$176.33
Available to order. Add to View Price
#33 WASHER,PLAIN,25MM 92022-210	$8.16
Available to order. Add to View Price
#34 2ND GEAR,OUTPUT SHAFT 13131-038	$235.09
Available to order. Add to View Price
#35 WASHER,TOOTHED,30.3X40X1.5 92024-043	$12.61
Available to order. Add to View Price
#36 CIRCLIP-TYPE-C,30MM 480J3000	$6.02
Available to order. Add to View Price
#37 TOP GEAR,OUTPUT SHAFT 13129-1214	$307.81
Available to order. Add to View Price
#38 3RD GEAR,OUTPUT SHAFT 13133-031	$290.41
Available to order. Add to View Price
#39 WASHER,PLAIN,30MM 92022-209	$9.24
Available to order. Add to View Price
#40 BALL-STEEL,3/16 600A0600	$1.04
Available to order. Add to View Price
#41 4TH GEAR,OUTPUT SHAFT 13135-020	$121.79
Available to order. Add to View Price
#42 LOW GER,OUTPUT SHAFT 13129-046	$144.58
Available to order. Add to View Price
#43 SHAFT,OUTPUT 13128-5006	$204.07
Available to order. Add to View Price
#44 BUSH,OUTPUT SHAFT 92028-123	$52.59
Available to order. Add to View Price
#45 PIN 92043-109	$4.95
Available to order. Add to View Price
#46 BEARING,BALL,5305NSH2 92045-1028	$127.15
Available to order. Add to View Price
#47 BUSHING,2ND GEAR 92028-1005	$30.23
Available to order. Add to View Price
#48 BUSHING,TOP GEAR 92028-1124	$43.72
Available to order. Add to View Price
#49 NUT,20MM 92015-1555	$12.62
Available to order. Add to View Price
