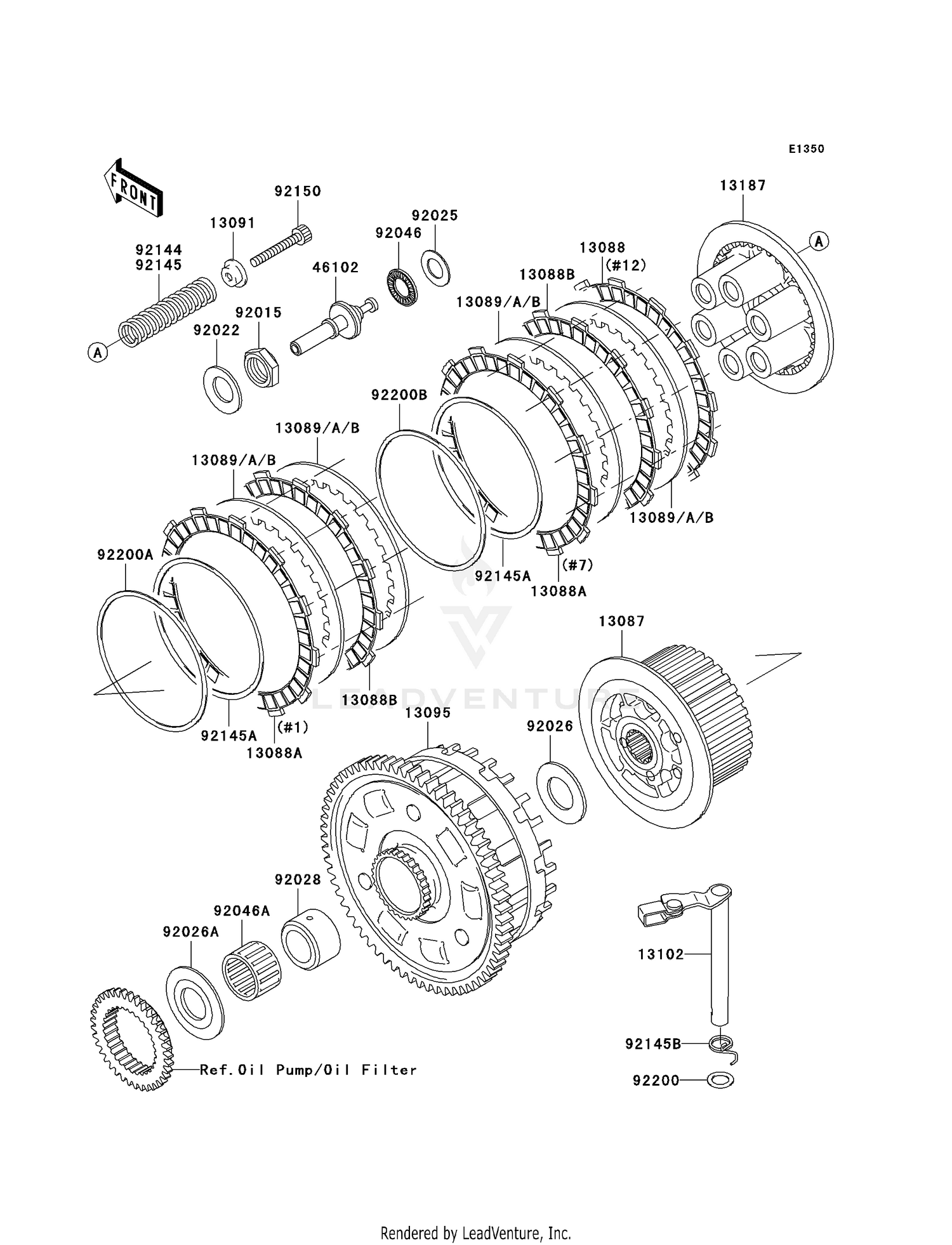

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13087
HUB-CLUTCH
13087-1183
|
$183.76 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-1131
|
$18.77 | ||
|
Available to order. Add to View Price |
|||
|
#13088A
PLATE-FRICTION
13088-1140
|
$18.77 | ||
|
Available to order. Add to View Price |
|||
|
#13088B
PLATE-FRICTION
13088-1143
|
$19.37 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE-CLUTCH,T=1.6
13089-1123
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#13089A
PLATE-CLUTCH,T=2.0
13089-1124
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#13089B
PLATE-CLUTCH,T=1.4
13089-1125
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,CLUTCH SPRING
13091-1041
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1404
|
$606.20 | ||
|
Available to order. Add to View Price |
|||
|
#13102
RELEASE-COMP-CLUTCH
13102-1158
|
$63.44 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE-CLUTCH OPERATIN
13187-1084
|
$87.01 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD,CLUTCH RELEASE
46102-1429
|
$52.88 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,20MM
92015-1555
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,20.3X36X3.7
92022-1868
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92025
SHIM,15.3X27.5X1.20
92025-1137
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,25.5X47X2.5
92026-022
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER
92026-1497
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1934
|
$40.78 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,AXK1102
92046-1052
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE
92046-1267
|
$46.58 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,CLUTCH OPERATI
92144-1881
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,CLUTCH
92145-1087
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING
92145-1250
|
$18.63 | ||
|
Available to order. Add to View Price |
|||
|
#92145B
SPRING,CLUTCH RELEASE
92145-1435
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,CLUTCH OPERATING
92150-1855
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,12X18.5X0.5
92200-1487
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,T=1.0
92200-1579
|
$10.12 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER,T=1.2
92200-1580
|
$10.12 | ||
|
Available to order. Add to View Price |
|||
