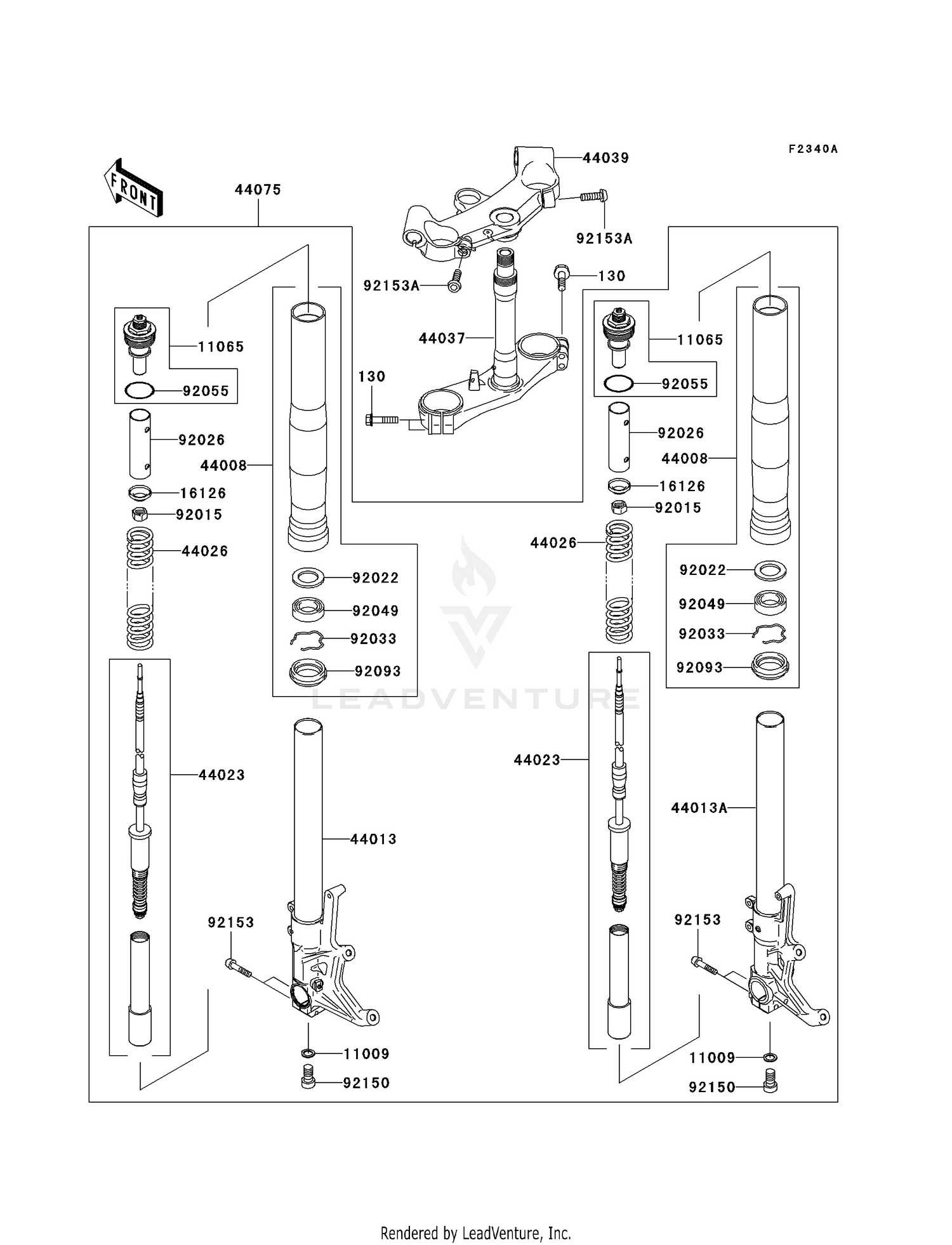

Front Fork (b3/b4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,8X35
130G0835
Superseded by 130CA0835
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,FORK CYLINDER BOLT
11009-1127
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP,FORK
11065-0046
|
$186.79 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE
16126-1381
|
$34.14 | ||
|
Available to order. Add to View Price |
|||
|
#44008
PIPE-FORK OUTER
44008-0009
|
$1,042.79 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER,LH
44013-0009
|
$661.07 | ||
|
Available to order. Add to View Price |
|||
|
#44013A
PIPE-FORK INNER,RH
44013-0010
|
$661.07 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK
44023-1167
|
$490.91 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1766
|
$101.52 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-0010
|
$799.98 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-0009
|
$343.46 | ||
|
Available to order. Add to View Price |
|||
|
#44075
DAMPER-SET-FORK
44075-0017
|
$1,942.72 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1905
|
$18.94 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1299
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK,L=119
92026-1621
|
$31.88 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1077
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER TUBE
92049-1522
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FORK,AIR TUBE
92055-1333
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1480
|
$17.92 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,12X22
92150-1398
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,8X40
92153-1178
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,8X25
92153-1179
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
