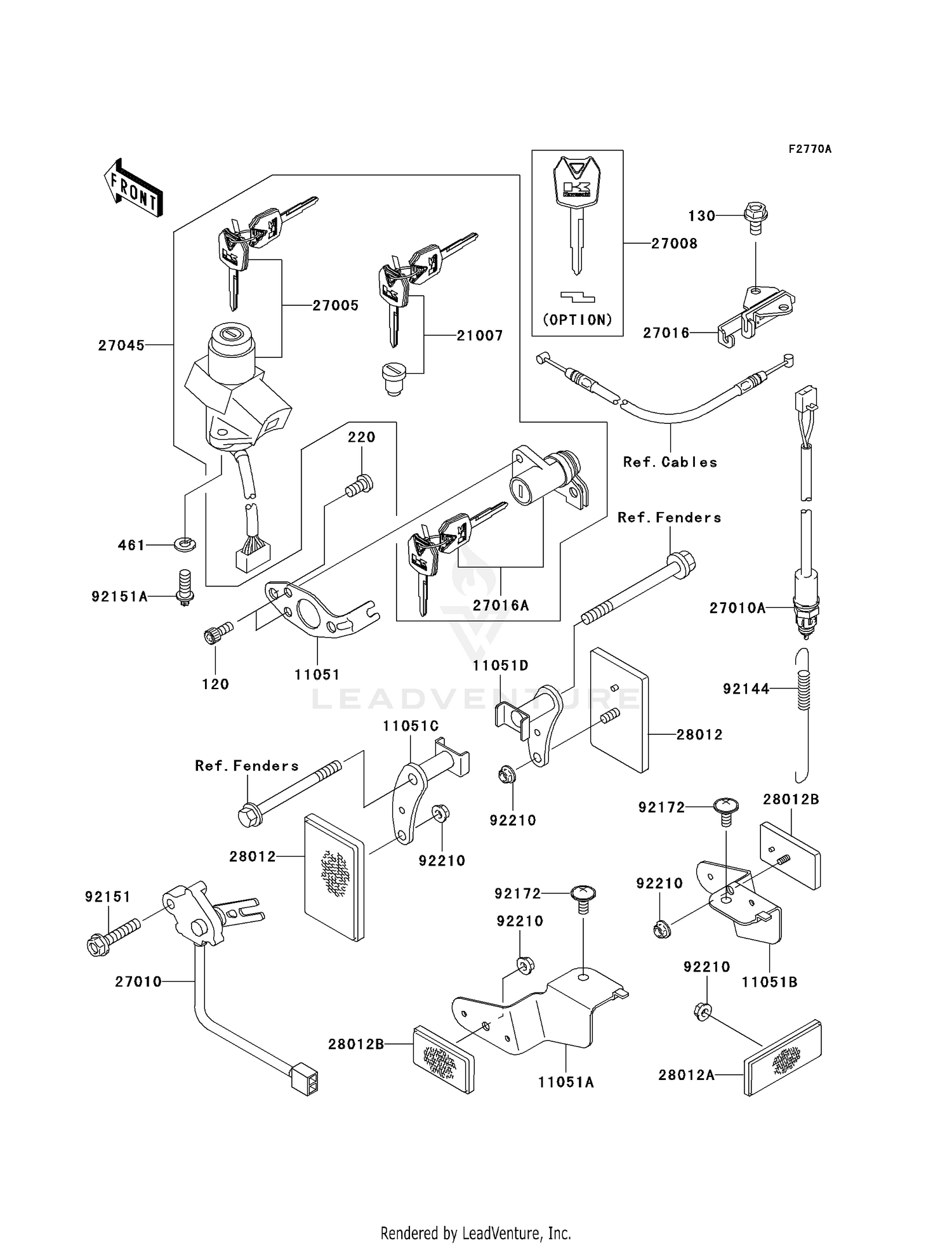

Ignition Switch/locks/reflectors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,5X12
120S0512
Superseded by 120CB0512
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X12
130J0612
Superseded by 130BB0612
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X10
220F0610
Superseded by 220AB0610
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461L0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#11051
BRACKET,SEAT LOCK
11051-1370
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#11051A
BRACKET,REFLECTOR,RR,
11051-1481
|
$19.19 | ||
|
Available to order. Add to View Price |
|||
|
#11051B
BRACKET,REFLECTOR,RR,
11051-1482
|
$17.46 | ||
|
Available to order. Add to View Price |
|||
|
#11051C
BRACKET,REFLECTOR,FR,
11051-1662
|
$28.27 | ||
|
Available to order. Add to View Price |
|||
|
#11051D
BRACKET,REFLECTOR,FR,
11051-1663
|
$28.27 | ||
|
Available to order. Add to View Price |
|||
|
#21007
ROTOR,LOCK,TANK CAP
21007-5057
|
$81.45 | ||
|
Available to order. Add to View Price |
|||
|
#27005
SWITCH-ASSY-IGNITION
27005-5130
Superseded by 27005-5139
|
$178.58 | ||
|
Available to order. Add to View Price |
|||
|
#27008
KEY-LOCK,BLANK
27008-0030
Superseded by 27008-0618
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,SIDE STAND
27010-1461
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,REAR BRAKE
27010-1479
|
$28.89 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK-ASSY,SEAT STRIKER
27016-1115
|
$27.48 | ||
|
Available to order. Add to View Price |
|||
|
#27016A
LOCK-ASSY,SEAT
27016-5309
|
$83.64 | ||
|
Available to order. Add to View Price |
|||
|
#27045
SWITCH-ASSY
27045-5231
Superseded by 27045-5356
|
$426.63 | ||
|
Available to order. Add to View Price |
|||
|
#28012
REFLECTOR-REFLEX
28012-1003
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#28012A
REFLECTOR-REFLEX
28012-1077
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#28012B
REFLECTOR-REFLEX
28012-1088
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,REAR BRAKE SWITCH
92144-1753
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,6X30
92151-1216
Superseded by 92154-1857
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,TORX,6X16
92151-1911
Superseded by 92153-0967
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X14
92172-0004
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,FLANGED,5MM
92210-0007
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
