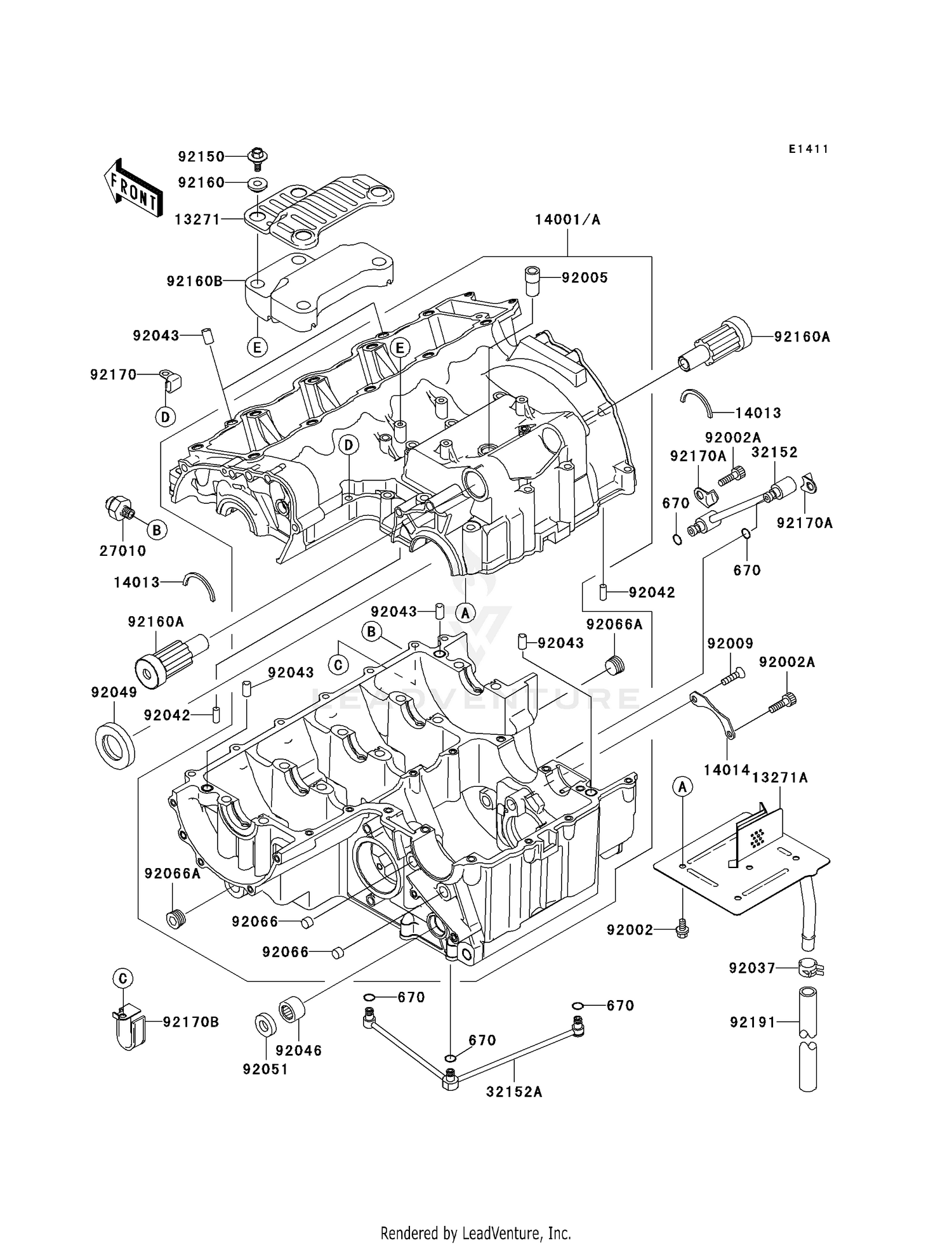

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#670
O RING
670D1505
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE
13271-1058
|
$29.20 | ||
|
Available to order. Add to View Price |
|||
|
#13271A
PLATE,BREATHER
13271-1085
Superseded by 13271-1511
|
$72.37 | ||
|
Available to order. Add to View Price |
|||
|
#14001
SET-CRANKCASE
14001-1247
|
$1,263.19 | ||
|
Available to order. Add to View Price |
|||
|
#14013
RING-POSITION
14013-1051
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#14014
PLATE-POSITION
14014-1140
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,OIL PRESSURE
27010-1313
|
$38.59 | ||
|
Available to order. Add to View Price |
|||
|
#32152
PIPE,RH,L=76.8
32152-1545
|
$30.68 | ||
|
Available to order. Add to View Price |
|||
|
#32152A
PIPE,L=137.2
32152-1546
|
$53.11 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X10
92002-1449
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,SOCKET,6X16
92002-1778
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,BREATHER
92005-1238
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X16
92009-1360
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,HOSE CLIP
92037-1181
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#92042
PIN,6X16
92042-016
Superseded by 92043-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,10X14
92043-1037
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,HK1312
92046-1148
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,TC32578
92049-1474
|
$17.78 | ||
|
Available to order. Add to View Price |
|||
|
#92051
SEAL-OIL,TB13225.5
92051-005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-1110
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG,PT3/8X10
92066-1262
Superseded by 92066-0003
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT
92150-1981
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1681
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER
92160-1868
|
$23.35 | ||
|
Available to order. Add to View Price |
|||
|
#92160B
DAMPER
92160-1925
|
$49.62 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1577
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP,OIL PIPE
92170-1578
Superseded by 92171-0227
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#92170B
CLAMP
92170-1911
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,BREATHER
92191-1167
|
$20.05 | ||
|
Available to order. Add to View Price |
|||
