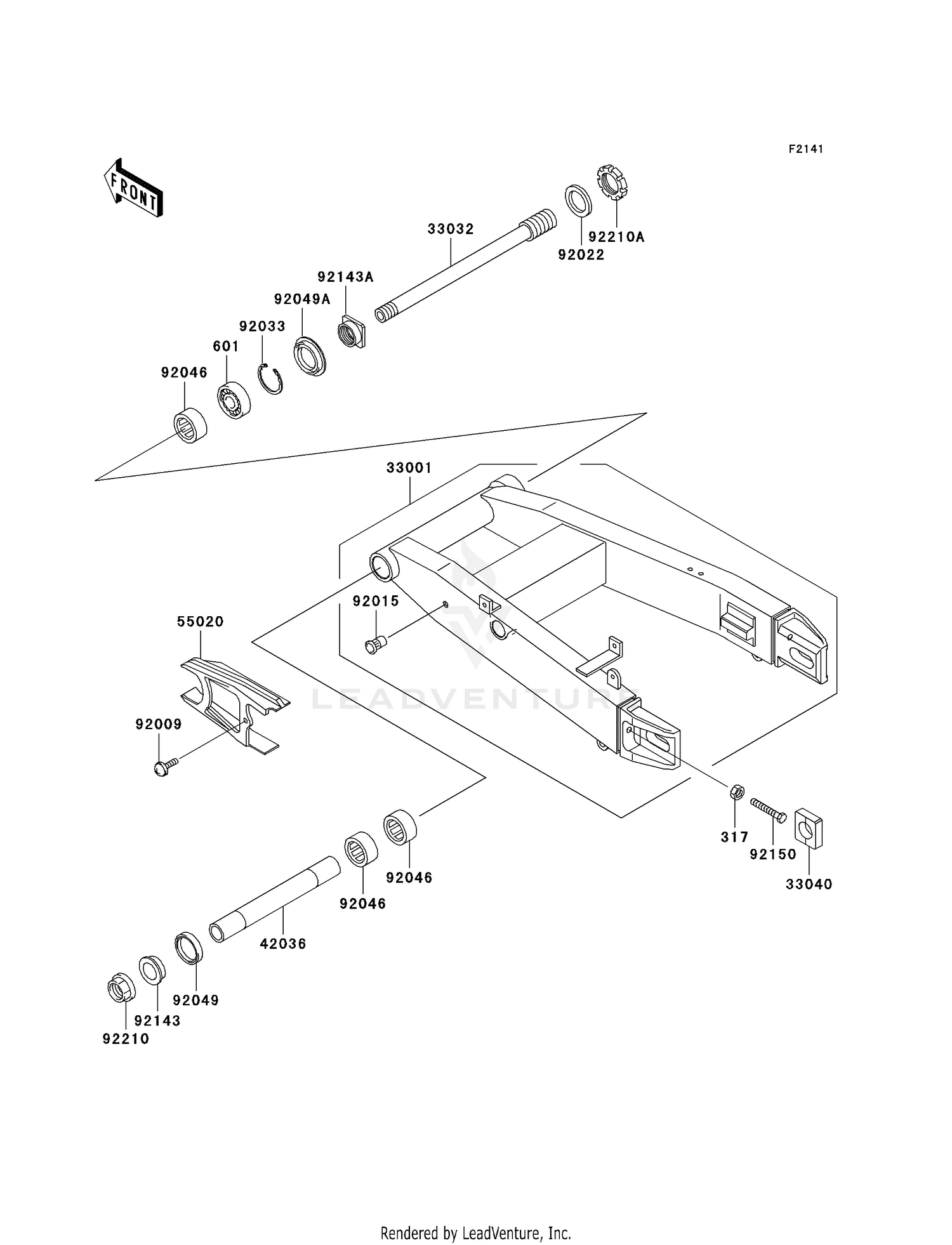

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#317
NUT-HEX-SMALL,8MM
317G0800
Superseded by 317BA0800
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6004
601A6004
Superseded by 92045-0076
|
$15.55 | ||
|
Available to order. Add to View Price |
|||
|
#33001
ARM-COMP-SWING,SILVER
33001-1541-TX
|
$890.43 | ||
|
Available to order. Add to View Price |
|||
|
#33032
SHAFT-SWING ARM
33032-1187
|
$121.53 | ||
|
Available to order. Add to View Price |
|||
|
#33040
ADJUSTER-CHAIN
33040-1109
|
$18.96 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,SWING ARM PIVOT,L=226
42036-1341
|
$66.22 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,CHAIN
55020-1664
|
$63.64 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X18
92009-1663
Superseded by 92009-3805
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,POP,6MM,L=16.5
92015-1792
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,28.3X42X2.9
92022-1219
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,42MM
92033-1041
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,BM2817
92046-1111
|
$21.08 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,MHSA25X34X7
92049-1352
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,MHA 35 42 5.7F
92049-1380
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,SWING ARM,L=12.5
92143-1227
Superseded by 92152-1234
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR,SWING ARM PIVO
92143-1973
|
$33.95 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,8X55
92150-1350
Superseded by 92153-1407
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-1133
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT
92210-1140
|
$14.46 | ||
|
Available to order. Add to View Price |
|||
