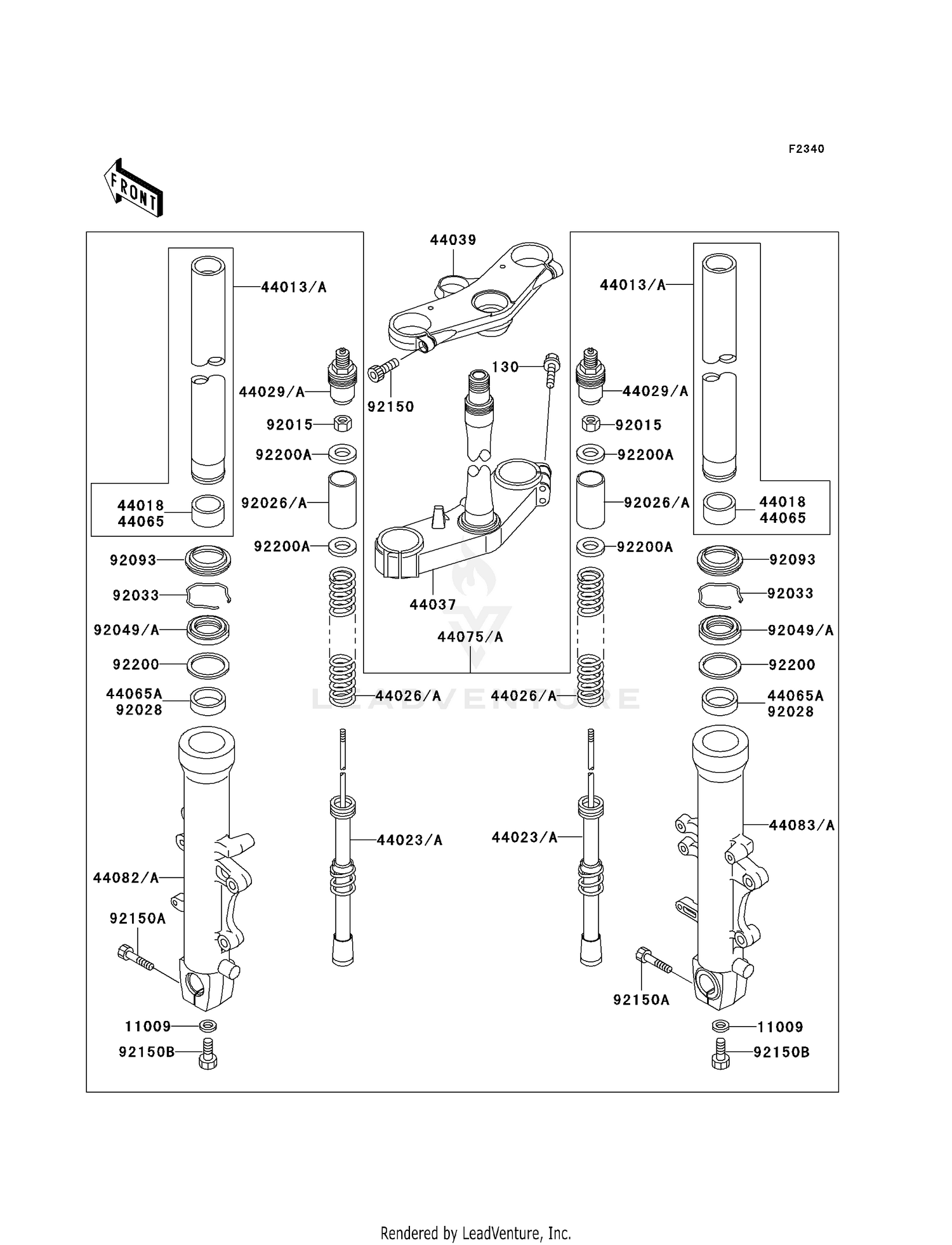

Front Fork (-jkazx2c1 Xa031068) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,8X40
130J0840
Superseded by 130BB0840
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,FORK CYLINDER BOLT
11009-1127
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1453
|
$376.48 | ||
|
Available to order. Add to View Price |
|||
|
#44018
PISTON-FORK
44018-1061
|
$36.58 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK
44023-1127
|
$315.56 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1679
|
$80.26 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1164
|
$105.94 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1365
|
$549.88 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1277
|
$281.20 | ||
|
Available to order. Add to View Price |
|||
|
#44075
DAMPER-SET-FORK
44075-1075
|
$1,338.37 | ||
|
Available to order. Add to View Price |
|||
|
#44082
PIPE-COMP-LEFT FORK O
44082-1055
|
$415.37 | ||
|
Available to order. Add to View Price |
|||
|
#44083
PIPE-COMP-RIGHT FORK
44083-1054
|
$415.37 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1905
|
$18.94 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK,L=100
92026-1516
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1875
|
$25.24 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1264
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER T
92049-1495
|
$24.81 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1473
|
$21.48 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT-SOCKET,8X25
92150-1172
Superseded by 120CA0825
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT-SOCKET,8X40
92150-1194
Superseded by 120CA0840
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92150B
BOLT,12X22
92150-1398
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1006
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-1420
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
