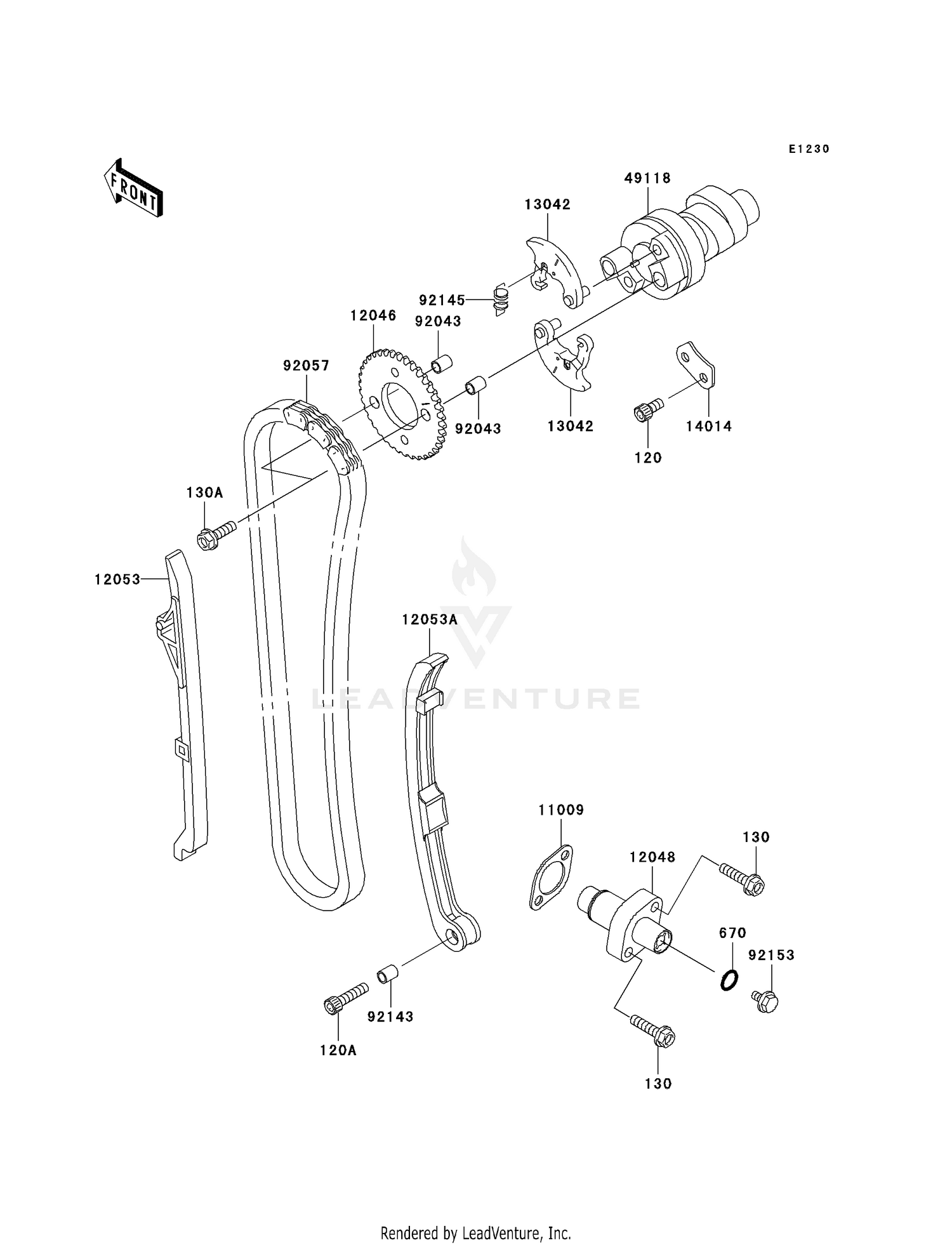

Camshaft(s)/tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,6X12
120CA0612
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#120A
BOLT-SOCKET,6X25
120CA0625
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X25
130BB0625
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X20
130CD0620
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,10MM
670D2010
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,TENSIONER
11009-1858
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#12046
SPROCKET
12046-1225
|
$58.18 | ||
|
Available to order. Add to View Price |
|||
|
#12048
TENSIONER-ASSY
12048-1193
|
$140.29 | ||
|
Available to order. Add to View Price |
|||
|
#12053
GUIDE-CHAIN,FR
12053-1423
|
$45.74 | ||
|
Available to order. Add to View Price |
|||
|
#12053A
GUIDE-CHAIN,TENSIONER
12053-1451
|
$67.16 | ||
|
Available to order. Add to View Price |
|||
|
#13042
WEIGHT,DECOMP
13042-1149
|
$41.11 | ||
|
Available to order. Add to View Price |
|||
|
#14014
PLATE-POSITION
14014-1095
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#49118
CAMSHAFT-COMP
49118-1217
|
$253.61 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,8X10
92043-1302
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,CAMSHAFT,82RH20
92057-1256
|
$124.44 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,6X8X10.2
92143-1253
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,DECOMP
92145-1495
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X6
92153-1380
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
