2007 Kawasaki PRAIRIE 360 Chassis Electrical Equipment OEM Parts

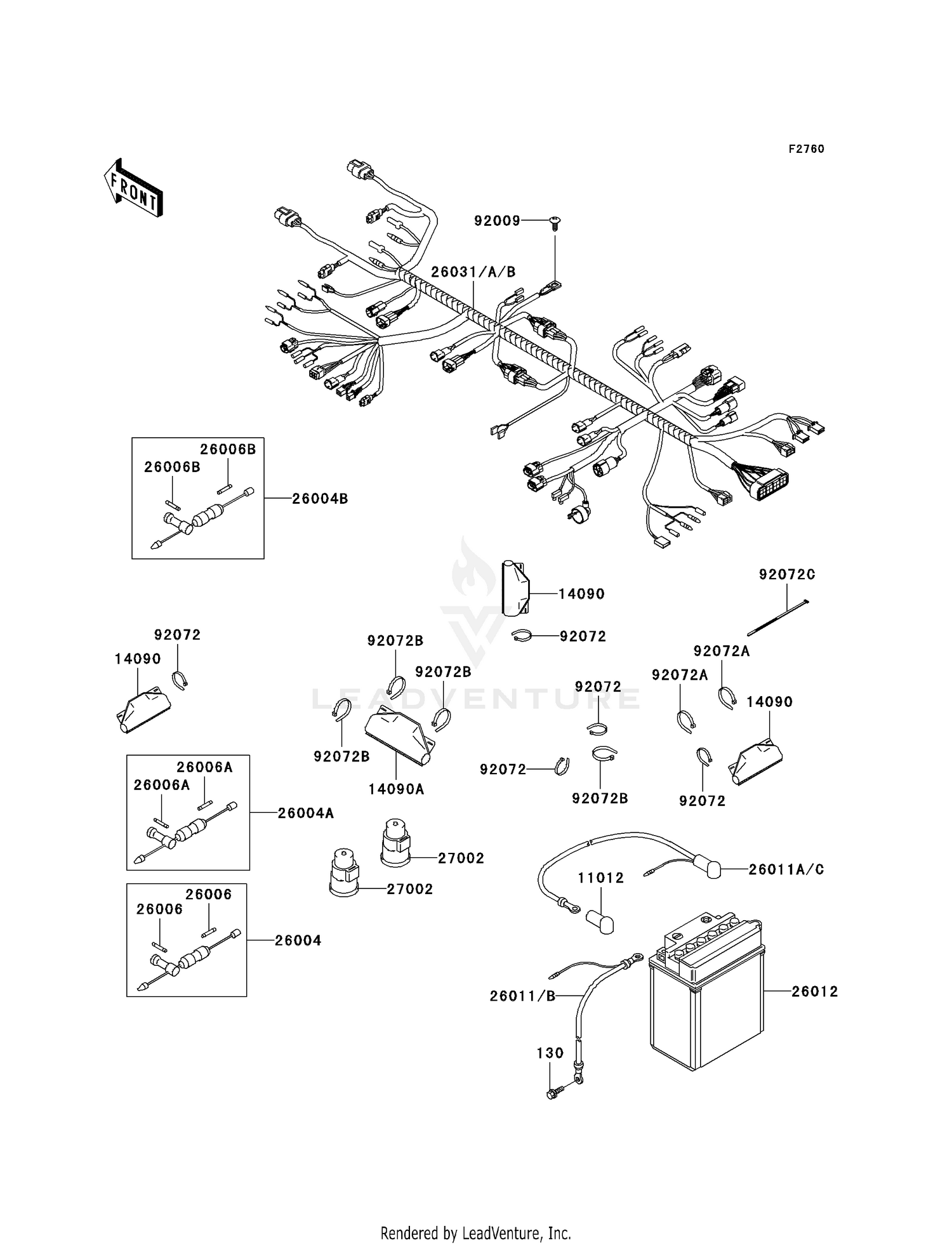

Chassis Electrical Equipment Diagram

Item	MSRP	Qty
#130 BOLT-FLANGED,6X12 130AA0612	$0.67
Available to order. Add to View Price
#11012 CAP,TERMINAL 11012-1354	$9.83
Available to order. Add to View Price
#14090 COVER,COUPLER 14090-1331	$8.21
Available to order. Add to View Price
#14090A COVER,COUPLER 14090-1611	$8.21
Available to order. Add to View Price
#26004 FUSE-ASSY 26004-0005	$52.75
Available to order. Add to View Price
#26004A FUSE-ASSY 26004-1127	$52.75
Available to order. Add to View Price
#26004B FUSE-ASSY 26004-7501	$52.75
Available to order. Add to View Price
#26006 FUSE,GLASS TUBE,6.4X30,10 26006-0003	$5.56
Available to order. Add to View Price
#26006A FUSE,30A,L=30 26006-1059	$4.80
Available to order. Add to View Price
#26006B FUSE,GLASS TUBE,6.4X31.8, 26006-1064	$5.68
Available to order. Add to View Price
#26011 WIRE-LEAD,BATTERY(-) 26011-0139	$24.44
Available to order. Add to View Price
#26011A WIRE-LEAD,BATTERY(+) 26011-0140	$24.44
Available to order. Add to View Price
#26012 BATTERY,YB14A-A2,12V 14AH 26012-0006 Superseded by 26012-1549	$101.23
Unavailable
#26031A HARNESS,MAIN 26031-0403 Superseded by 26031-0527	$402.98
Available to order. Add to View Price
#27002 RELAY-ASSY 27002-1095	$56.53
Available to order. Add to View Price
#92009 SCREW,TAPPING,6X16 92009-1166	$5.34
Available to order. Add to View Price
#92072 BAND,L=123 92072-030	$4.84
Available to order. Add to View Price
#92072A BAND,L=149 92072-031	$4.84
Available to order. Add to View Price
#92072B BAND,L=186 92072-056	$4.84
Available to order. Add to View Price
#92072C BAND,L=188 92072-1239	$1.69
Available to order. Add to View Price
