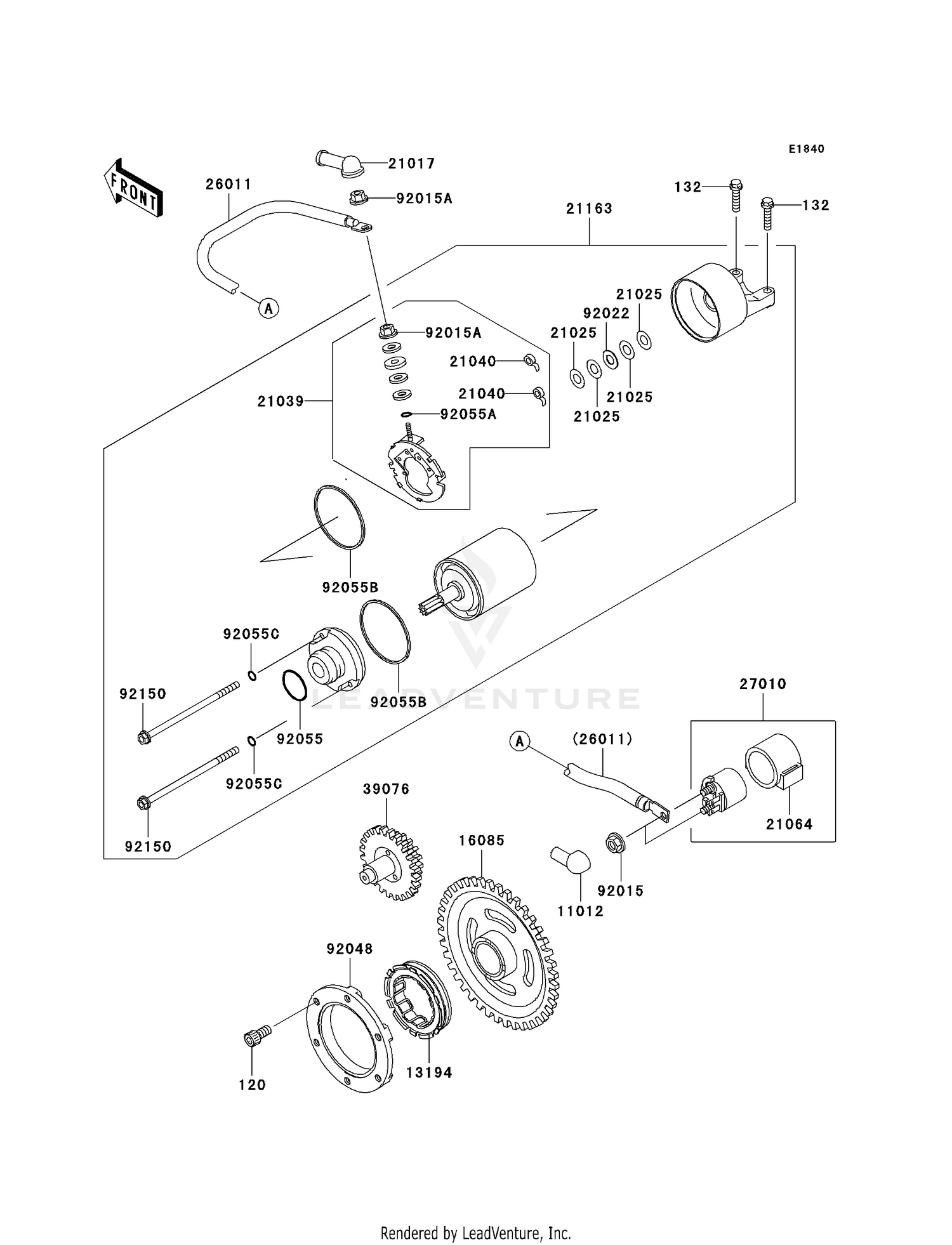

Starter Motor (b6f/b8f) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,8X16
120CA0816
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X25
132BD0625
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,TERMINAL
11012-1354
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#13194
CLUTCH-ONEWAY
13194-1094
|
$120.85 | ||
|
Available to order. Add to View Price |
|||
|
#16085
GEAR,STARTER
16085-1346
|
$117.44 | ||
|
Available to order. Add to View Price |
|||
|
#21017
GROMMET,STARTER TERMINAL
21017-017
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#21025
WASHER,9.1X18X0.2
21025-011
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#21039
BRUSH
21039-1066
|
$30.85 | ||
|
Available to order. Add to View Price |
|||
|
#21040
SPRING-BRUSH
21040-1057
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#21064
DAMPER,MAGNETIC SWITCH
21064-002
Superseded by 92161-1722
|
$18.94 | ||
|
Available to order. Add to View Price |
|||
|
#21163
STARTER-ELECTRIC
21163-1328
|
$563.74 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD,STARTER MOT
26011-1709
|
$47.17 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,MAGNETIC
27010-1098
Superseded by 27010-0766
|
$122.37 | ||
|
Available to order. Add to View Price |
|||
|
#39076
LIMITER,STARTER
39076-1066
|
$144.23 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,STARTER MOTOR
92015-1476
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,9.1X18X0.8
92022-1132
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92048
RACE,ONE WAY CLUTCH
92048-0002
|
$104.35 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1276
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,4.5X2.0
92055-1370
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O
92055-1550
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O
92055-1551
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,FLANGED,4X80
92150-1969
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
