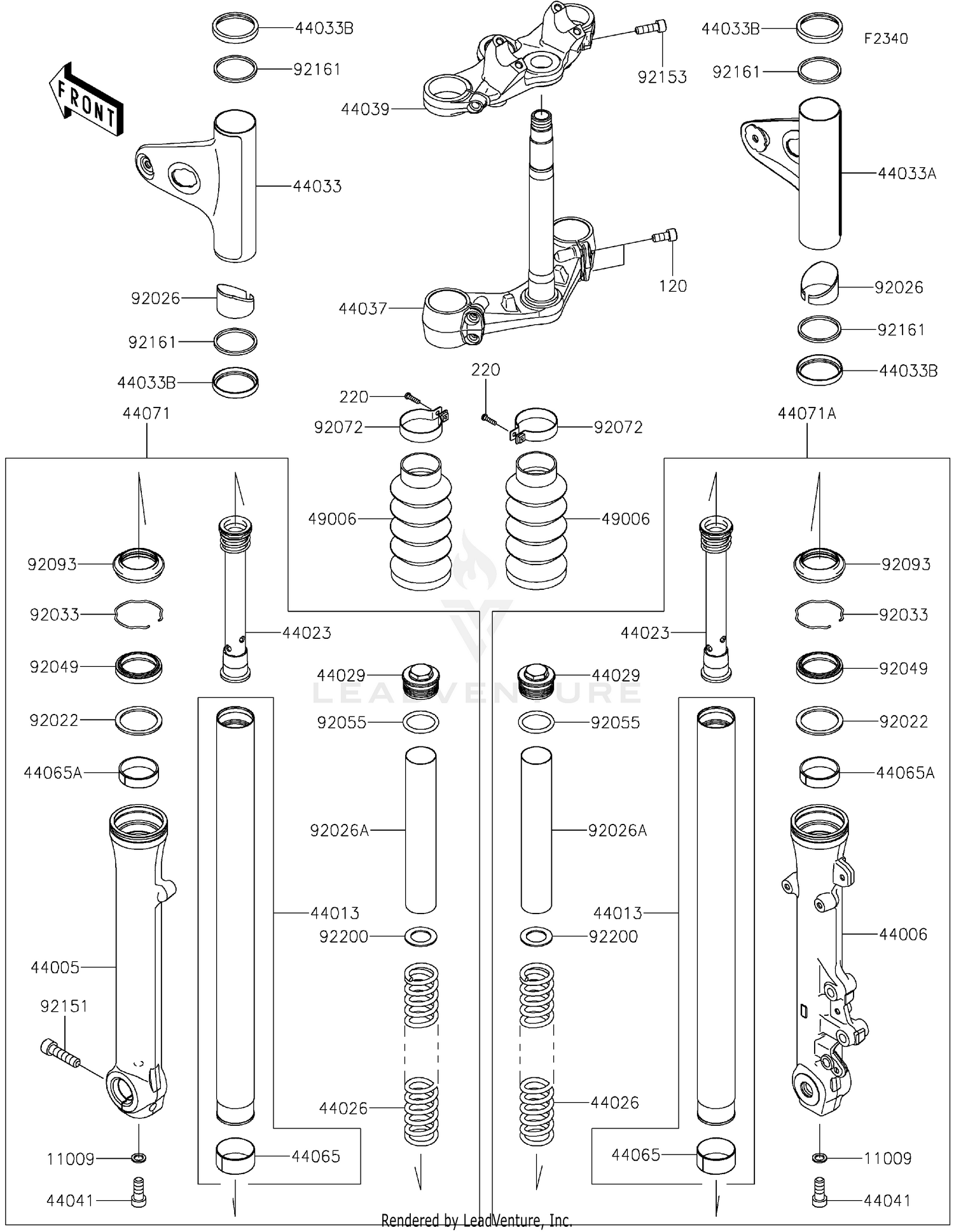

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER
11009-1325
Superseded by 44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER
44005-0122
|
$412.90 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-0123
|
$412.90 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-0351
|
$112.92 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK
44023-0154
|
$119.83 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-0237
|
$66.04 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-0005
|
$42.90 | ||
|
Available to order. Add to View Price |
|||
|
#44033
COVER-FORK,LH,M.F.S.BLACK
44033-0077-739
|
$95.73 | ||
|
Available to order. Add to View Price |
|||
|
#44033A
COVER-FORK,RH,M.F.S.BLACK
44033-0078-739
|
$95.73 | ||
|
Available to order. Add to View Price |
|||
|
#44033B
COVER-FORK
44033-0079
|
$21.44 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-0184
|
$361.42 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-0188
|
$264.15 | ||
|
Available to order. Add to View Price |
|||
|
#44041
BOLT,SOCKET,FORK CYLINDER
44041-040
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK,INNER TUBE
44065-0014
|
$28.42 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK,OUTER TUBE
44065-1115
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#44071
DAMPER-ASSY,LH
44071-1347
|
$698.38 | ||
|
Available to order. Add to View Price |
|||
|
#44071A
DAMPER-ASSY,RH
44071-1394
|
$698.38 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,FORK
49006-0611
|
$71.65 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,FORK OUTER TUBE
92022-1298
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK COVER
92026-1432
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER,FORK,L=200
92026-1455
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1036
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-0073
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1321
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,BOOT
92072-1077
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1472
|
$22.92 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,10X40
92151-1357
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,8X25
92153-1625
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-2162
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1467
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,8X18
120CC0818
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X16
220AB0416
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
