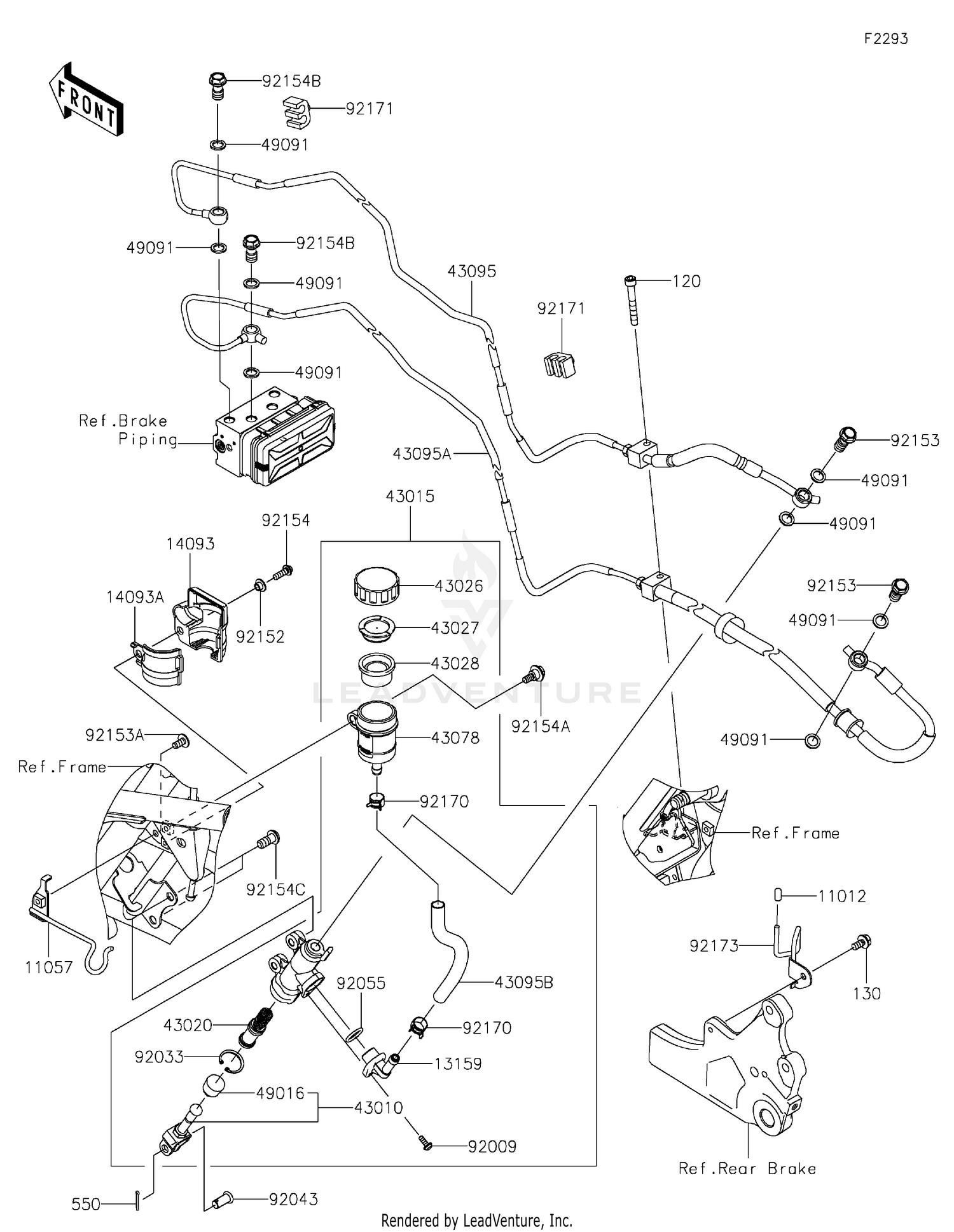

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP
11012-1438
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#11057
BRACKET,RR M/CYLINDER HOSE
11057-2781
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR
13159-0030
|
$7.45 | ||
|
Available to order. Add to View Price |
|||
|
#14093
COVER,RR RESERVOIR,OUTER
14093-0653
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#14093A
COVER,RR RESERVOIR,INNER
14093-0654
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#43010
ROD-ASSY-BRAKE
43010-0027
|
$54.23 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,RR
43015-0719
|
$361.13 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE,RR
43020-1067
|
$63.88 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-0009
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-1053
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1065
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-0060
|
$31.22 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,HU-RR M/CYLINDER
43095-1617
|
$185.22 | ||
|
Available to order. Add to View Price |
|||
|
#43095A
HOSE-BRAKE,HU-RR CALIPER
43095-1618
|
$215.48 | ||
|
Available to order. Add to View Price |
|||
|
#43095B
HOSE-BRAKE
43095-1692
|
$12.08 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,BRAKE PISTON
49016-1103
|
$12.89 | ||
|
Available to order. Add to View Price |
|||
|
#49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1570
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,20.9X24.6X1.2
92033-0079
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8X17
92043-0104
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,14.8X2.4
92055-0741
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,5.3X7.3X5.3
92152-2190
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,OIL,L=23
92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,6X12
92153-1617
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,5X16
92154-0209
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,FLANGED,6X16
92154-0385
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#92154B
BOLT,BANJO,10X19
92154-1554
|
$22.69 | ||
|
Available to order. Add to View Price |
|||
|
#92154C
BOLT,SOCKET,8X18
92154-3919
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,HOSE
92170-1091
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0818
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP,BRAKE HOSE
92173-1933
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X45
120CB0645
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X12
130BB0612
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
