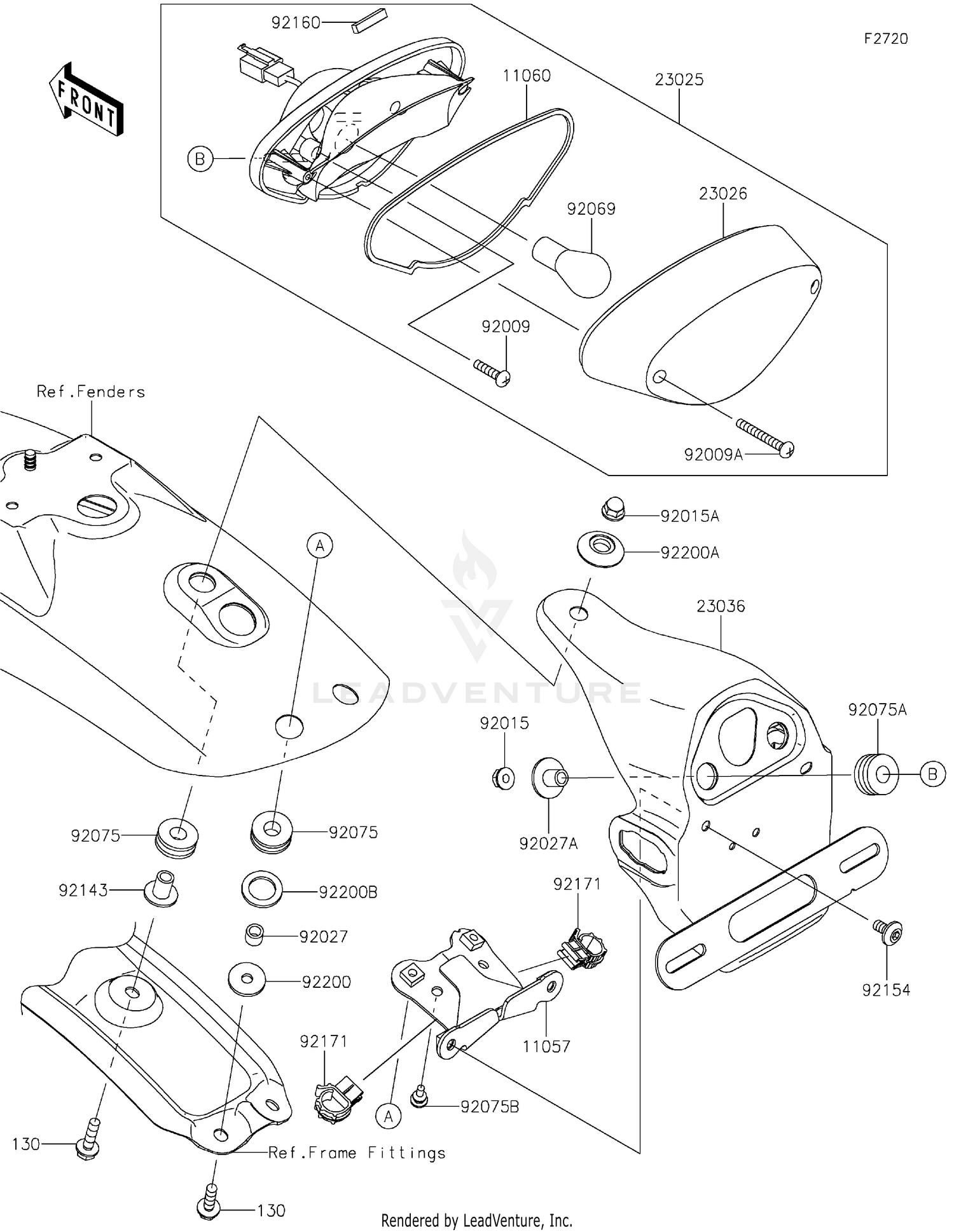

Taillight(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11057
BRACKET
11057-2629
|
$28.42 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,TAIL LAMP LENS
11060-1901
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#23025
LAMP-TAIL
23025-0388
|
$282.50 | ||
|
Available to order. Add to View Price |
|||
|
#23026
LENS,TAIL LAMP
23026-1222
Superseded by 23026-0033
|
$43.47 | ||
|
Available to order. Add to View Price |
|||
|
#23036
BRACKET-TAIL LAMP
23036-0027
|
$71.43 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X12
92009-1381
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,4X35
92009-1687
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CAP,6MM
92015-1385
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,6.8X10X8.5
92027-129
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,L=13.1,BLACK
92027-1450
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 21/5W
92069-063
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1185
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,10X24X12
92075-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,6X10X15
92075-1808
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,L=15.6
92143-1041
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,6X12
92154-2706
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1998
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,EDGE CLIP
92171-1722
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6.5X22X2.3
92200-0271
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-1153
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER,16X24X2.3
92200-2213
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X22
130BA0622
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
