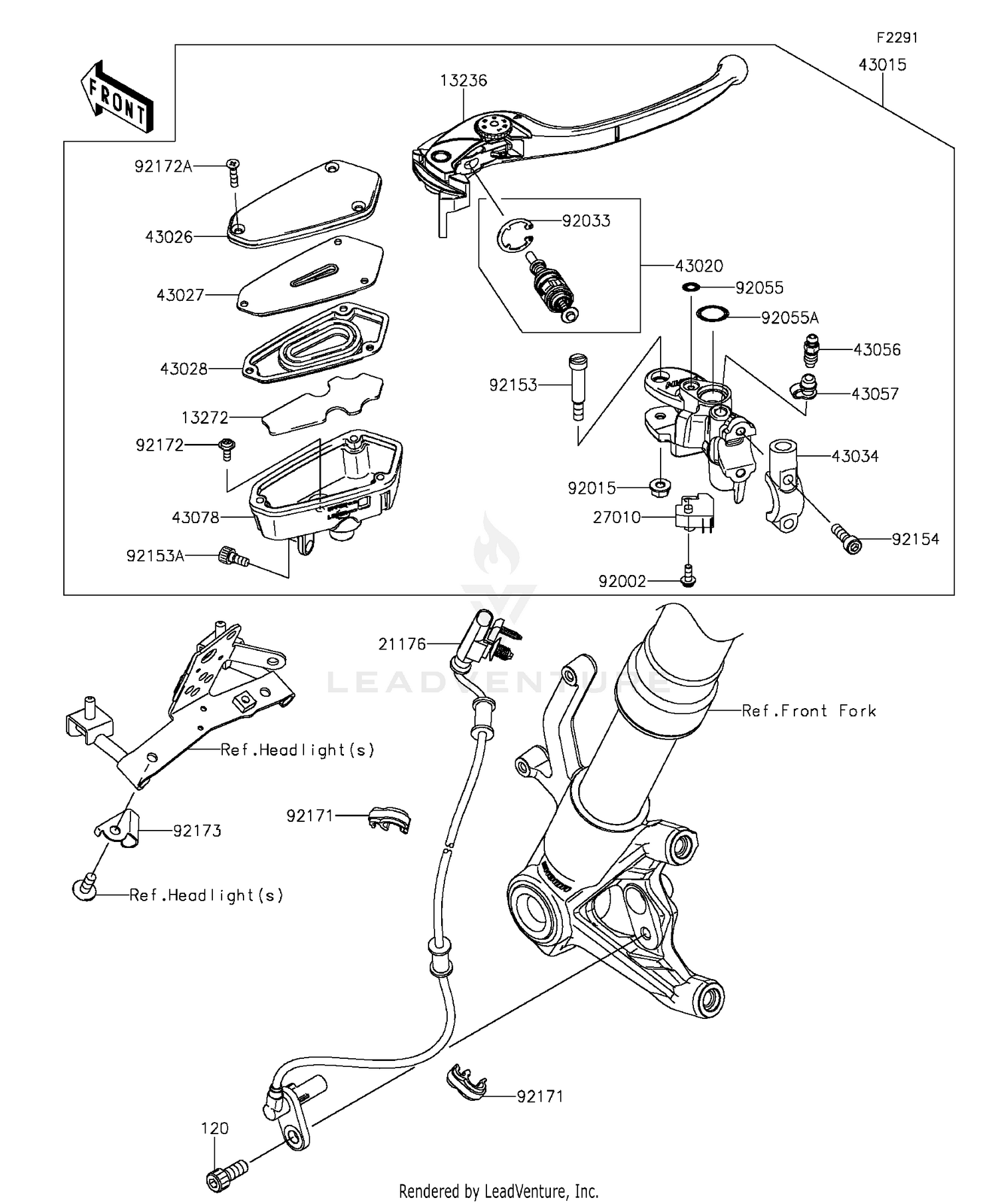

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,8X20
120CB0820
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP
13236-0729
|
$70.15 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE
13272-1719
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR,SPEED
21176-0758
|
$105.62 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-0025
Superseded by 27010-1170
|
$28.14 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-0590
|
$466.49 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-0020
|
$63.60 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-0011
|
$71.69 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-0003
|
$8.06 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-0008
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE,MASTER CYLINDER
43034-0057
|
$23.14 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BREATHER-BRAKE
43056-1056
|
$13.79 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-1001
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-0569
|
$163.80 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SCREW,4X12
92002-1323
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1528
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-0034
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0137
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,14.8X2.4
92055-0741
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,LEVER
92153-0868
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,6X12
92153-1853
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,6X22
92154-1271
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,BRAKE HOSE
92171-1819
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-0319
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW,4X20
92172-0855
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP,SPEED SENSOR
92173-1112
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
