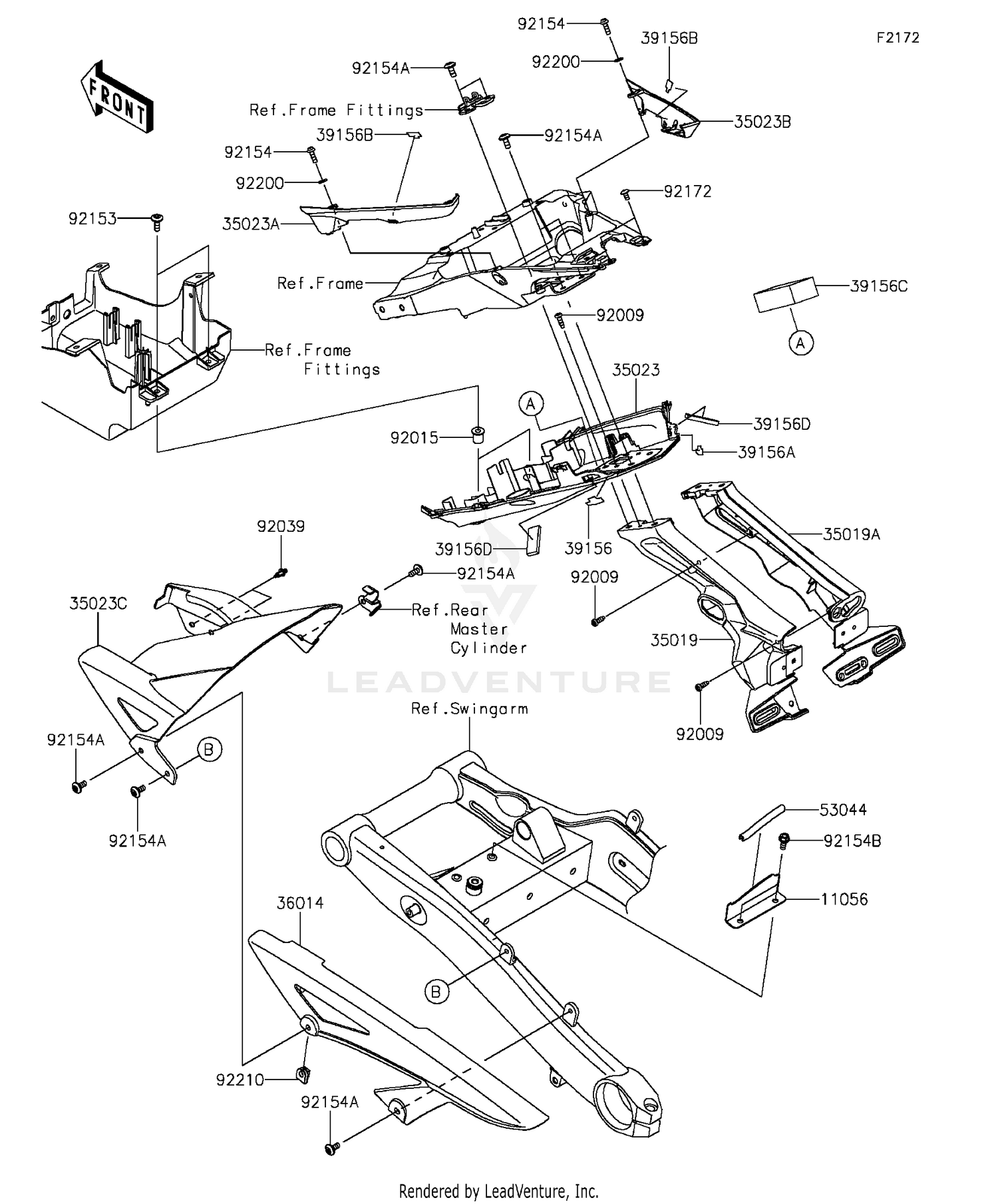

Rear Fender(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11056
BRACKET
11056-2656
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#35019
FLAP,LH
35019-0580
Superseded by 35019-0635
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#35019A
FLAP,RH
35019-0581
Superseded by 35019-0636
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#35023
FENDER-REAR,CNT
35023-0378
|
$83.29 | ||
|
Available to order. Add to View Price |
|||
|
#35023A
FENDER-REAR,LH
35023-0379
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#35023B
FENDER-REAR,RH
35023-0380
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#35023C
FENDER-REAR,INNER
35023-0381
|
$46.08 | ||
|
Available to order. Add to View Price |
|||
|
#36014
CASE-CHAIN
36014-0029
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,RR FENDER,RR,LH
39156-1786
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD,RR FENDER,RR,RH
39156-1787
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#39156B
PAD,RR FENDER LH&RH
39156-1788
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#39156C
PAD,40X80X25
39156-1808
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#39156D
PAD,RR FENDER,42X15X5
39156-1812
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM
53044-0018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,5X16
92009-1984
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1700
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-0060
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X18
92153-0816
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,5X16
92154-0209
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,SOCKET,6X14
92154-0745
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#92154B
BOLT,FLANGED,6X16
92154-0899
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,TAPPING,5X10
92172-0262
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,NYLONE,5.3X11.5X0.5
92200-0006
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,6MM
92210-0277
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
