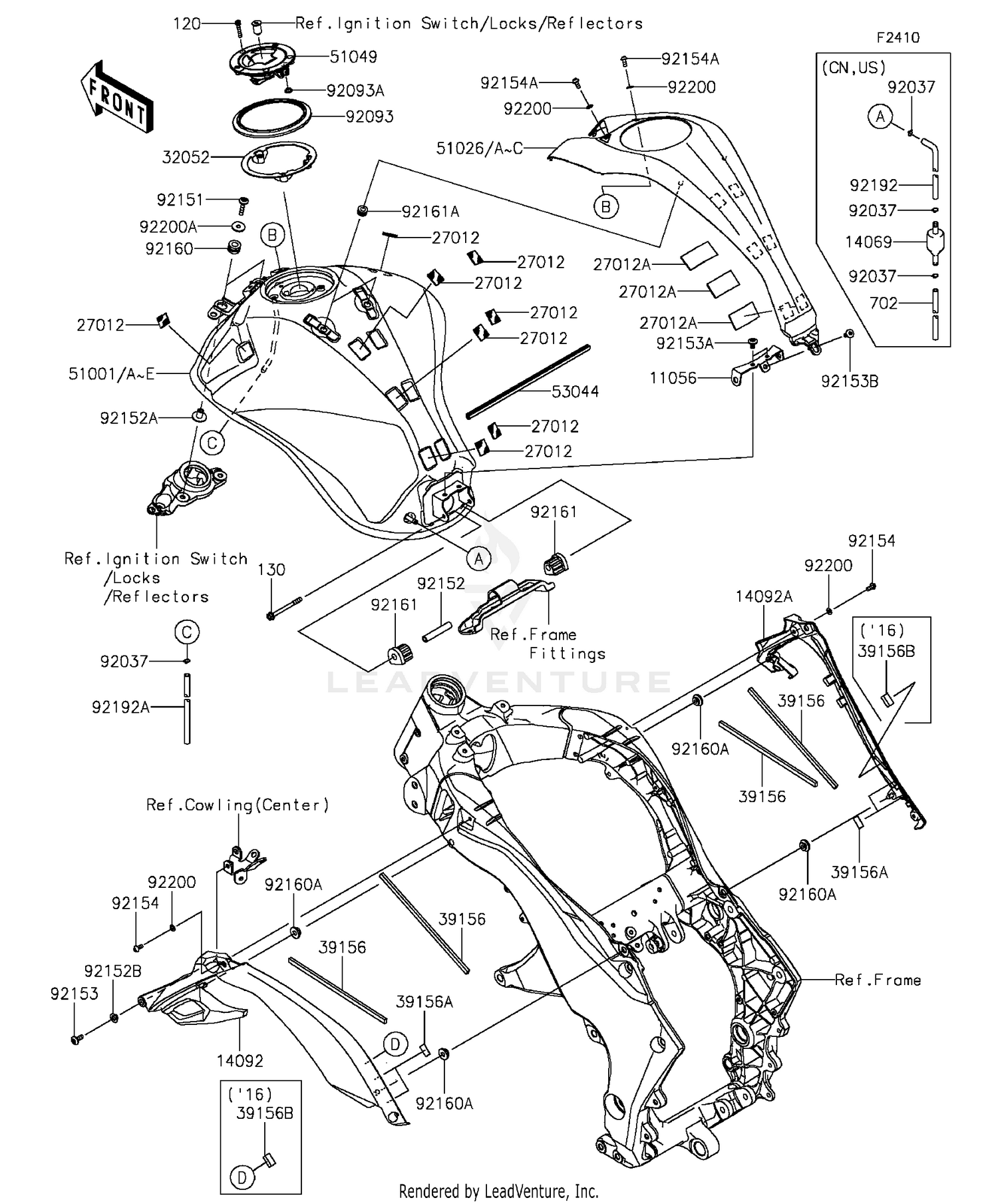

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11056
BRACKET
11056-3839
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#14069
BREATHER,TANK
14069-0008
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER,KNEE GRIP,LH
14092-1128
|
$73.18 | ||
|
Available to order. Add to View Price |
|||
|
#14092A
COVER,KNEE GRIP,RH
14092-1129
|
$73.18 | ||
|
Available to order. Add to View Price |
|||
|
#27012
HOOK
27012-0171
|
$5.72 | ||
|
Available to order. Add to View Price |
|||
|
#27012A
HOOK,FASTENER,28X57
27012-0764
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#32052
BRACKET-TANK
32052-0744
|
$48.15 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD
39156-0563
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD,15X20X0.2
39156-1784
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#39156B
PAD,20X8X10
39156-1968
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#51001C
TANK-COMP-FUEL,M.M.C.GRAY
51001-0791-51B
|
|||
|
Unavailable |
|||
|
#51001D
TANK-COMP-FUEL,M.M.G.
51001-0791-53U
|
$1,202.43 | ||
|
Available to order. Add to View Price |
|||
|
#51026
COVER TANK,G.B.GREEN
51026-0010-40R
|
$205.80 | ||
|
Available to order. Add to View Price |
|||
|
#51026B
COVER TANK,C.C.RED
51026-0010-53R
|
|||
|
Unavailable |
|||
|
#51049
CAP-TANK,FUEL
51049-0039
Superseded by 51049-0744
|
$130.51 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM
53044-1296
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Unavailable |
|||
|
#92093
SEAL,TANK CAP
92093-0604
|
$51.44 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,6X30
92151-1605
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,6.8X10X60
92152-1182
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR
92152-1603
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#92152B
COLLAR,6.5X10X5.3
92152-1863
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6X16
92153-1526
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,6X12
92153-1948
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,6MM
92153-1956
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,5X25
120CC0525
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X70
130BB0670
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,6X9X300
702A06300
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,5X12
92154-0917
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,SOCKET,5X12
92154-1421
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,10X20X12
92160-1167
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER
92160-1613
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,FUEL TANK,RR
92161-1330
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,8.2X16X8.3
92161-1584
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,BREATHER
92192-0798
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92192A
TUBE,6X9X926(30)
92192-1024
|
$23.19 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,NYLONE,5.3X11.5X0.5
92200-0006
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,6.5X22X1.6
92200-1087
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
