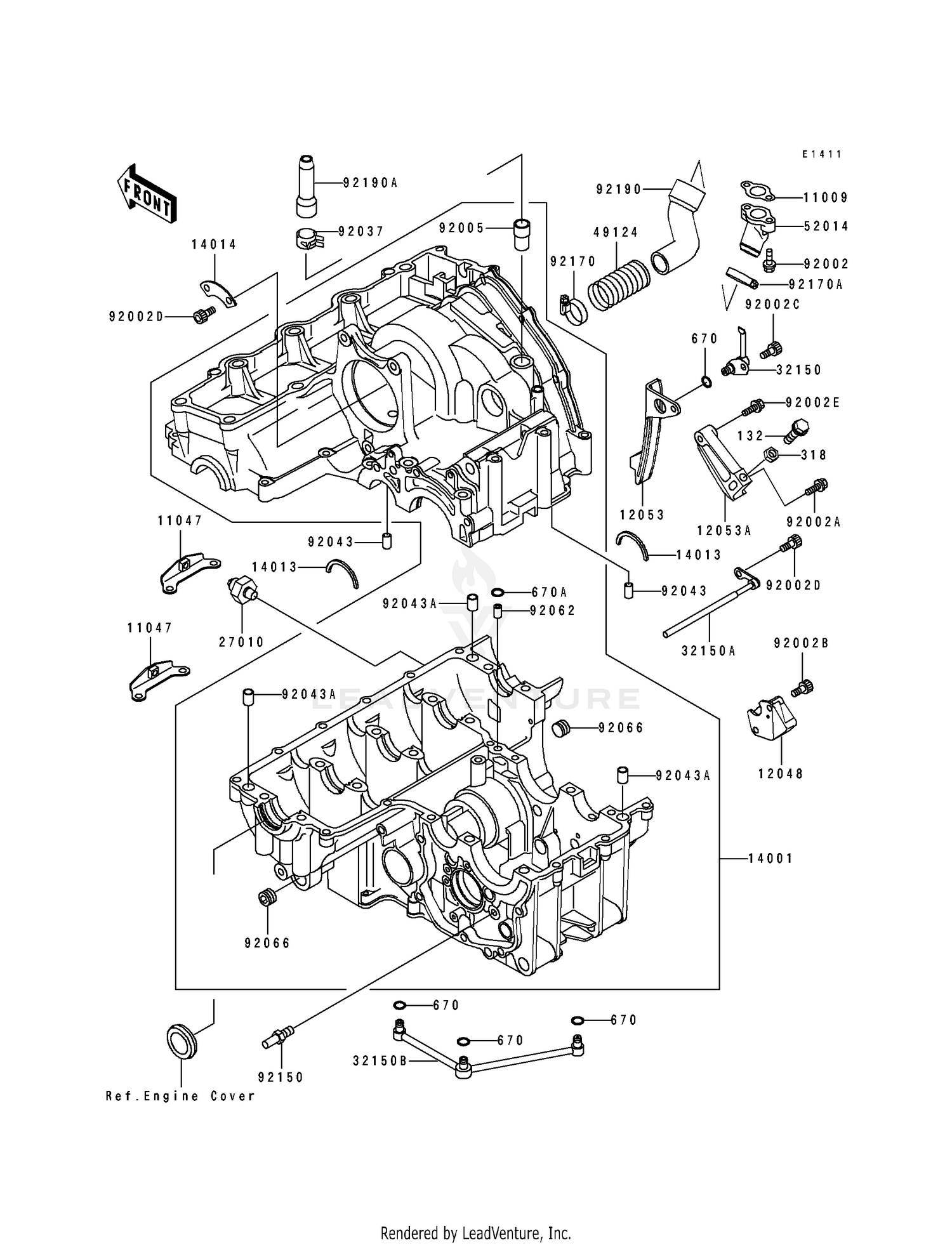

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,ELBOW
11009-1935
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#11047
BRACKET,RADIATOR
11047-1236
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#12048
TENSIONER-ASSY
12048-1109
|
$145.83 | ||
|
Available to order. Add to View Price |
|||
|
#12053
GUIDE-CHAIN
12053-1281
|
$66.11 | ||
|
Available to order. Add to View Price |
|||
|
#12053A
GUIDE-CHAIN
12053-1285
|
$66.11 | ||
|
Available to order. Add to View Price |
|||
|
#14001
SET-CRANKCASE
14001-1078
Superseded by 14001-1100
|
$1,684.93 | ||
|
Available to order. Add to View Price |
|||
|
#14013
RING-POSITION,T=1.98
14013-1004
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#14014
PLATE-POSITION
14014-1056
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,OIL PRESSURE
27010-1155
Superseded by 27010-1313
|
$38.59 | ||
|
Available to order. Add to View Price |
|||
|
#32150
PIPE
32150-1794
|
$26.19 | ||
|
Available to order. Add to View Price |
|||
|
#32150A
PIPE
32150-1795
|
$62.98 | ||
|
Available to order. Add to View Price |
|||
|
#32150B
PIPE
32150-1796
|
$66.11 | ||
|
Available to order. Add to View Price |
|||
|
#49124
SPRING-TUBE GUARD
49124-1056
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#52014
ELBOW
52014-1069
Superseded by 52014-1077
|
$35.63 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X20
92002-1343
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,6X25
92002-1582
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,SOCKET,6X25
92002-1696
Superseded by 92154-0477
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#92002C
BOLT,SOCKET,6X16
92002-1778
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92002D
BOLT,SOCKET,6X12
92002-1796
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92002E
BOLT,6X30
92002-1797
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,BREATHER
92005-1129
|
$20.06 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1730
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,6X16
92042-016
Superseded by 92043-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,DOWEL,10X14
92043-1037
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#92062
NOZZLE
92062-1074
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PT3/8X10
92066-1262
Superseded by 92066-0003
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,RETURN SPRING
92150-1467
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,COOLING HOSE
92170-1033
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP
92170-1286
Superseded by 92171-0261
|
$16.26 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE
92190-1244
|
$52.37 | ||
|
Available to order. Add to View Price |
|||
|
#92190A
TUBE,BREATHER
92190-1245
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,8X20
132G0820
Superseded by 132BA0820
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#318
NUT-HEX-SMALL,8MM
318B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING
670D1505
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#670A
O RING,8MM
670D1508
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
