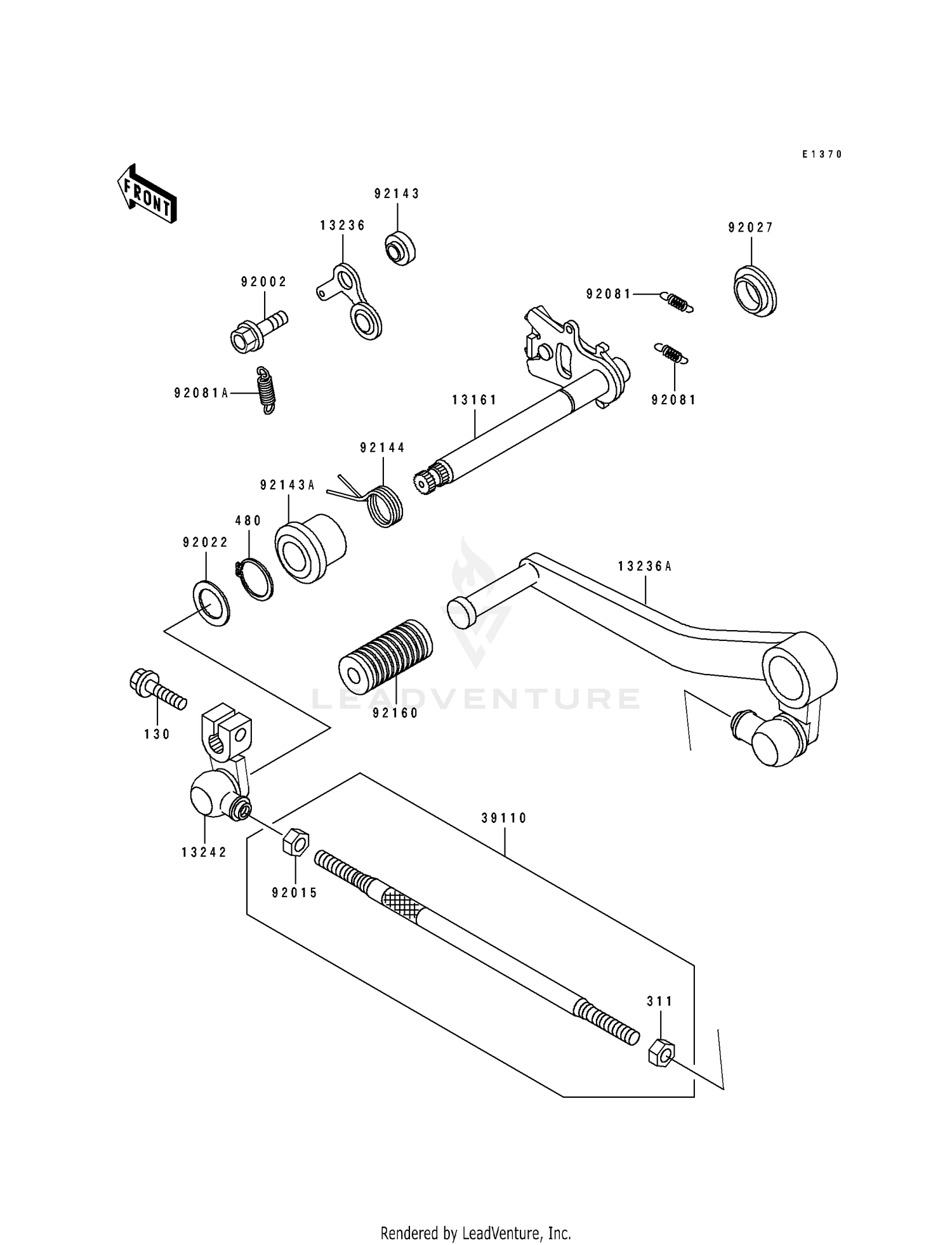

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13161
LEVER-COMP-CHANGE SHA
13161-1182
Superseded by 13161-1193
|
$88.70 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,POSITION
13236-1189
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#13236A
LEVER-COMP,CHANGE PEDAL
13236-1204
|
$62.75 | ||
|
Available to order. Add to View Price |
|||
|
#13242
LEVER-ASSY-CHANGE,LINK
13242-1278
|
$50.28 | ||
|
Available to order. Add to View Price |
|||
|
#39110
ROD-ASSY-TIE
39110-1097
Superseded by 39110-1105
|
$31.50 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED-SMALL,6X16
92002-1571
Superseded by 92154-1893
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LEFT HANDED,6MM
92015-1125
Superseded by 92015-1178
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,13.3X20X1
92022-1496
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,CHANGE SHAFT,L
92027-1512
|
$12.36 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CHANGE LEVER
92081-076
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,CHANGE DRUM LEVER
92083-012
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1055
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR,RETURN SPRING
92143-1498
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,CHANGE SHAFT RETURN
92144-1628
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,CHANGE PEDAL
92160-1036
Superseded by 92161-2382
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X20
130S0620
Superseded by 130CB0620
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311G0600
Superseded by 311BA0600
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,13MM
480J1300
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
