1991 Kawasaki ZX750K1 ZX-7R Fuel Tank OEM Parts

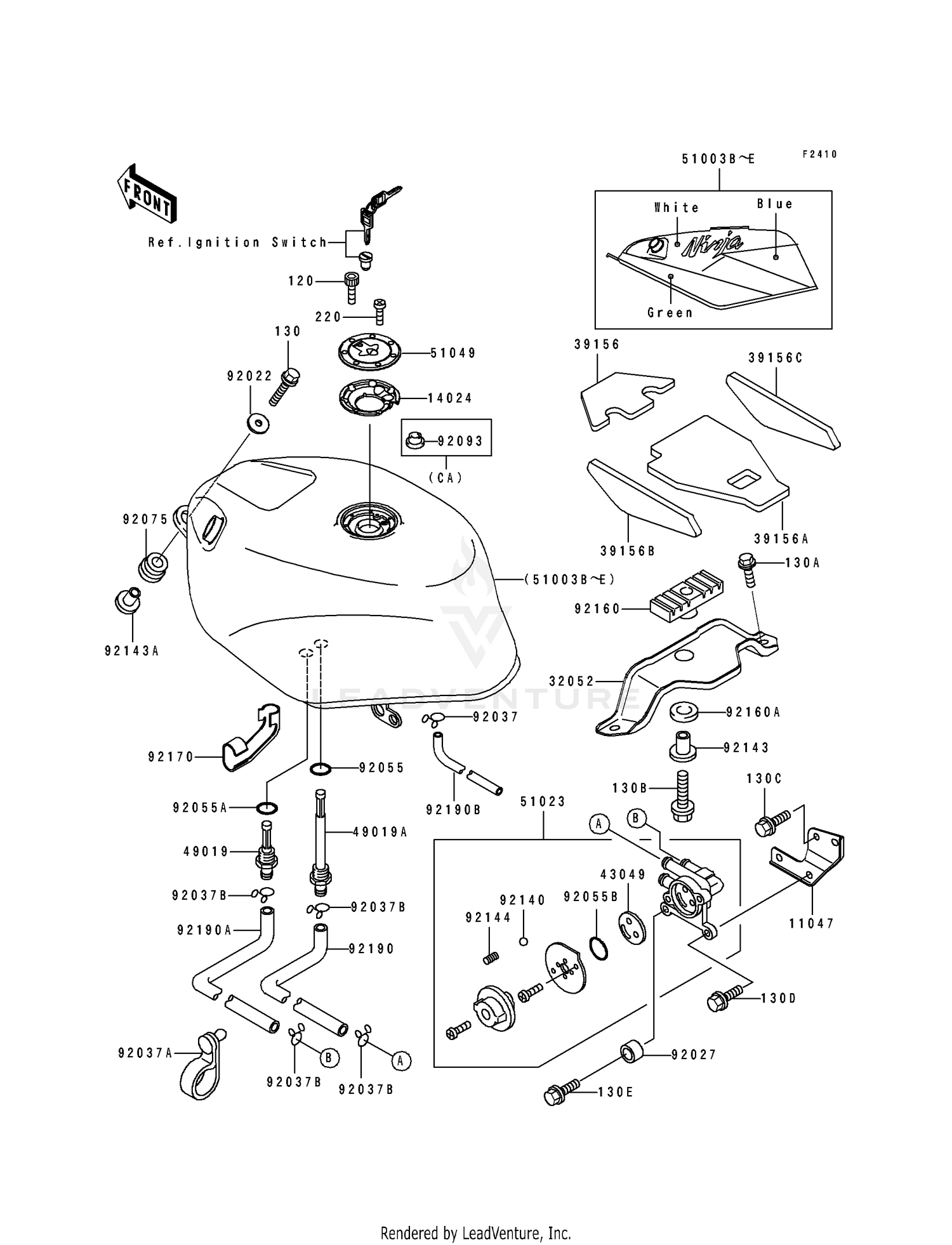

Fuel Tank Diagram

Item	MSRP	Qty
#11047 BRACKET,FUEL TAP 11047-1268	$12.36
Available to order. Add to View Price
#14024 COVER,TANK CAP 14025-1913	$20.78
Available to order. Add to View Price
#32052 BRACKET-TANK,RR 32052-1323	$39.36
Available to order. Add to View Price
#39156 PAD,FUEL TANK,FR 39156-1248	$16.76
Available to order. Add to View Price
#39156A PAD,FUEL TANK,CNT 39156-1249	$27.40
Available to order. Add to View Price
#39156B PAD,FUEL TANK,SIDE,LH 39156-1250	$14.26
Available to order. Add to View Price
#39156C PAD,FUEL TANK,SIDE,RH 39156-1251	$14.26
Available to order. Add to View Price
#43049 PACKING,TAP VALVE 43049-1066 Superseded by 43049-1091	$7.01
Available to order. Add to View Price
#49019 FILTER-FUEL 49019-1070	$17.80
Available to order. Add to View Price
#49019A FILTER-FUEL,"ON" 49019-1071	$18.02
Available to order. Add to View Price
#51003B TANK-COMP-FUEL,GREEN/ 51003-5258-KE	$2,224.85
Available to order. Add to View Price
#51003D TANK-COMP-FUEL(SUB) 51003-5281-KE	$1,817.10
Available to order. Add to View Price
#51003E TANK-COMP-FUEL(SUB) 51003-5282-KE	$1,817.10
Available to order. Add to View Price
#51023 TAP-ASSY,FUEL 51023-1172	$114.31
Available to order. Add to View Price
#51049 CAP-TANK,FUEL 51049-1091 Superseded by 51049-0018	$110.64
Available to order. Add to View Price
#92022 WASHER,6.5X20X1.6 92022-125 Superseded by 92200-0283	$1.36
Available to order. Add to View Price
#92027 COLLAR 92027-103	$3.51
Available to order. Add to View Price
#92037 CLAMP,TUBE 92037-147	$7.09
Available to order. Add to View Price
#92037A CLAMP,SPEED,L=80.5 92037-1903	$7.57
Available to order. Add to View Price
#92037B CLAMP,TUBE 92037-1972	$4.17
Available to order. Add to View Price
#92055 RING-O,ID=9.5 92055-1386	$3.80
Available to order. Add to View Price
#92055A RING-O,11.5X1.5 92055-1387	$3.80
Available to order. Add to View Price
#92055B RING-O,TAP LEVER 92055-1419	$4.84
Available to order. Add to View Price
#92075 DAMPER 92075-112	$4.17
Available to order. Add to View Price
#92093 SEAL,FUEL TANK CAP 92093-1030	$7.50
Available to order. Add to View Price
#92140 "BALL,STAINLESS,5/32",,2017-03-16 1 92140-1051	$4.59
Available to order. Add to View Price
#92143 COLLAR,L=19.3 92143-1484 Superseded by 92027-1780	$6.36
Available to order. Add to View Price
#92143A COLLAR 92143-1515	$19.32
Available to order. Add to View Price
#92144 SPRING,FUEL TAP KNOB 92144-1212	$4.21
Available to order. Add to View Price
#92160 DAMPER,FUEL TANK,RR 92160-1271	$11.04
Available to order. Add to View Price
#92160A DAMPER,FUEL TANK,RR 92160-1277	$4.43
Available to order. Add to View Price
#92170 CLAMP 92170-1282	$12.36
Available to order. Add to View Price
#92190 TUBE,FUEL,"ON" 92190-1192	$32.16
Available to order. Add to View Price
#92190A TUBE,FUEL,"RES" 92190-1193	$32.16
Available to order. Add to View Price
#92190B TUBE,DRAIN 92190-1260 Superseded by 92191-1578	$27.83
Available to order. Add to View Price
#120 BOLT-SOCKET,5X12 120S0512 Superseded by 120CB0512	$1.71
Available to order. Add to View Price
#130 BOLT-FLANGED,6X30 130G0630 Superseded by 130BA0630	$1.42
Available to order. Add to View Price
#130A BOLT-FLANGED,8X20 130H0820 Superseded by 130BA0820	$4.06
Available to order. Add to View Price
#130B BOLT-FLANGED,8X30 130H0830 Superseded by 130BA0830	$1.92
Available to order. Add to View Price
#130C BOLT-FLANGED,6X8 130J0608 Superseded by 130BB0608	$5.88
Available to order. Add to View Price
#130D BOLT-FLANGED,6X16 130J0616 Superseded by 130BB0616	$2.00
Available to order. Add to View Price
#130E BOLT-FLANGED,6X25 130J0625 Superseded by 130BB0625	$2.72
Available to order. Add to View Price
#220 SCREW-PAN-CROS,5X8 220C0508 Superseded by 220AB0508	$0.55
Available to order. Add to View Price
