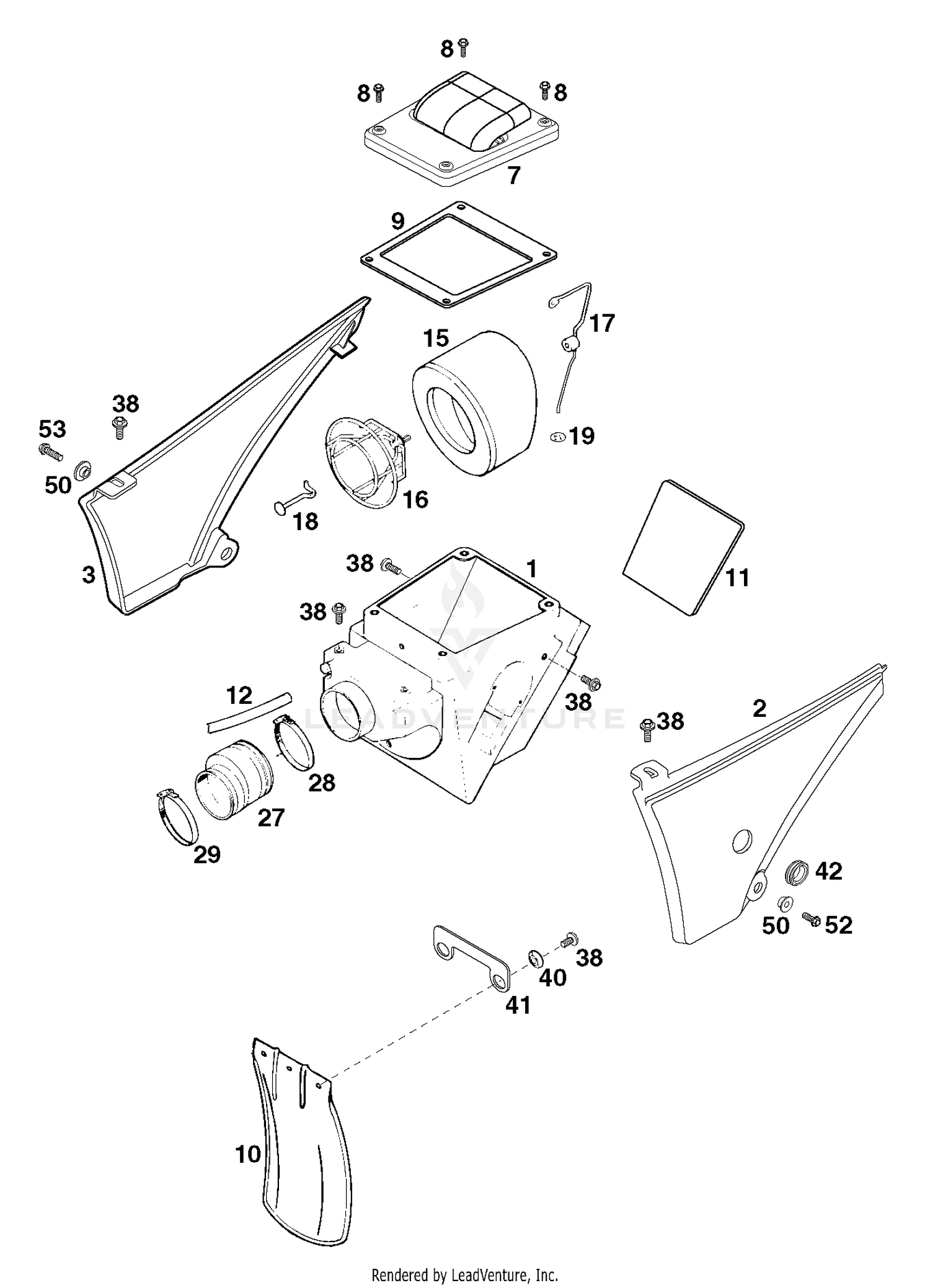

Air Filter Box Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FILTER BOX CPL.DUKE '99
58706001000
|
$96.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
FILTER BOX L/S DUKE '99
58706003000
|
$28.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
FILTER BOX COVER R/S LC4'98
58406004000
|
$24.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
FILTER BOX COVER CPL. DUKE '99
58706002044
|
$29.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
HH collar screw M5x16 TX30
0015050163
Superseded by 0025050166
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET FILTER BOX COVER '99
58706090000
|
$7.29 | ||
|
Unavailable |
|||
|
#10
SPLASH PROTECT.FOR FILTER BOX
54606010000
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPING PLATE REAR BASE
58708019050
|
|||
|
Unavailable |
|||
|
#12
HOSE 10X14 PER METER
57005020001
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
AIRFILTER
56506015100
|
$33.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
FILTER CARRIER '97
58306016100
|
$34.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDING HANGER FILTER DUKE '99
58706017000
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOOK FOR FILTER BRACKET
58306017050
|
$13.59 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMPING DISK KS4
54606019004
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#27
AIR FILTER BOOT 400/640 LC4'97
58406026000
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE CLAMP 60-80MM
55006028000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE CLAMP 50-70MM
51006027000
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#38
HH collar screw M6x15 TX30
0014060153
Superseded by 0024060156
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#40
BUCKET
72210079000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#41
RETAINING BRACKET F. REAR
58706010050
Superseded by 58706010150
|
$15.00 | ||
|
Available to order. Add to View Price |
|||
|
#42
RUBBER SLEEVE F.SEAT LOCK '99
58707050050
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#50
Collar bushing 6x11x16x5áMM
50308052000
Superseded by 79608152000
|
$2.30 | ||
|
Unavailable |
|||
|
#52
HH collar screw M6x16 TX30
0015060163
Superseded by 0025060166
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#53
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
