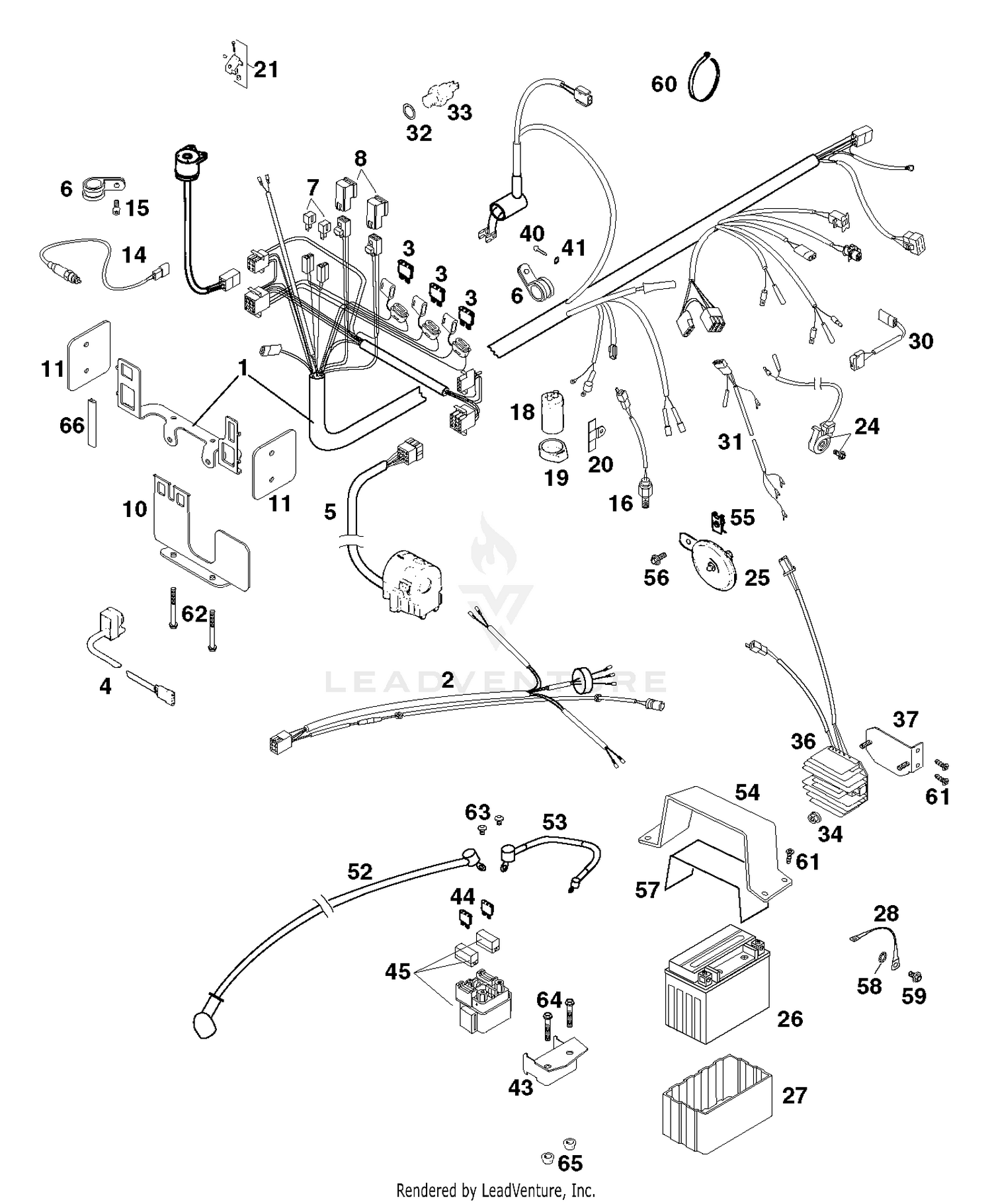

Wiring Harness, Electric Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN WIRING HARNESS DUKE '99
58711075000
|
$148.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
WIRING HARNESS REAR DUKE '99
58711076000
|
|||
|
Unavailable |
|||
|
#3
FUSE 10 A 2000
58011109110
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
START-STOP SWITCH
58411074000
|
$35.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
HEAD LIGHT SWITCH CEV LC4 '98
58411070000
|
|||
|
Unavailable |
|||
|
#6
PVC CLAMP HEYCO 11/16 3377
57013070400
|
|||
|
Unavailable |
|||
|
#7
DIODE S3H-15 97
58411096100
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#8
STARTER RELAY '96
58411057000
|
$27.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREEN F. BRACKET DUKE '99
58711083050
|
|||
|
Unavailable |
|||
|
#11
COVER F. BRACKET '99
58711083020
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLUTCH SWITCH '96
58411049000
|
$38.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
AH SCREW DIN0912-M 5X12
0912050123
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRAKE LIGHT SWITCH REAR '98
50311051100
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
CONDENSATOR 25V, 10.000 MF
49111435100
|
$67.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAPACITOR BRACKET
54511048000
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET FOR CAPACITOR
54611448000
|
|||
|
Unavailable |
|||
|
#21
BRAKE LIGHT SWITCH CPL. FRONT
58313021100
|
$42.23 | ||
|
Available to order. Add to View Price |
|||
|
#24
SIDE STAND SWITCH CPL. '97
58411045000
|
$115.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
DC HORN 12V NIKKO
54511060100
|
|||
|
Unavailable |
|||
|
#26
BATTERY 12V/8AH
58411053000
Superseded by 76011053100
|
$251.78 | ||
|
Available to order. Add to View Price |
|||
|
#27
BATTERY COVER 96
58411053050
|
$27.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
GROUND CABLE D=6MM L=140MM '97
58411097100
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
MICRO SWITCH LC4 '98
58431065100
|
|||
|
Unavailable |
|||
|
#31
WIRING HARN. EPC F. ENGINE LC4
58411085000
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#32
ALU SEALRING DIN7603-14X20X1,5
0603142015
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#33
THERMOSWITCH 80-85 DG
58035045000
|
$44.65 | ||
|
Available to order. Add to View Price |
|||
|
#34
SELF LOCKING NUT M6 10.9
56509064100
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#36
VOLT.REGULATOR-RECTIFIER 12V
58411034100
|
$252.33 | ||
|
Available to order. Add to View Price |
|||
|
#37
BATTERY BRACKET REGULATOR '99
58711055000
|
$20.61 | ||
|
Available to order. Add to View Price |
|||
|
#40
SHEET MET.SCR.DIN7981- 4,8X13
0981480133
|
|||
|
Unavailable |
|||
|
#41
TOOTH LOCK WASH. DIN6797-J 5,3
0797050003
|
$0.36 | ||
|
Available to order. Add to View Price |
|||
|
#43
BRACKET FOR STARTER RELAY '99
58711058050
|
|||
|
Unavailable |
|||
|
#44
FUSE 20 A
58011109120
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#45
STARTER RELAY 12V '99
58211058000
|
$85.46 | ||
|
Available to order. Add to View Price |
|||
|
#52
STARTERCABLE 700 MM '97
58411059100
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#53
WIRING HARNESS BATTERY DUKE'99
58711086000
|
$18.14 | ||
|
Available to order. Add to View Price |
|||
|
#54
BRACKET FOR BATTERY DUKE '99
58711054000
|
$18.54 | ||
|
Available to order. Add to View Price |
|||
|
#55
clip nut M6
54603048100
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#56
HH collar screw M6x15 TX30
0014060153
Superseded by 0024060156
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#57
METAMOLL FOR BATTERY BRACKET
58711054050
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#58
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#59
HH collar screw M6x10 TX30
0015060103
Superseded by 0025060106
|
$3.62 | ||
|
Unavailable |
|||
|
#60
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#61
SCREW FOR PLASTIC K60X20 SW6
0017060203
Superseded by 0017060205
|
$2.41 | ||
|
Unavailable |
|||
|
#62
HH COLLAR SCREW M 6X65 WS=8
0015060653
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#63
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#64
HH collar screw M6x35 TX30
0015060353
Superseded by 0025060356
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#65
SELF LOCKING NUT M6 10.9
56509064100
|
$2.41 | ||
|
Unavailable |
|||
|
#66
EDGE PROTECTOR PER METER
58312085100
|
$26.50 | ||
|
Available to order. Add to View Price |
|||
