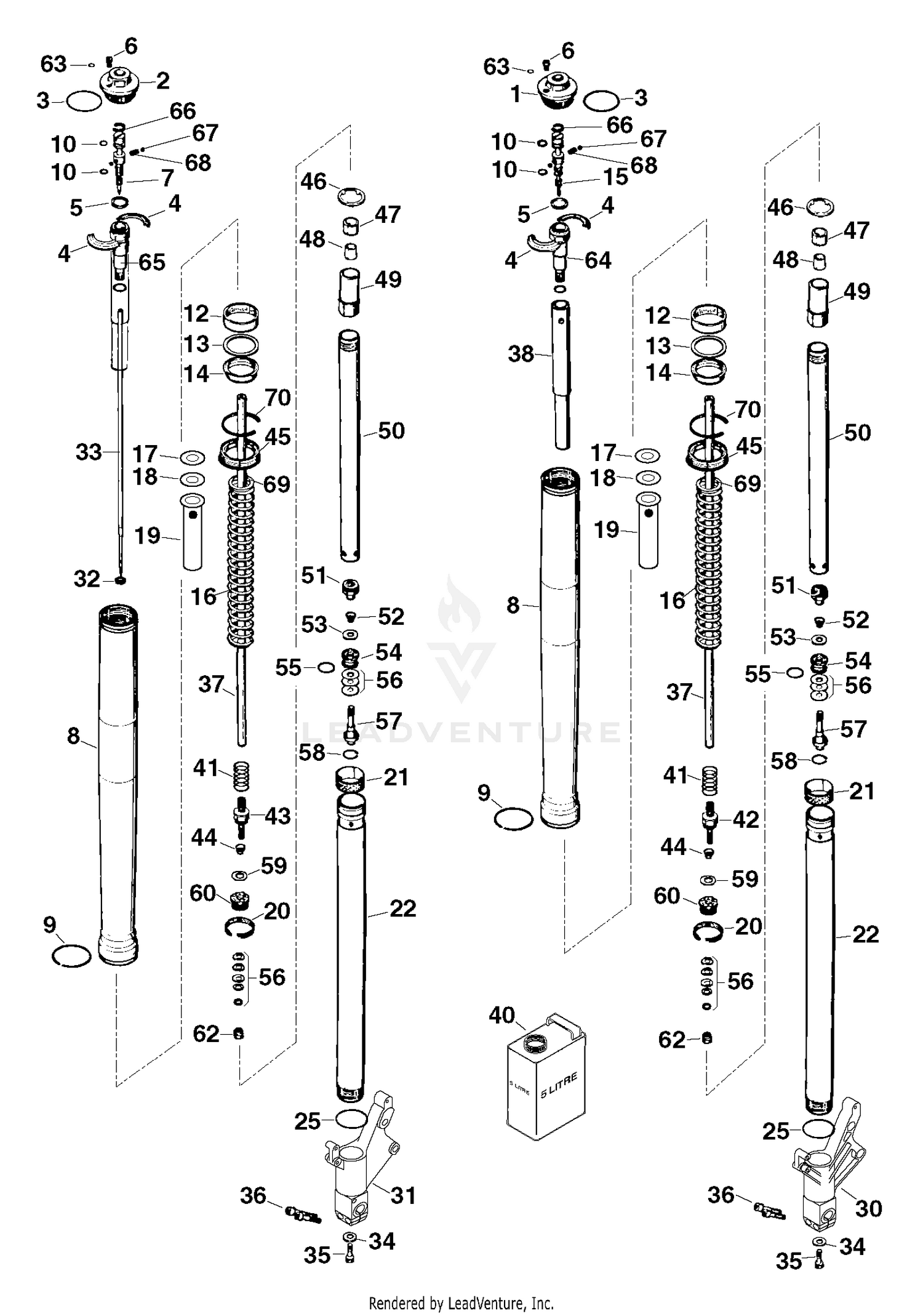

Fork Legs White Power Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW CAP M49X1,5 COMP
40541266
|
|||
|
Unavailable |
|||
|
#2
SCREW CAP M49X1,5 REBOUND
40541272
|
|||
|
Unavailable |
|||
|
#3
O-ring 43x3 NBR70
40540026
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRINGRETAINER D=47MM
40540470
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
Seal ring 14,1x22x4 90Sh
40540492
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
AIR ADJUSTING SCREW
40541270
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
TAP ADJ. REBOUND
40541246
|
$18.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
OUTER TUBE L=577MM D=54/54MM
43570139
|
|||
|
Unavailable |
|||
|
#9
Round-wire snap ring 53x2
43570099
|
$31.12 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING NBR 4X2
40541257
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
DU-BUSH 47 X 43 X 20
43570019
|
$91.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
Supportwasher 45x52,5x1,5
43570092
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL RING 43X52,5X7
43570009
|
$37.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
TAP ADJ. COMPRESSION
50600083
|
$25.32 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING 7,0 N/MM SET D=5,1MM
95010009S
|
|||
|
Unavailable |
|||
|
#17
PRELOAD SPACER L=2,5MM
40540359
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
PRELOAD SPACER L=5MM
40540040
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING GUIDE TA
43570121
|
|||
|
Unavailable |
|||
|
#20
PISTON RING 5 X 1 X 62
40540851
|
$15.32 | ||
|
Available to order. Add to View Price |
|||
|
#21
Guide bushing 42x44x20
43570020
Superseded by 43570617
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#22
INNER TUBE D=43MM L=550MM
43570064
|
|||
|
Unavailable |
|||
|
#25
O-ring 41x2 NBR70 siliconized yellow
43570023
|
$15.94 | ||
|
Available to order. Add to View Price |
|||
|
#30
AXLE CLAMP L/S 320MM DUKE '99
43570138
|
|||
|
Unavailable |
|||
|
#31
AXLE CLAMP R/S DUKE '99
43570137
|
|||
|
Unavailable |
|||
|
#32
O-RING NBR 3X1
40541267
|
|||
|
Unavailable |
|||
|
#33
REBOUND NEEDLE D=4MM L=398MM
40541309
|
|||
|
Unavailable |
|||
|
#34
WASHER COPPER 8X12X1,5
46810360
|
|||
|
Unavailable |
|||
|
#35
AH SCREW DIN6912-M 8X20
40540576
|
|||
|
Unavailable |
|||
|
#36
AH SCREW DIN0912-M 8X30
40540215
Superseded by 0912080303
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#37
PISTON ROD M9X1 L=384MM
40541307
|
|||
|
Unavailable |
|||
|
#38
HYDR.STOP L222,5MM KPL. COMP.
40541376S
|
|||
|
Unavailable |
|||
|
#40
FORKOIL REZ 71 SAE 5
40540882
|
|||
|
Unavailable |
|||
|
#41
REBOUND SPRING
40541240
|
|||
|
Unavailable |
|||
|
#42
PISTON ROD TAP COMPRESSION
40541245
|
|||
|
Unavailable |
|||
|
#43
PISTON ROD TAP REBOUND
40541244
|
|||
|
Unavailable |
|||
|
#44
Spring (8,5) l6,5 valve
40541278
|
$18.69 | ||
|
Unavailable |
|||
|
#45
Dirt scarper SKF 43mm black
43570094
Superseded by 43570624
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#46
SPRINGRETAINER 22,1X35,6X2
40540629
|
$19.46 | ||
|
Available to order. Add to View Price |
|||
|
#47
Rubber pad 13x19,3x7 90Sh
40540487
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#48
Guide bushing 12x14x8
40540434
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#49
SCREW SLEEVE M24X0,8X42
40541249
|
|||
|
Unavailable |
|||
|
#50
TUBE 24X1,5X400
40541239
|
|||
|
Unavailable |
|||
|
#51
CHECK VALVE NUT M6X0,5
40541241
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#52
Spring (8,5) l6,5 valve
40541278
|
$18.69 | ||
|
Unavailable |
|||
|
#53
Shim 8x18x0,40
40540477
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#54
PISTON COMPRESSION MA
40540445
|
|||
|
Unavailable |
|||
|
#55
O-ring 15,6x1,78 NBR
40540437
|
$1.58 | ||
|
Unavailable |
|||
|
#56
Shim 6x18x0,20
40540411
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
Shim 6x9x0,30
40540449
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
Shim 6x12x0,15
40540404
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
Shim 6x14x0,10
40540401
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
Shim 6x16x0,10
40540402
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
Shim 6x18x0,10
40540403
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
Shim 6X11X0,10
40541383
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#56
Shim 6x18x0,10
40540774
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#56
Shim 6x14x0,20
40540409
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#57
TAP COMPRESSION
40541242
|
|||
|
Unavailable |
|||
|
#58
CIRCLIP 21X1,6
40541256
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#59
Shim 8x18x0,40
40540477
|
$2.41 | ||
|
Unavailable |
|||
|
#60
PISTON REBOUND W5
40541085
|
|||
|
Unavailable |
|||
|
#62
Nut M6x0,5 h6,5 WAF10 rebound
40540486
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#63
O-ring 3x2 NBR70
40540867
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#64
HYDR.STOP L=227,5 CPL. COMP.
40541369S
|
|||
|
Unavailable |
|||
|
#65
HYDR.STOP L=227,5 CPL. REB.
40541370S
|
|||
|
Unavailable |
|||
|
#66
LOCK WASHER SB11
40541259
|
|||
|
Unavailable |
|||
|
#67
Steel ball d4
40540296
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#68
Spring (2,3) l5,2
40540472
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#69
RING 28X38X1,5
43570122
|
|||
|
Unavailable |
|||
|
#70
LOCK WASHER D=59MM
43570093
|
|||
|
Unavailable |
|||
