2015 KTM RC 390 Evaporative Canister OEM Parts

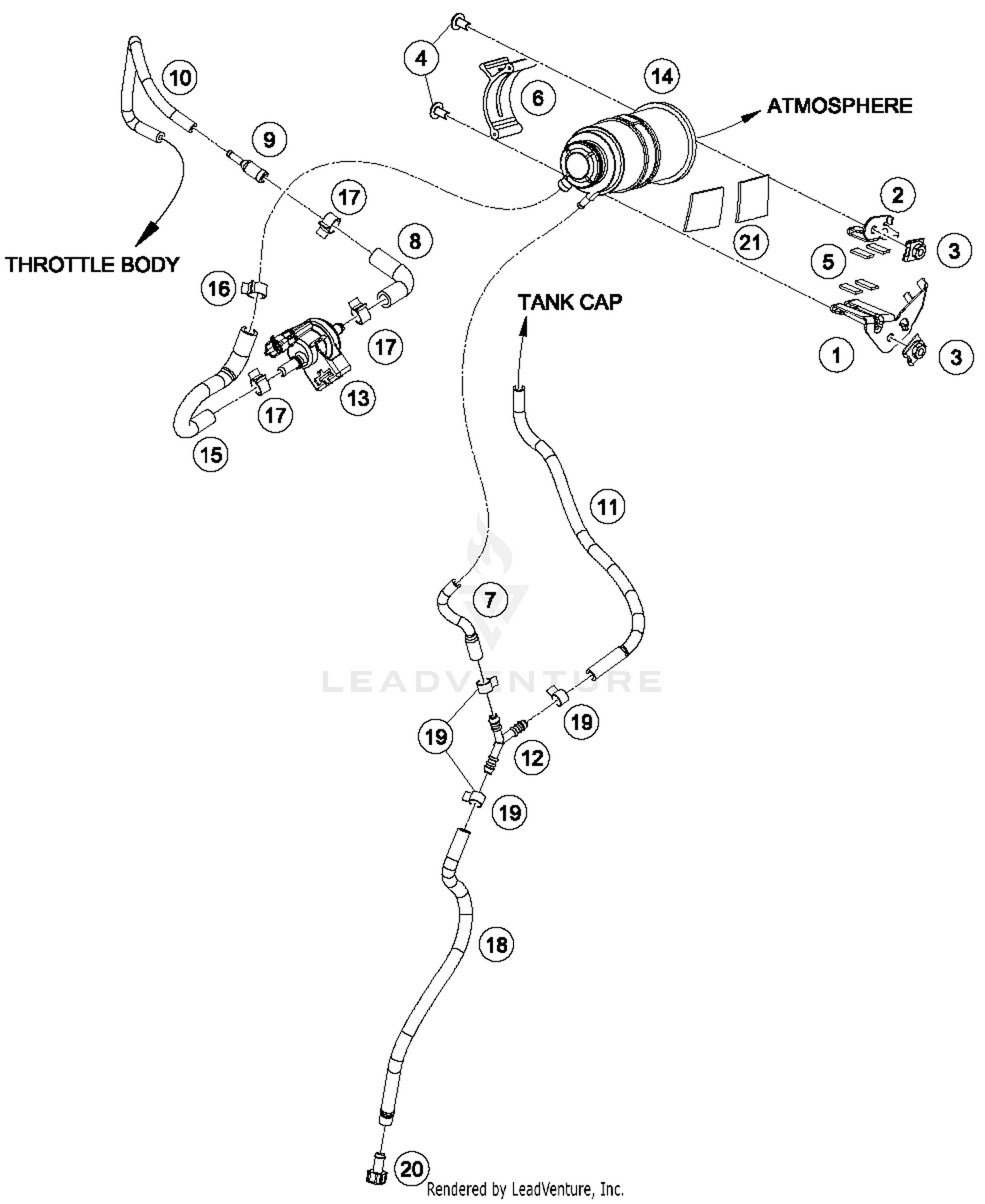

Evaporative Canister Diagram

Item	MSRP	Qty
#1 BRACKET CANISTER MTG LOOSE 90515003000	$2.41
Available to order. Add to View Price
#2 BRACKET CANISTER MTG LOOSE 2 90515004000	$1.20
Available to order. Add to View Price
#3 clip nut 90103097000	$4.83
Available to order. Add to View Price
#4 SOCKET HEAD BOLT M6X12 90508006001	$1.20
Available to order. Add to View Price
#5 PAD RUBBER CANISTER MTG BKT 90515005000	$2.41
Available to order. Add to View Price
#6 STRAP CANISTER 90515002000	$6.15
Available to order. Add to View Price
#7 TUBE CONNECTOR TO CANISTER 90515024000	$3.62
Available to order. Add to View Price
#8 TUBE PURGE VALVE TO CONNECTOR 90207016002	$4.83
Available to order. Add to View Price
#9 CONNECTOR TUBE EVAP 90207016004	$1.20
Available to order. Add to View Price
#10 TUBE CONNECTOR TO INJECTOR 90515027000	$6.92
Available to order. Add to View Price
#11 TUBE TANK TO CANISTER 90515022000	$9.34
Available to order. Add to View Price
#12 CONNECTOR Y SHAPE 90507015000	$3.62
Available to order. Add to View Price
#13 fuel tank vent valve 90607030000	$83.92
Available to order. Add to View Price
#14 TANK CANISTER 90207027001	$61.59
Available to order. Add to View Price
#15 TUBE CANISTER TO PURGE VALVE 90515025000	$7.69
Available to order. Add to View Price
#16 SPRING BAND CLAMP 15X10 90607017001	$2.41
Available to order. Add to View Price
#17 SPRING BAND CLAMP D13 90607017003	$2.41
Available to order. Add to View Price
#18 TUBE CONNECTOR TO PLUG 90515023000	$10.77
Available to order. Add to View Price
#19 CLAMP 10MM 90107018011	$2.41
Available to order. Add to View Price
#20 PLUG FUEL DRAIN 90515011000	$1.20
Available to order. Add to View Price
#21 FOAM PAD 90511038000	$1.20
Available to order. Add to View Price
