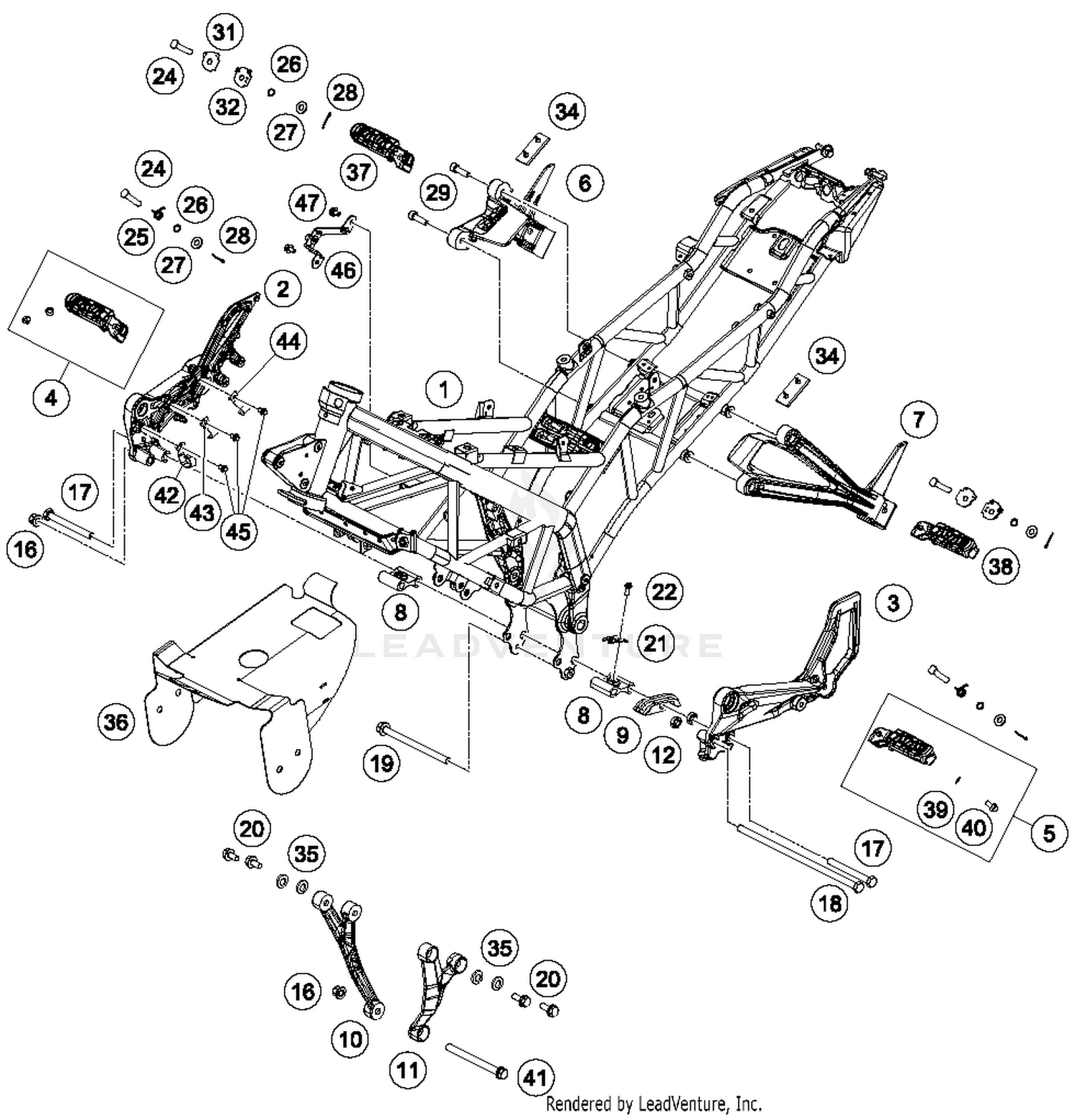

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
90503001100
|
$1,151.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
FOOTREST BRACKET FRONT R/S
90503039000
|
$80.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
FOOTREST BRACKET FRONT L/S
90503038000
|
$83.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
footrest front right cpl.
90103041033
|
$15.31 | ||
|
Unavailable |
|||
|
#5
footrest front left cpl.
90103040033
|
$15.31 | ||
|
Unavailable |
|||
|
#6
FOOTREST BRACKET REAR R/S
90503049000
|
$65.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
FOOTREST BRACKET REAR L/S
90503048000
|
$65.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
footrest support holder, front
90103038001
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
chainguide
90104070000
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
ENGINE CARRIER R/S
90203006000
|
$37.72 | ||
|
Available to order. Add to View Price |
|||
|
#11
ENGINE CARRIER L/S
90203005000
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
spacer chainguide
90104066010
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
FLANGED NUT M10X1,25 WS14
90103038002
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#17
HH COLLAR SCREW M10X1,25X92
J025100926
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH COLLAR SCREW M10X1,25X265
J025102656
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
HH COLLAR SCREW M8X110 SW12
J027081103
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
SOCKET HEAD SCREW M8X25 8.8
J912080253
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
CABLE BRACKET
90111045050
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
FLANGED BOLT M6X14
90103032000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT FOR FOOTREST
90503045000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
footrest return spring
90103042000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING 9X1,5
J770009015
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER D=8,5
90503048010
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN 25X1,8MM
J094018250
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT SOCKET M8X1.25XL
90503098000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
LOCK PLATE LOWER
90503053000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
LOCK PLATE UPPER
90503052000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#34
RUBBER DAMPER FOR FOOTREST
90503050000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER M8
J125080005
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#36
HEAT SHIELD
90805090000
|
$18.91 | ||
|
Available to order. Add to View Price |
|||
|
#37
Rear footpeg cmpl. right
90103051033
Superseded by 93003151033
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#38
Rear footpeg cmpl. left
90103050033
Superseded by 93003150033
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#39
PLAIN WASHER 6,4X12X1
90103040001
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#40
CAP SCREW M6X10 SS
J029060103S
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#41
ENGINE MOUNTING SCREW M10X132
90103013000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#42
BRAKE HOSE GUIDE FRONT
90113025000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#43
BRACKET HOSE CLAMP 2
90513046000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#44
BRACKET HOSE CLAMP 1
90513045000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#45
HH COLLAR SCREW M6X8 SW8
J025060083
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#46
BRACKET SIDECOVER
90503034000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#47
HH COLLAR SCREW M6X10 SW10
J025060103
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
