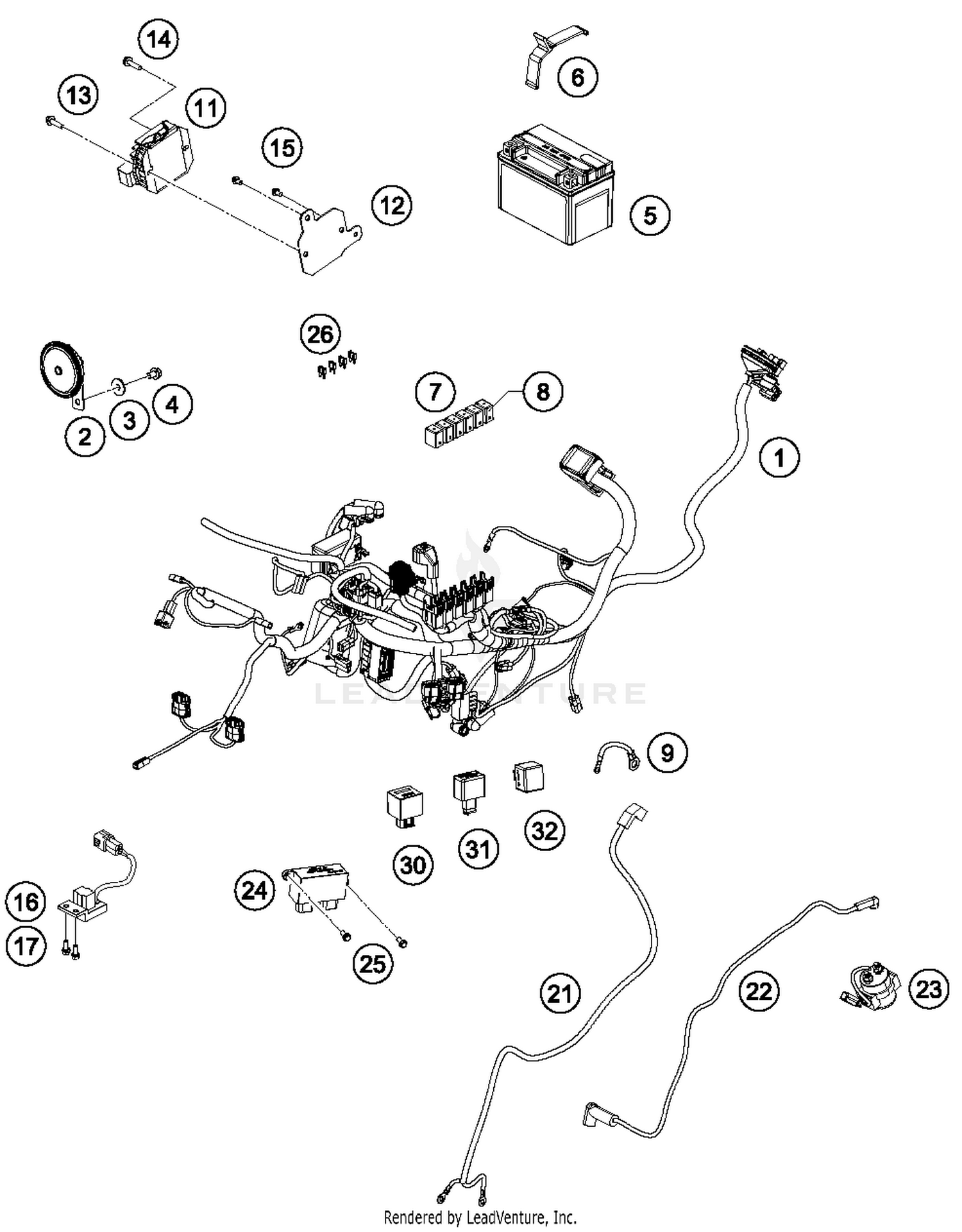

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS MAIN 390 FF USA
90511575000
|
$952.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
HORN 82 DIA
90111060100
|
$26.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER PLAIN 8,4X25X2
90111060010
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
HH COLLAR SCREW M8X12 SW12
J025080123
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
BATTERY 12V/8AH
90611053000
|
$162.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET RUBBER FOR BATTERY
90511054001
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
relay (interlock)
90611057000
|
$28.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
RELAY (AUX1DIODE)
90611157000
|
$28.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
earth wire
90211097000
|
$11.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
voltage regulator
90511034000
|
$167.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET VOLTAGE REGULATOR
90511134010
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLANGED BOLT M6X30 WS10
J025060303
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
bolt flanged M6X25
J025060253
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
HH-COLLAR SCREW M6X10 SW8
J025060109
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROLL OVER SENSOR
90141088000
|
$37.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
HH COLLAR SCREW M5X13 SW8
J011050133
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROUND CABLE
90511097000
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
STARTER CABLE
90811059000
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#23
STARTER RELAY
90111058000
|
$30.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
INTEGRAL UNIT
90611035000
|
$93.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
HH COLLAR SCREW M6X14 SW8
J025060143
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE MINI 5A
75011088005
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE 10A 07
75011088010
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE 15A 07
75011088015
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE 30A
75011088030
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#30
IGNITION UNIT
90539010000
|
$57.08 | ||
|
Available to order. Add to View Price |
|||
|
#31
FLASHER FOR BULB TYPE BLINKER
90511530000
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#32
CONTROL UNIT HEAD LIGHT
90511021000
|
$43.77 | ||
|
Available to order. Add to View Price |
|||
