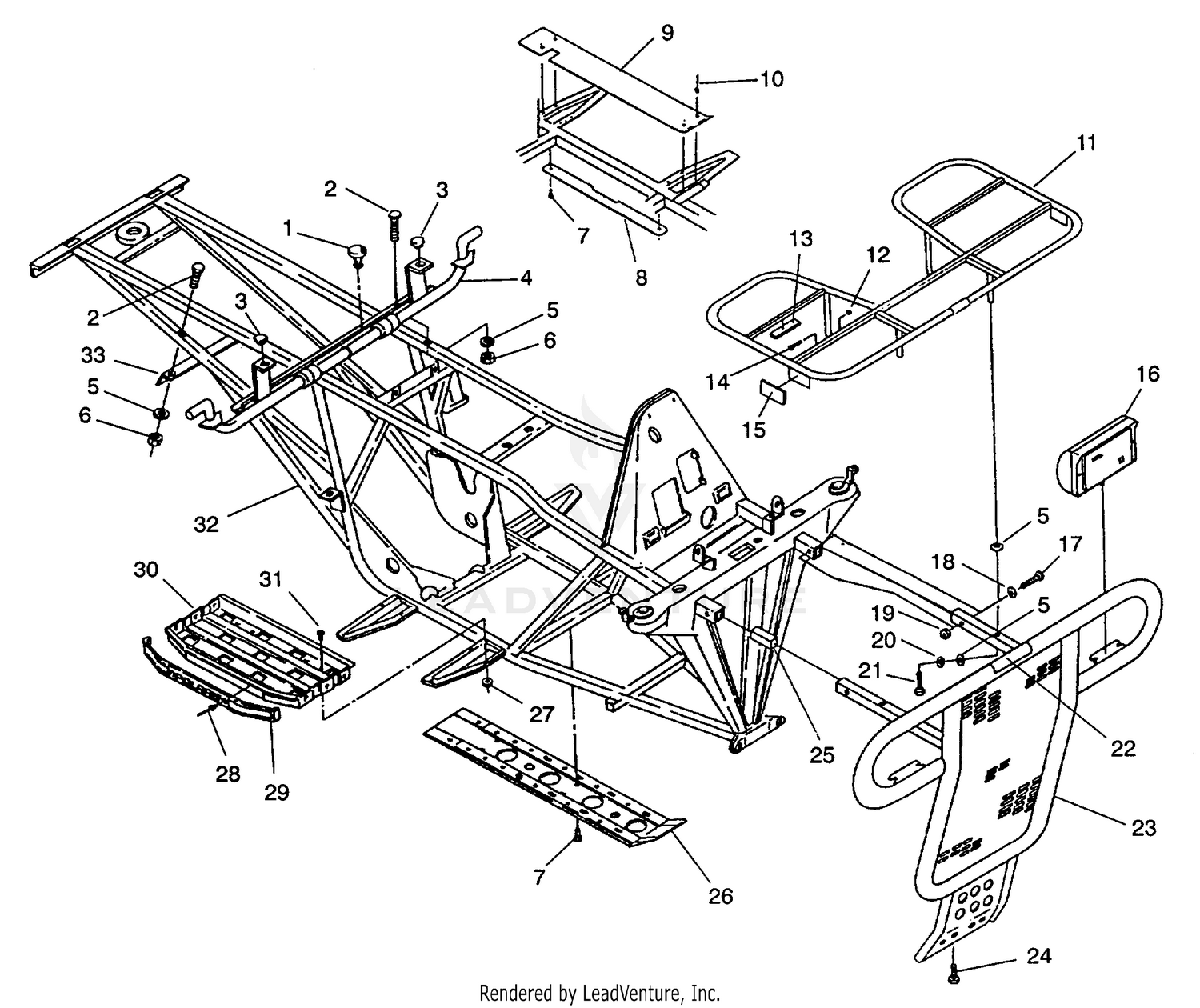

Bumper/rack Mounting 6x6 350l W938739 (4924062406003a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BUMPER, RUBBER
5410414
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT(10)
7512130
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER, BOX, RED
1040291-093
|
|||
|
Unavailable |
|||
|
#5
WASHER(10)
7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUARD,CLUTCH,INNER
5211359-067
|
|||
|
Unavailable |
|||
|
#9
GUARD,CLUTCH,OUTER
5222860-067
|
|||
|
Unavailable |
|||
|
#10
RIVET-3/16-.090-.290
7661620
Superseded by 7661637
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
RACK,FRT.BLK.
2670137-067
|
|||
|
Unavailable |
|||
|
#12
NUT, NYLOK(10)
7542327
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAD,RACK MOUNT
5810455
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW(10)
7515355
|
|||
|
Unavailable |
|||
|
#15
REFLECTOR ASM,AMBER
2670134
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HEADLIGHT ASM (35.5W)
4032067
|
|||
|
Unavailable |
|||
|
#17
BOLT(10)
7512329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
LOCK WASHER(10)
7552801
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW(10)
7512163
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
DECAL, F.SUSP.
7073455
|
|||
|
Unavailable |
|||
|
#23
BUMPER,FRONT,BLK. Substituted by 2670190-067
2670148-067
|
|||
|
Unavailable |
|||
|
#24
SCREW(10)
7512252
|
|||
|
Unavailable |
|||
|
#25
PLUG, FRAME
5810467
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GUARD, ROCK, BLK.
5222272-067
|
|||
|
Unavailable |
|||
|
#27
NUT(10)
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
RIVET,(50)
7661825
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#29
TRIM, FOOTREST
5431484
|
|||
|
Unavailable |
|||
|
#30
FOOTPAD,LH,SILVER
1040274
Superseded by 1040274-117
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
FOOTPAD,RH,(ATV) Substituted by 1040275-117
1040275
|
|||
|
Unavailable |
|||
|
#31
SCREW, MACH, PAN HEAD PHIL
7511989
Superseded by 7519641
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
FRAME,BLK,(93-6X6 350) [No Longer Available]
1040276-067
|
|||
|
Unavailable |
|||
|
#33
MT,REAR STRUT
1040293-067
|
$27.79 | ||
|
Unavailable |
|||
