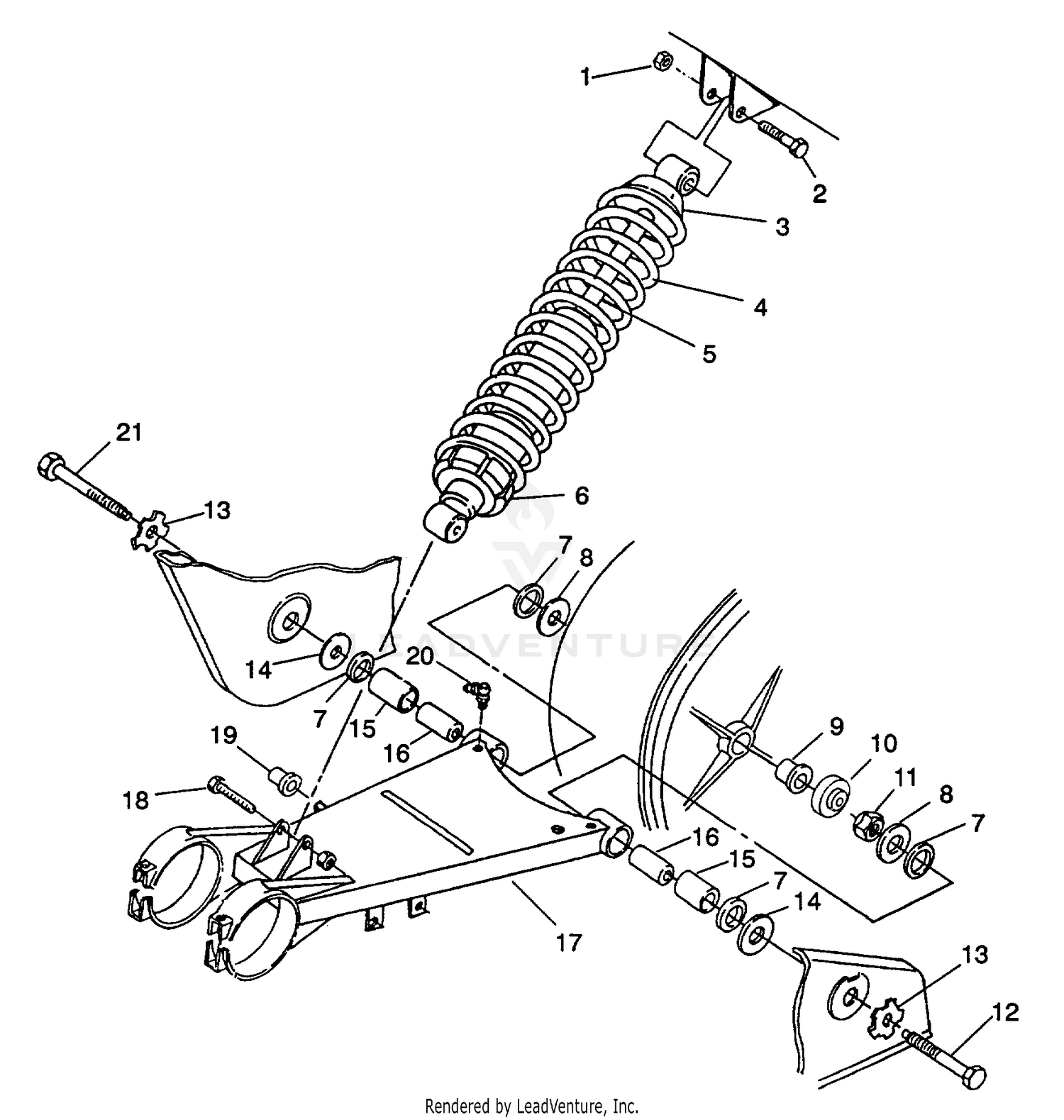

Swing Arm/shock Mounting 6x6 350l W938739 (4924062406028a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT-LOCK(10)
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT(10)
7515415
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
RETAINER-TOP
5220225
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING,COMP,REAR,RED
7041305-093
|
|||
|
Unavailable |
|||
|
#5
SHOCK
7041220
|
$92.99 | ||
|
Unavailable |
|||
|
#6
SPACER,SHOCK RETAINER(10)
5210953
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL,OIL
3610016
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER(10)
7555779
|
|||
|
Unavailable |
|||
|
#9
BUSHING,PIVOT
3233024
|
|||
|
Unavailable |
|||
|
#10
ROLLER,CHAIN GUIDE
5431003
|
|||
|
Unavailable |
|||
|
#11
NUT,CROWN LOCK(10)
7542601
|
|||
|
Unavailable |
|||
|
#12
BOLT, SHOULDER
7512702
|
$15.49 | ||
|
Unavailable |
|||
|
#13
PLATE,BOLT LOCK
5220958
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSHING, MACH.(10)
7555752
|
|||
|
Unavailable |
|||
|
#15
BEARING,SWINGARM
3576512
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NOT AVAILABLE
5010255
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#17
SWINGARM, BLK.
1580062-067
|
|||
|
Unavailable |
|||
|
#18
BOLT(10)
7515438
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER
5130712
|
|||
|
Unavailable |
|||
|
#20
FITTING, LUBE.
7080438
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SHOULDER
7512703
|
|||
|
Unavailable |
|||
