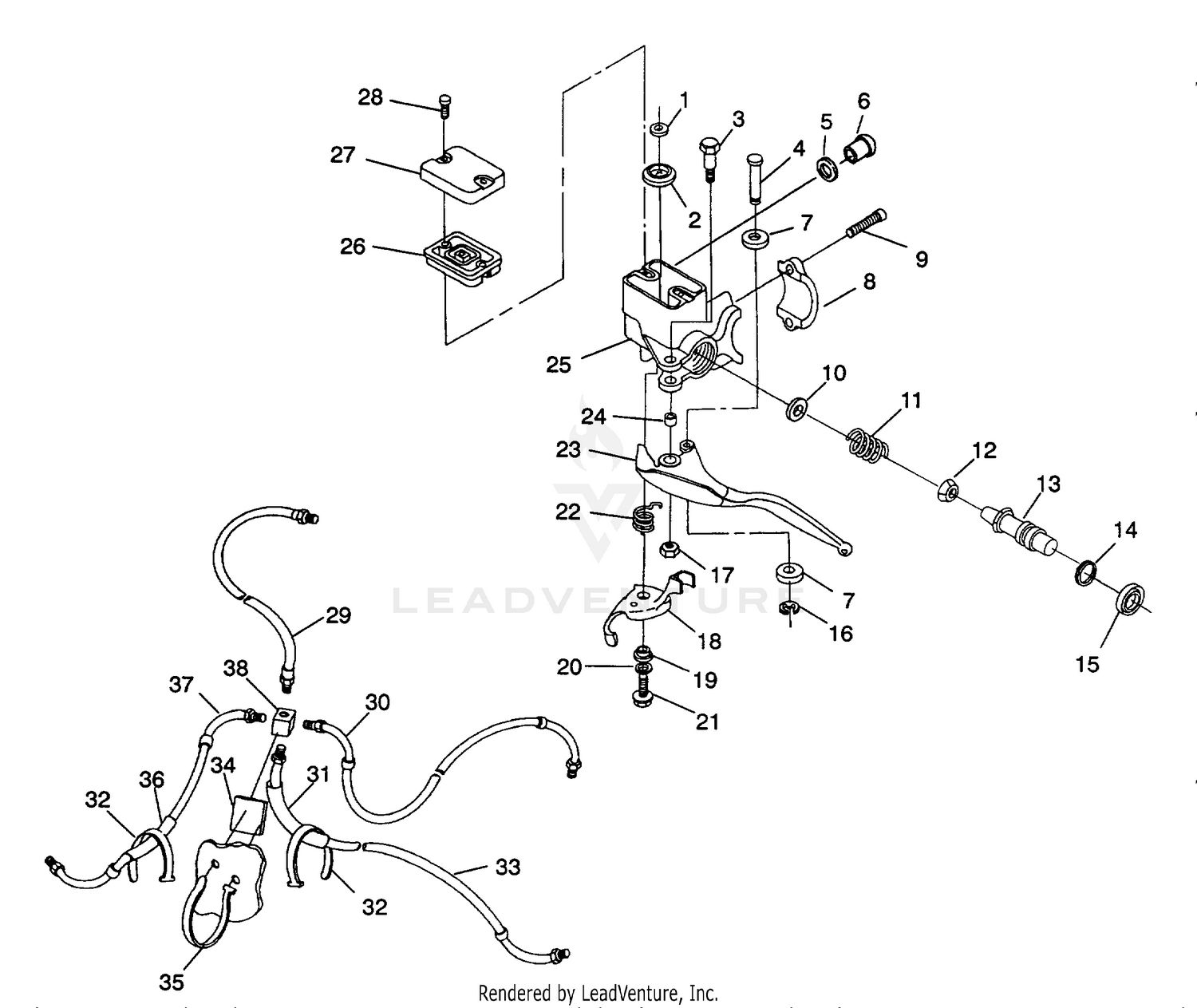

Controls-master Cylinder/brake Line 6x6 350l S938739 (4924362436022a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, BAFFLE(10)
1930662
|
$2.49 | ||
|
Unavailable |
|||
|
#2
BAFFLE,MASTER CYL.
1930673
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,BRAKE LEVER(10)
7512287
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN,BRAKELEVER ROLLER
7661627
|
|||
|
Unavailable |
|||
|
#5
SEAL, SIGHT GLASS
1930660
|
|||
|
Unavailable |
|||
|
#6
GLASS,SIGHT,MASTER CYL.
1930710
|
|||
|
Unavailable |
|||
|
#7
ROLLER, BRAKE LEVER
5020598
|
|||
|
Unavailable |
|||
|
#8
CLAMP, MASTER CYL.
5630342
|
|||
|
Unavailable |
|||
|
#9
BOLT,SOCKET HEAD(10)
7512290
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER(10)
7555708
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, MASTERCYL.
7041311
|
|||
|
Unavailable |
|||
|
#12
SEALCUP, MASTER CYL. Substituted by 5410994
5410784
|
|||
|
Unavailable |
|||
|
#13
PISTON, MASTER CYL.
5020671
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING
5410163
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, OIL
3610022
|
$17.99 | ||
|
Unavailable |
|||
|
#16
RING, RETAINING(10)
7710425
|
|||
|
Unavailable |
|||
|
#17
NUT-LOCK(10)
7542124
Superseded by 7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER,PARK.BRAKE Substituted by 5240865
5240133
|
|||
|
Unavailable |
|||
|
#19
BUSHING,PK.BRAKE LEVER
5020670
|
|||
|
Unavailable |
|||
|
#20
RIVET BURR(50)
7555756
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW(10)
7511876
|
|||
|
Unavailable |
|||
|
#22
SPRING,PK.BRAKE
7041229
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
LEVER, BRAKE,(ATV)
5630455
|
|||
|
Unavailable |
|||
|
#24
BUSHING,BRAKE LEVER
5332931
|
|||
|
Unavailable |
|||
|
#25
HOUSING,MASTER CYL.SCAN
5130961
|
|||
|
Unavailable |
|||
|
#26
GASKET,MASTER CYL.
5410527
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER,MASTER CYL.
5630338
|
|||
|
Unavailable |
|||
|
#28
SCREW,W/WASHER(10)
7512050
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
LINE,BRAKE,UP./FTGS.
1930748
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
LINE, R.BRAKE
1930742
|
|||
|
Unavailable |
|||
|
#31
Tubing, Convoluted
8360031-30
Superseded by 8360011-34
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
STRAP, BLK
7080272
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
LINE,BRAKE,LH,FR,W/FITTINGS
1930631
Superseded by 1930752
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PAD,GAS TANK [No Longer Available]
5850040
|
|||
|
Unavailable |
|||
|
#35
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CONDUIT, 38 CM.
8360031-38
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#37
LINE,BRAKE,RH,FR.W/FITTINGS
1930634
Superseded by 1930753
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
FITTING, TEE
7052044
|
|||
|
Unavailable |
|||
