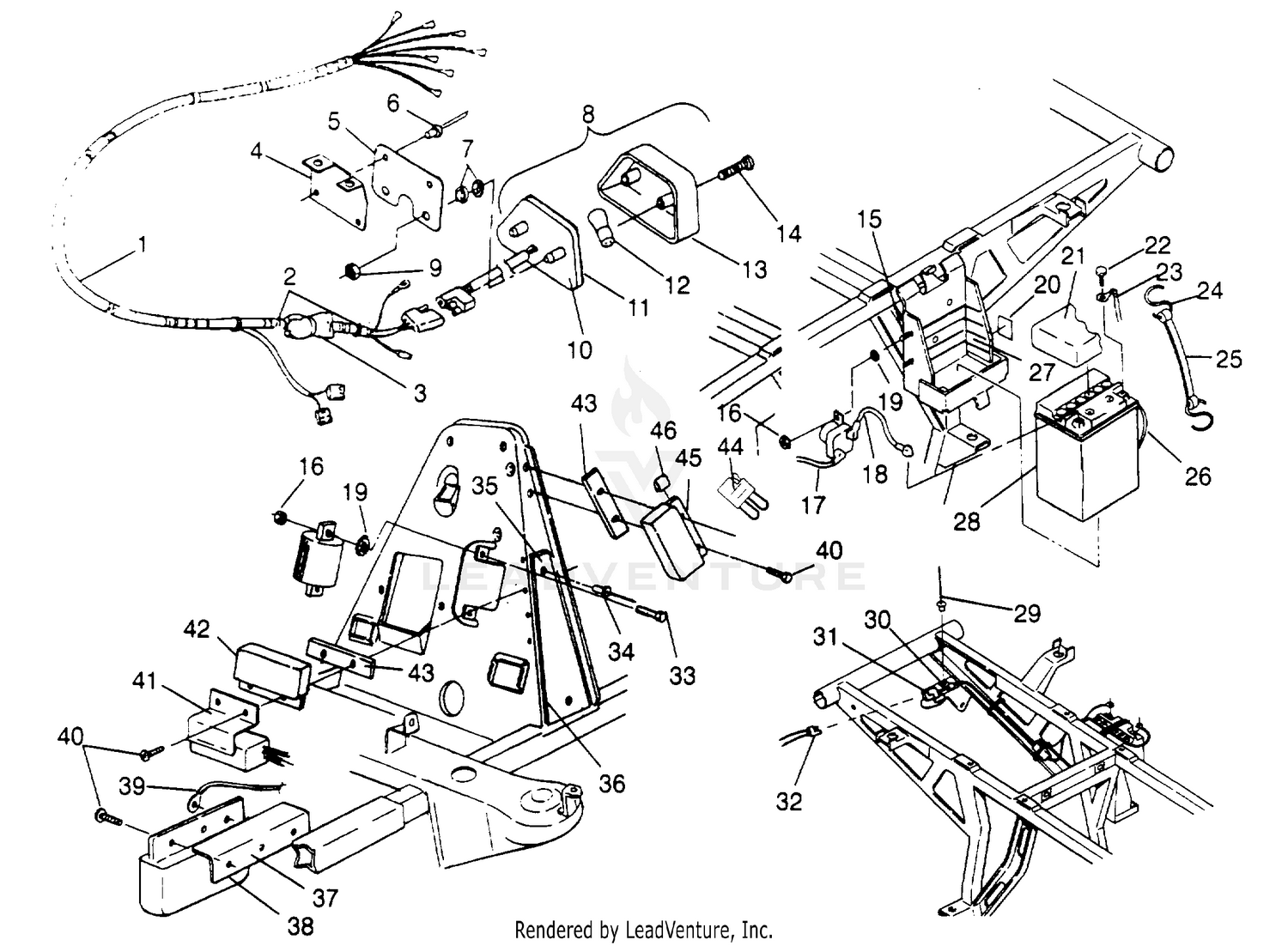

Electrical/taillight Assembly 6x6 400l, U.s. W958740, Swedish S958740 And N (4930273027d003) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,MAIN WIRE,(400-6X6)
2460489
|
|||
|
Unavailable |
|||
|
#2
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CKT.BREAKER,20 AMP.
2434012
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET,T/L MOUNT
5240244-067
|
|||
|
Unavailable |
|||
|
#5
ISOLATOR,TAILLIGHT
5211391-067
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#6
Rivet
7621470
Superseded by 7621453
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,NYLON(10)
7555916
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TAIL LIGHT ASM.
2432034
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPEED NUT-WASHER, HEAD-1/4
7670054
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BACKING,TAILLIGHT
4032064
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET,TAILLIGHT
4032045
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BULB,TAILLIGHT
4030043
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LENS,TAILLIGHT
4032046
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAILLIGHT
4032029
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW(10)
7512027
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT(10)
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE,SOLENOID/STARTER
4010064
|
|||
|
Unavailable |
|||
|
#18
CABLE,BATT/SOLENOID,RED
4010094
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER(10)
7571602
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
DECAL, BATTERY [No Longer Available]
7072606
|
|||
|
Unavailable |
|||
|
#21
COVER,BATTERY
5431769
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT,BATT,KIT(SHORT)
2200361
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CABLE,BATT/ENG.,BLK.
4010095
|
|||
|
Unavailable |
|||
|
#24
HOOK-BATT.H/D(10)
7010032
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Strap, Battery Holddown
5410424
Superseded by 5412499
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUEL LINE,1/8 ID,600 CM.
8360009-600
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PAD-BATTERY
5810290
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BATTERY
4140006
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
RIVET,(50)
7621336
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP,BLK,5/16 PLASTIC(10)
7080524
|
|||
|
Unavailable |
|||
|
#31
POWERPLUG ASM,12V.
2410023
|
$36.19 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIGTAIL, POWER
2460442
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW(10)
7512007
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
RIVET, POP(50)
7621322
|
|||
|
Unavailable |
|||
|
#35
BOARD,TERMINAL
4040056
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SHIELD,TERM.BOARD
5431152
|
|||
|
Unavailable |
|||
|
#37
HEATSINK RECT.
5131036
|
|||
|
Unavailable |
|||
|
#38
RECTIFIER,SWITCHING
4060113
|
|||
|
Unavailable |
|||
|
#39
HARNESS,JUMPER,RECTIFIER
2460485
|
|||
|
Unavailable |
|||
|
#40
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BRKT,CDI(ATV 400)
5240428
|
|||
|
Unavailable |
|||
|
#42
LIMITER,RPM,350HZ. Substituted by 4060203
4060112
|
|||
|
Unavailable |
|||
|
#43
HEAT SINK
5210650
|
|||
|
Unavailable |
|||
|
#44
HARNESS-JUMPER,LIMITER
2460509
|
|||
|
Unavailable |
|||
|
#45
LIMITER,650 HZ,(RPM),(NOR)
4060127
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
