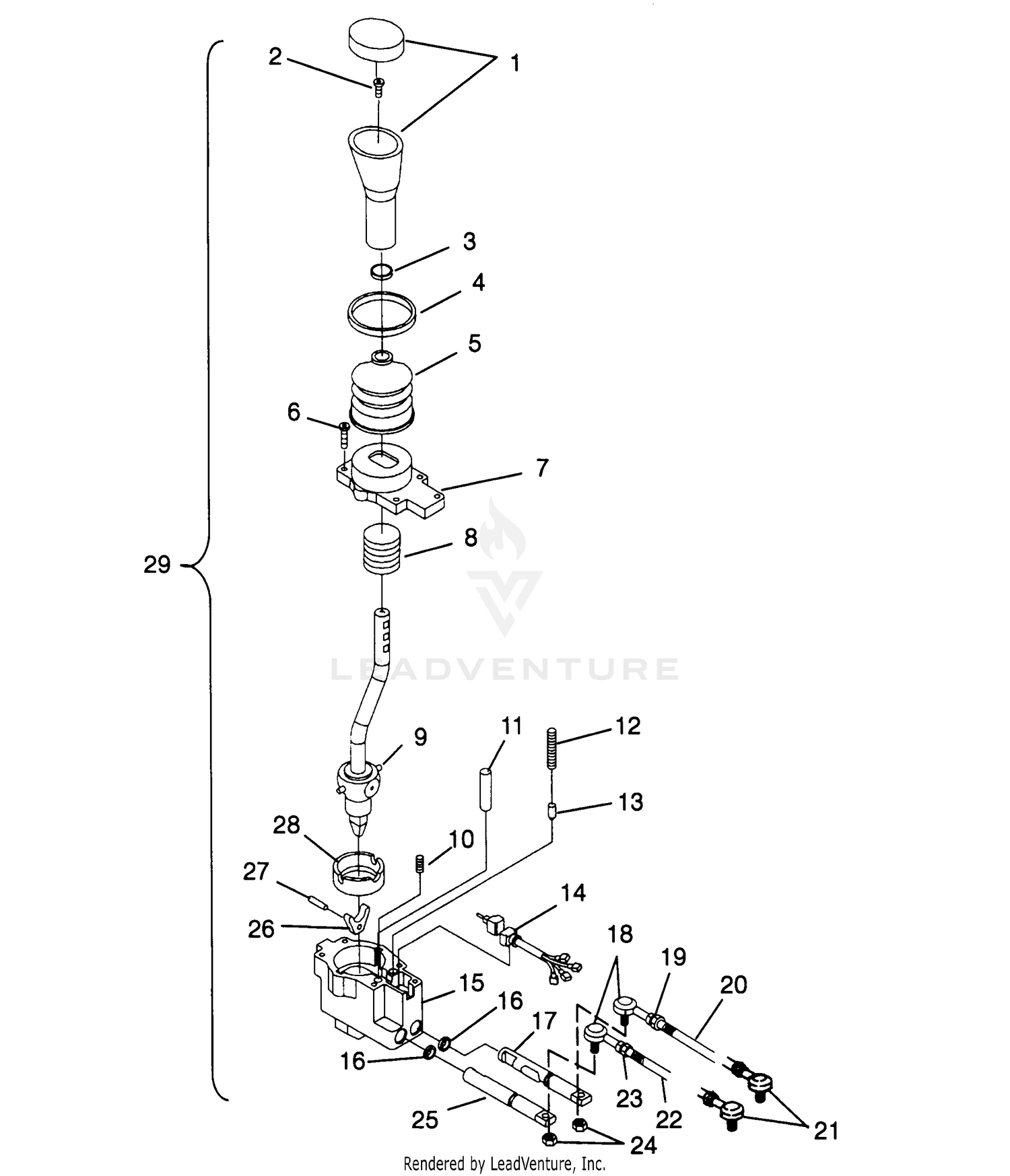

Gear Selector 6x6 400l Norwegian N958740 (4930273027d009) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR SELECT KNOB,HLR,BLACK,ASM.
3233196
Superseded by 3233195-070
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW,(10)
7512024
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STRAP, WIRE
3233131
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
3233132
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT,GEAR SELECTOR
3233133
Superseded by 3233368
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER,GEARSELECT,5-BOLT
3233204
|
|||
|
Unavailable |
|||
|
#8
SPRING,HOLDING
3233065
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
HANDLE,(SUBASSEMBLY)
3233163
|
|||
|
Unavailable |
|||
|
#10
SPRING,CENTERING
3233083
|
|||
|
Unavailable |
|||
|
#11
PIN, STOP
3233062
|
$13.39 | ||
|
Unavailable |
|||
|
#12
SPRING,DETENT
3233069
|
$7.19 | ||
|
Unavailable |
|||
|
#13
BULLET,DETENT
3233060
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWITCH
3233138
Superseded by 3233371
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BODY,GEARSELECT,5-BOLT Substituted by 3233343
3233205
|
|||
|
Unavailable |
|||
|
#16
O-RING
3233076
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SLIDE,HIGH/REV.
3233088
|
|||
|
Unavailable |
|||
|
#18
ROD END,RH,6MM.
7060142
Superseded by 7061014
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT(10)
7546702
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROD,LOW-RA.SHIFTLINK
5020730
|
|||
|
Unavailable |
|||
|
#21
ROD END,LH,6MM.
7060141
Superseded by 7061013
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROD,HI-RA.SHIFTLINK
5020729
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT(10)
7546701
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT-6MM X 1 NYLOK-Z
7546707
Superseded by 7546703
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SLIDE,LOW
3233089
|
|||
|
Unavailable |
|||
|
#26
INTERLOCK,BUTTERFLY
3233084
|
|||
|
Unavailable |
|||
|
#27
PIN,INTERLOCK
3233070
|
|||
|
Unavailable |
|||
|
#28
CUP,BEARING
3233063
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SELECTOR ASM,GEAR,400,NORWAY
1341166
|
|||
|
Unavailable |
|||
