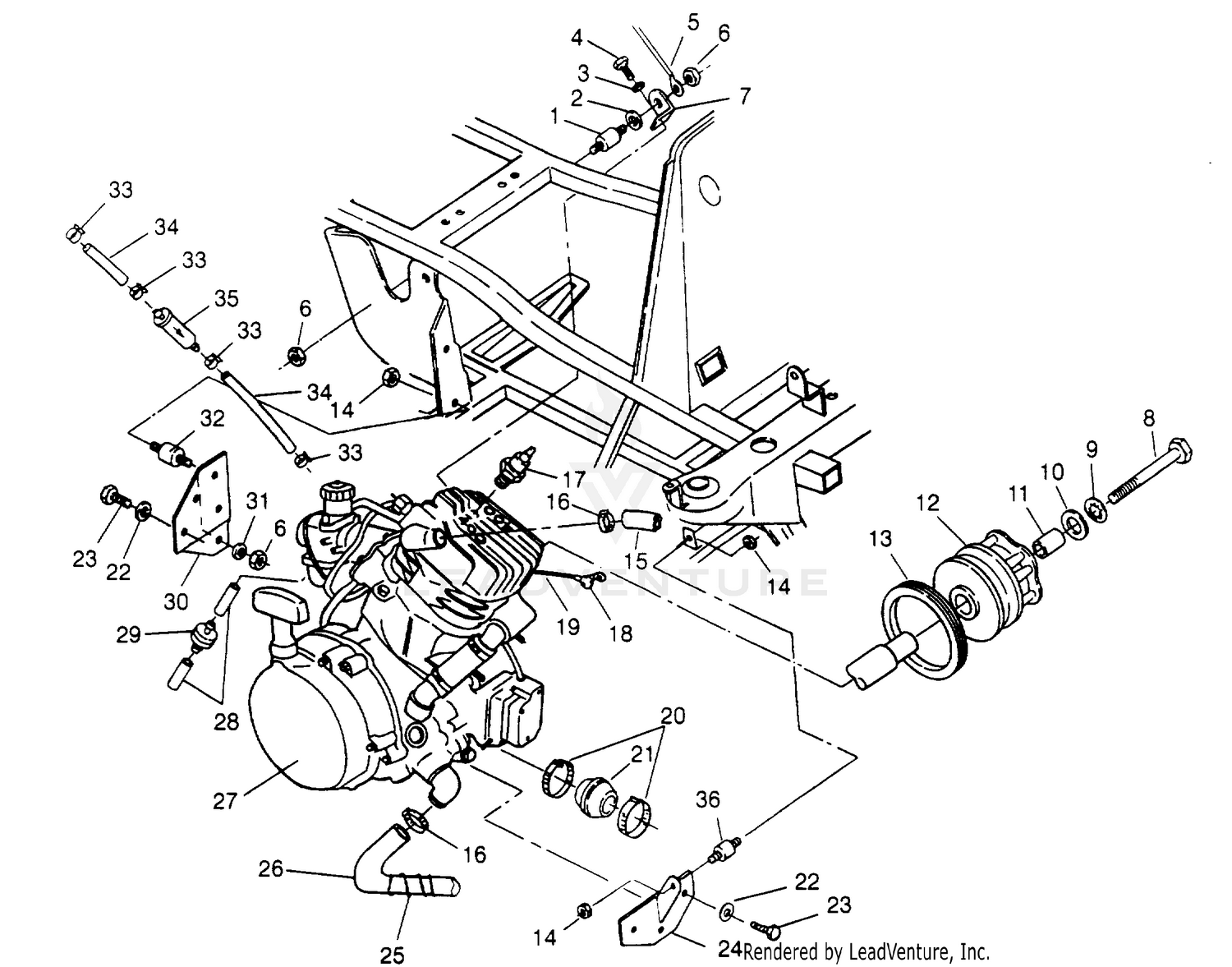

Engine Mounting 6x6 400l - U.s. W958740, Swedish S958740 And Norwegian N9 (4930273027a011) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ISOLATOR-3/8-24M/M,65DURO
3110038
Superseded by 3022069
|
$30.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
INSULATOR,MOTOR MT.
5430802
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT(10)
7515321
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE,GROUND/ENG.
4010067
|
|||
|
Unavailable |
|||
|
#6
NUT LOCK(10)
7542411
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOUNT,ENG.TOP
5222415-067
|
|||
|
Unavailable |
|||
|
#8
BOLT(10)
7512566
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-7/16-INT LK-(1222)-Z
7575202
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-.440X1.25X.190 FL-Y
5210748
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSHING-.437 X.770 X.50
5430261
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DESC NOT_AVAILABLE
1321628
|
|||
|
Unavailable |
|||
|
#13
Seal, Cover Case
-------
|
|||
|
Unavailable |
|||
|
#14
NUT LOCK(10)
7542403
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE,ENG,UPPER
5410570
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP,WORM DRIVE
7080547
|
|||
|
Unavailable |
|||
|
#17
SPARKPLUG (10)
3070156
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
INSULATOR-CABLE
5410346
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE,SOLENOID/STARTER
4010064
|
|||
|
Unavailable |
|||
|
#20
CLAMP, NARROW BAND(10)
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOOT,CLUTCH INTAKE(400)
5410883
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING LOCK
7553001
Superseded by 7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW(10)
7512490
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
MOUNT,ENGINE
1040231-067
|
|||
|
Unavailable |
|||
|
#25
SPRING,HOSE RETAINER
7041079
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE,LOWER ENGINE
5410572
Superseded by 5411173
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
ENG.EC38PL-01 Substituted by 3084718
1211547
|
|||
|
Unavailable |
|||
|
#28
FUEL LINE,1/8 ID,600 CM.
8360009-600
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Valve, Check
7052047
Superseded by 7051011
|
$9.29 | ||
|
Unavailable |
|||
|
#30
MOUNT, REAR MOTOR, BLK.
5240542-067
|
|||
|
Unavailable |
|||
|
#31
WASHER(10)
7555883
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
ISOLATOR-3/8-24M/M,60DURO
3110042
Superseded by 3022070
|
$27.79 | ||
|
Unavailable |
|||
|
#33
CLAMP-HOSE,(10)
7080236
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
FUEL LINE,3/16 ID(600 CM.)
8450042-600
|
|||
|
Unavailable |
|||
|
#35
FILTER,SMALL,IN-LINE,(10)
2530009
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
DAMPENER,RUBBER ENG.5/16
3110036
|
|||
|
Unavailable |
|||
