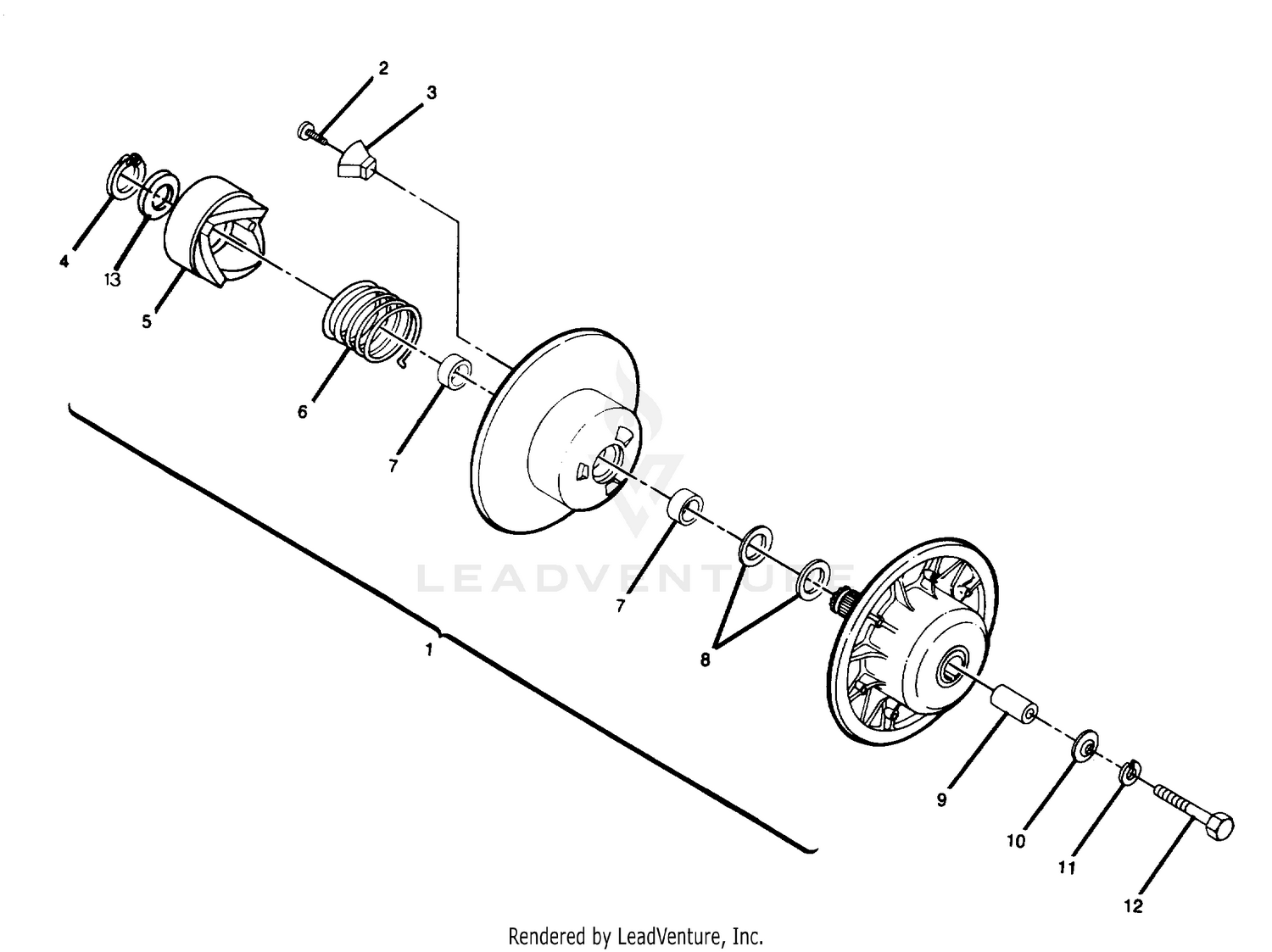

Driven Clutch Assembly 6x6 (4919811981032a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH,DRIVEN,HVY RET
1322138
Superseded by 1322180
|
$614.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT(10)
7511854
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUTTON
5430766
Superseded by 5450873
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINING RING(10)
7714401
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
RAMP, STATIONARY
5130738
|
|||
|
Unavailable |
|||
|
#6
SPRING,CLUTCH,(RED)
7041198
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSHING, DRIVEN
3576504
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER(10)
7556804
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER, DRIVEN
5211041
|
|||
|
Unavailable |
|||
|
#10
WASHER, DOMED(10)
5220646
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK WASHER(10)
7552901
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT(10)
7515327
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
7555782
|
|||
|
Unavailable |
|||
