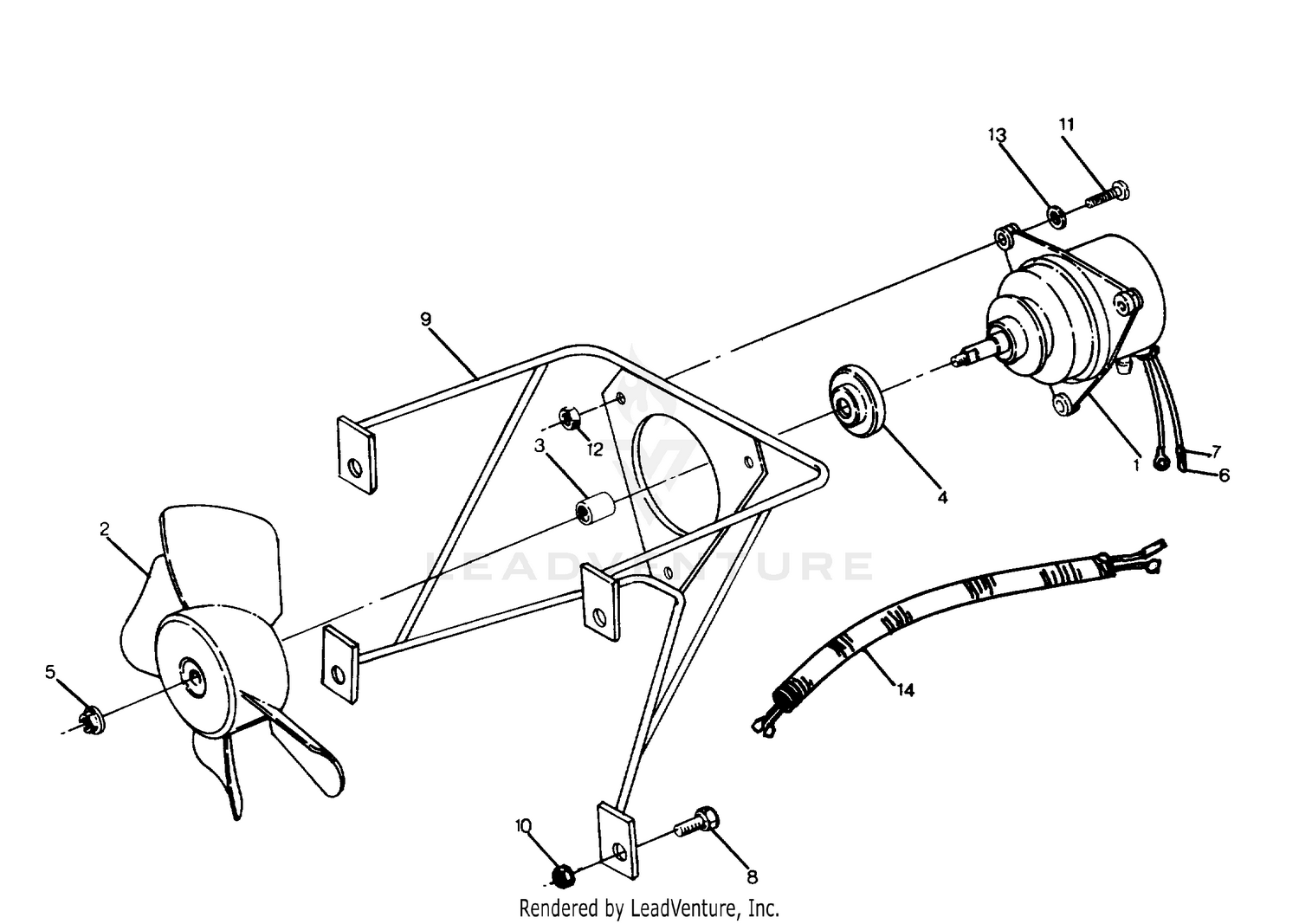

Fan Assembly 6x6 (4919811981007a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
FAN&ELEC.MOTOR ASM. Substituted by 2870869
2410004
|
|||
|
Unavailable |
|||
|
#
FAN&ELEC.MTR. Substituted by 2410004
3083947
|
|||
|
Unavailable |
|||
|
#1
MOTOR ASM. Substituted by 3084036
3083948
|
|||
|
Unavailable |
|||
|
#2
FAN BLADE
3083949
|
|||
|
Unavailable |
|||
|
#3
BUSHING
3083950
|
|||
|
Unavailable |
|||
|
#4
COVER
3083951
|
|||
|
Unavailable |
|||
|
#5
NUT
3083952
|
|||
|
Unavailable |
|||
|
#6
PIN, CONNECTOR
4020142
|
|||
|
Unavailable |
|||
|
#7
TUBE
5521210
|
|||
|
Unavailable |
|||
|
#8
SCREW(10)
7512113
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
MOUNT, FAN Substituted by 1040188-067
1040188
|
|||
|
Unavailable |
|||
|
#10
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT(10)
7511854
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT(10)
7541915
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, FLAT(10)
7558201
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWITCH,THERMAL(FAN)
2460297
|
|||
|
Unavailable |
|||
