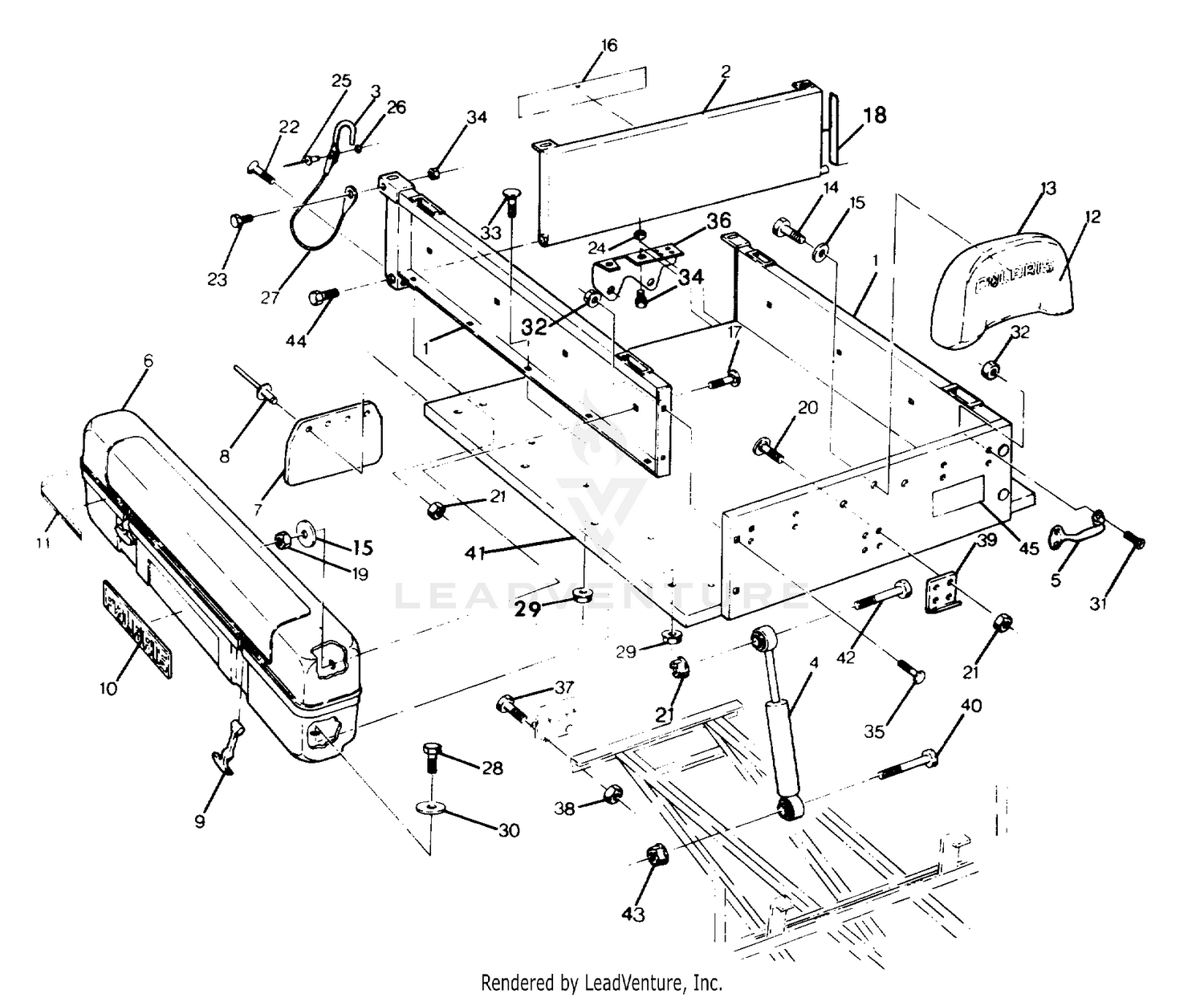

Utility Dump Box 6x6 (4919811981013a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PANEL, RH SIDE
1040181
|
|||
|
Unavailable |
|||
|
#1
PANEL, LH SIDE Substituted by 1040180-132
1040180
|
|||
|
Unavailable |
|||
|
#2
TAILGATE WELD. Substituted by 1040179-132
1040179
|
|||
|
Unavailable |
|||
|
#3
HOOK,T'GATE SUPPORT
5222226
|
|||
|
Unavailable |
|||
|
#4
SHOCK
7041221
|
|||
|
Unavailable |
|||
|
#5
HANDLE, GRAB Substituted by 7030011-132
7030011
|
|||
|
Unavailable |
|||
|
#6
BOX, UTILITY, ASM.
2620001
|
|||
|
Unavailable |
|||
|
#7
MUDFLAP
5850088
|
|||
|
Unavailable |
|||
|
#8
POP RIVET(50)
7621418
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
LATCH, DRAW
5410543
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
LOGO,POLARIS,GREY
5430944
|
|||
|
Unavailable |
|||
|
#11
DECAL, STRIPE Substituted by 8330322-122
7072721
|
|||
|
Unavailable |
|||
|
#12
BACKREST ASM,(4X6)
2681419
|
|||
|
Unavailable |
|||
|
#13
COVER,BACKREST(4X6)
2681420
|
|||
|
Unavailable |
|||
|
#14
BOLT(10)
7512111
Superseded by 7512240
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER(10)
7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DECAL,'POLARIS' [No Longer Available]
7072722
|
|||
|
Unavailable |
|||
|
#17
BOLT(10)
7512193
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PAD,FUELTANK BRKT. Substituted by 8360026
5810317
|
|||
|
Unavailable |
|||
|
#19
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Bolt, Carriage
7512394
Superseded by 7512377
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW(10)
7515314
|
|||
|
Unavailable |
|||
|
#23
BOLT, BLACK(10)
7512282
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
POP RIVET(50)
7621402
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
Washer
7555746
Superseded by 7555904
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CABLE, GROUND Substituted by 7080496
7080380
|
|||
|
Unavailable |
|||
|
#28
BOLT(10)
7512240
|
$4.99 | ||
|
Unavailable |
|||
|
#31
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT(10)
7512247
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT(10)
7512248
|
|||
|
Unavailable |
|||
|
#36
BRKT,T/L,M.T.MOD Substituted by 5240244-067
5240115
|
|||
|
Unavailable |
|||
|
#37
SCREW(10)
7512492
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT,FLANGE LOCK(10)
7542449
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
LEVERLATCH,BOX,GREY
1040176
|
$56.99 | ||
|
Unavailable |
|||
|
#40
BOLT(10)
7515415
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BED, WELD. Substituted by 1040182-132
1040182
|
|||
|
Unavailable |
|||
|
#42
BOLT(10)
7512329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT-LOCK(10)
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT
5020535
|
|||
|
Unavailable |
|||
|
#45
DECAL(CPSC),WARN,RIDER [No Longer Available]
7072766
|
|||
|
Unavailable |
|||
