1991 Polaris BIG BOSS 6X6 Front Wheel Assembly Updated 2-91 6x6 (4919811981017a) OEM Parts

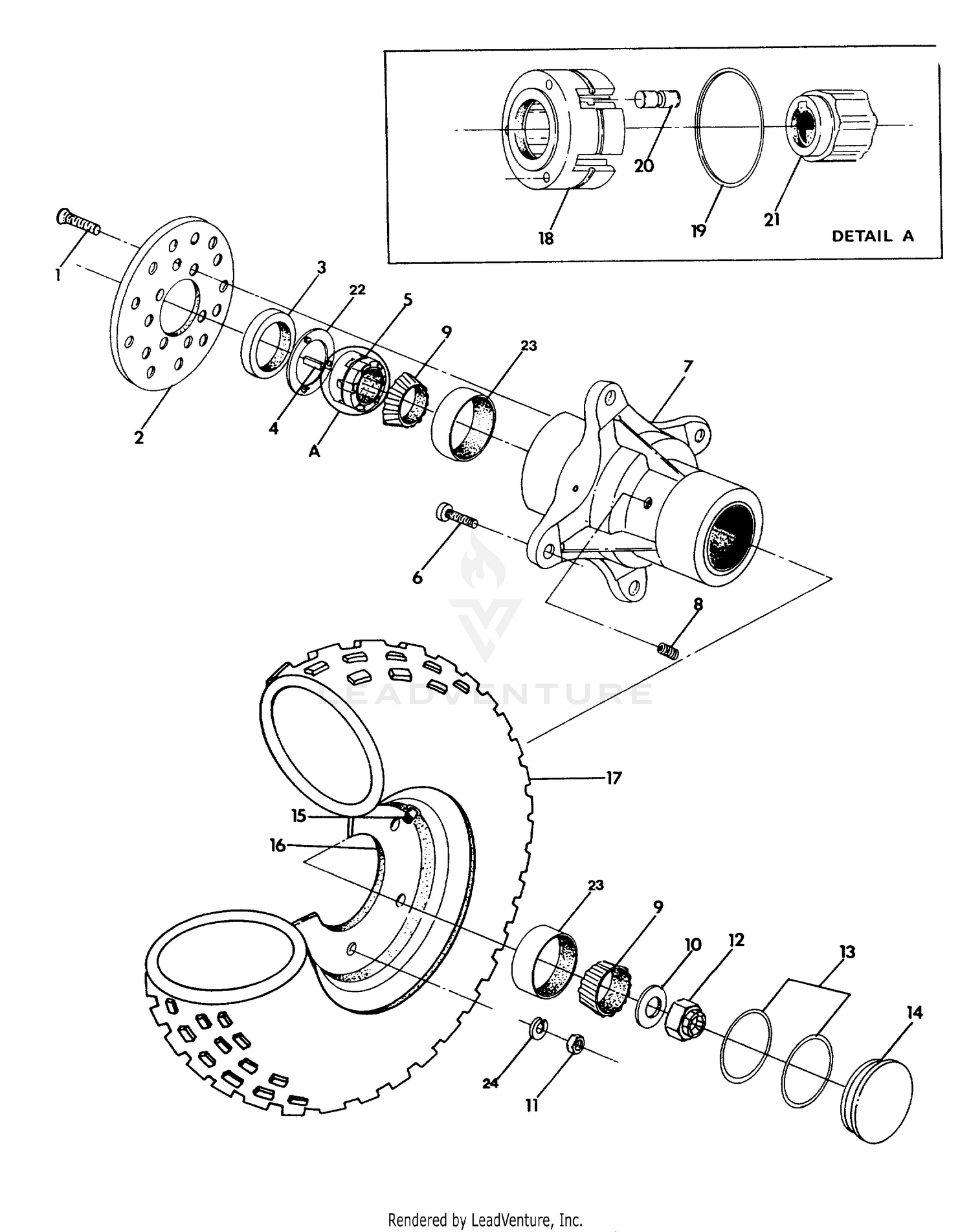

Front Wheel Assembly Updated 2-91 6x6 (4919811981017a) Diagram

Item	MSRP	Qty
#1 BOLT(10) 7515321	$1.49
Available to order. Add to View Price
#2 DISC,BRAKE 5211270 Superseded by 5242935	$109.99
Available to order. Add to View Price
#3 SEAL, FR. HUB 3610019	$44.99
Available to order. Add to View Price
#4 KEY 7721205
Unavailable
#5 CLUTCH ASM,FR.HUB 1520143
Unavailable
#6 STUD,WHEEL,5/16-18(10) 7515330
Unavailable
#7 HUB, WHEEL Substituted by 1520171 5130682
Unavailable
#8 PLUG,PIPE 7052045	$15.99
Available to order. Add to View Price
#9 BRG,TAPER.ROLL.CONE 3554506	$39.99
Available to order. Add to View Price
#10 WASHER(10) 5211101	$11.99
Available to order. Add to View Price
#11 NUT HEX(10) 7542301	$1.99
Available to order. Add to View Price
#12 KIT, NUT 7543202 Superseded by 2203005	$46.29
Available to order. Add to View Price
#13 O RING 5410470	$2.99
Available to order. Add to View Price
#14 CAP, HUB 5130684 Superseded by 5431368	$29.99
Available to order. Add to View Price
#15 VALVE-RIM 1525017	$6.99
Available to order. Add to View Price
#16 RIM,FRONT,WELD. 1520118
Unavailable
#17 TIRE,FR(22X8-10) 5410480
Unavailable
#18 CAGE, ROLL 3250023 Superseded by 3250028	$269.99
Available to order. Add to View Price
#19 SPRING, GARTER 3250022
Unavailable
#20 ROLLS 3250010	$44.99
Available to order. Add to View Price
#21 CAM 3250024
Unavailable
#22 PLATE, ARMATURE 5211148	$29.99
Available to order. Add to View Price
#23 BRG,TAPER,ROLL CUP 3554507	$39.99
Available to order. Add to View Price
#24 LOCK WASHER(10) 7552901	$1.49
Available to order. Add to View Price
