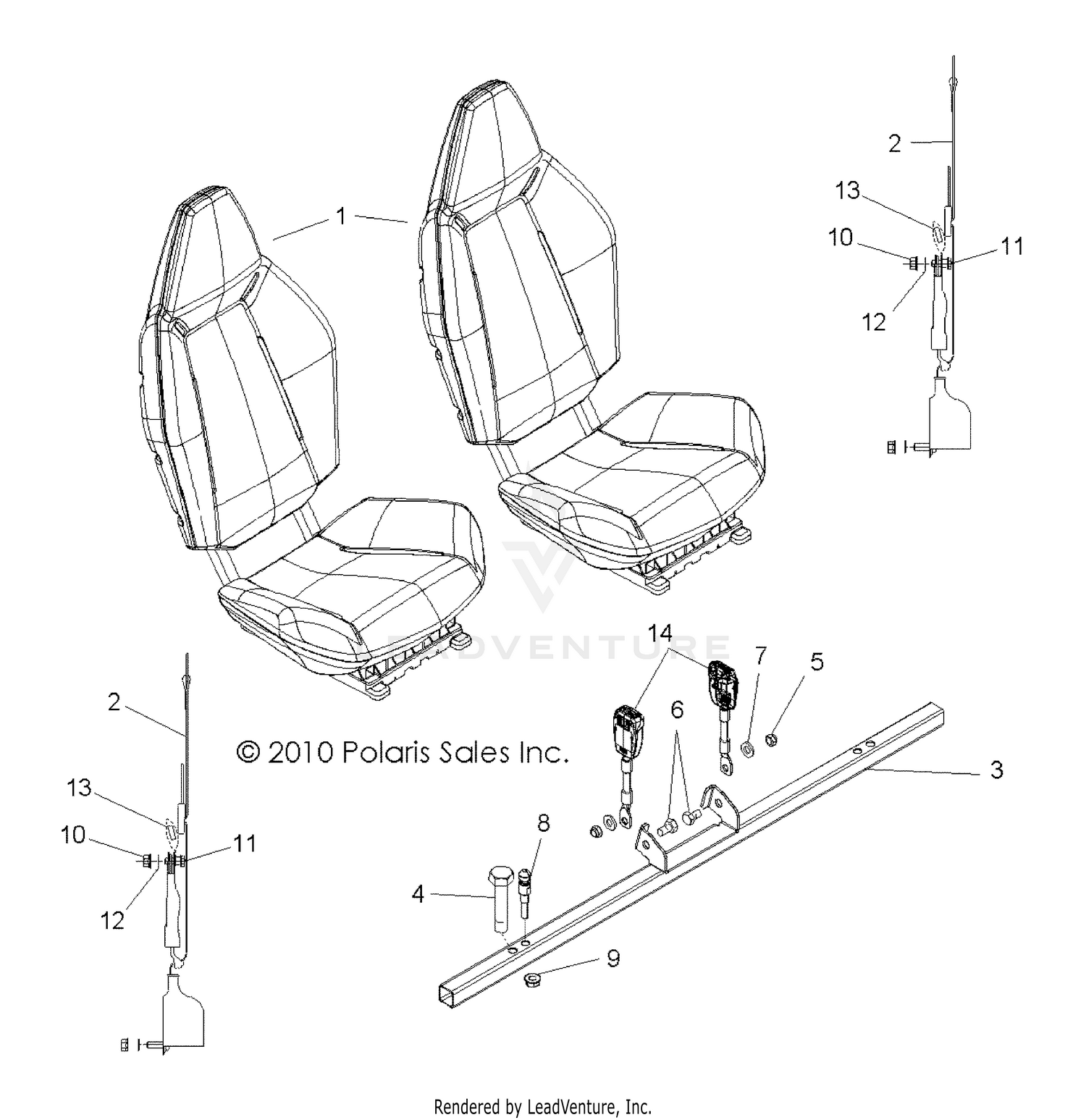

Body, Seat Mounting And Belts - R11jh87aa/ad (49rgrseatmtg11rzr875) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Seat
-------
|
|||
|
Unavailable |
|||
|
#2
Asm., Seat Belt
2634142
Superseded by 2634154
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Base, Seat, Rear, Matte Black
1017452-458
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Screw
7517442
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Nut, Nylon
7547066
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw
7512520
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Washer, Flat
7556333
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Plunger, Latch
5137240
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUNGER-LATCH
7519252
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Nut, Lock, Black
7547459
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Bolt, Shoulder
5137011
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Retainer
5253444
|
|||
|
Unavailable |
|||
|
#13
Bolt, Cap
5137010
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Buckle, Seat Belt, Cable
2634173
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
