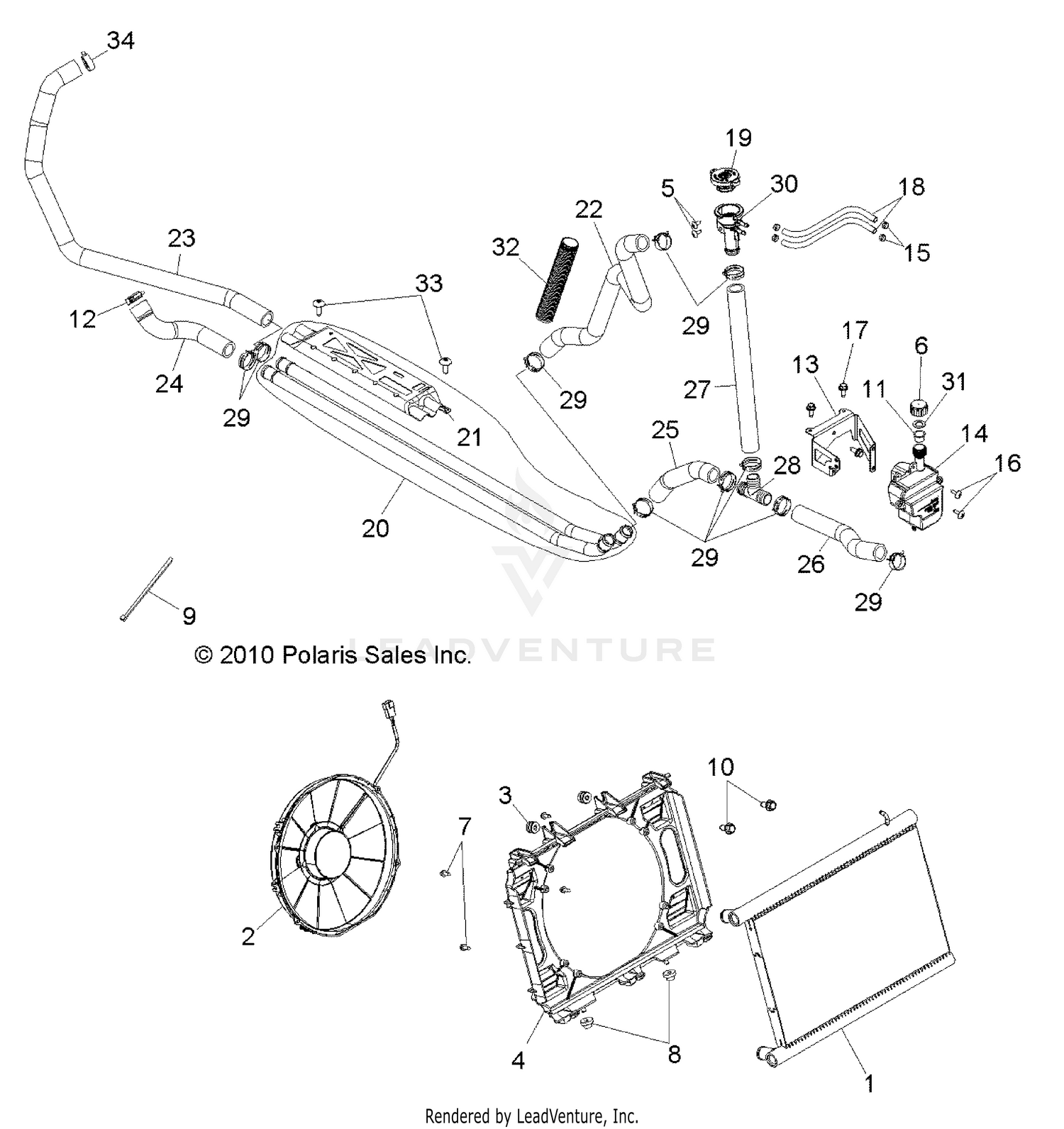

Engine, Cooling System - R11jh87aa/ad (49rgrcool11rzr875) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Radiator, Core
1240552
|
$549.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Fan
2411578
|
$266.99 | ||
|
Unavailable |
|||
|
#3
Asm., Grommet and Insert
5413509
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Shroud, Fan
5438591
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Screw
7512095
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Clamp, Hose
7080560
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Bracket, Mount, Coolant Fill
5254737
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Tank, Surge
5438781
|
$21.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Screw
7518196
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE
8450120-50
Superseded by 8450120-600
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Cap, Pressure
1240508
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Asm., Coolant Tub
1240551
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Bracket, Fuel Tank Mount, Center, Black
5254161-329
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Hose, Upper, Radiator
5413869
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Hose, Engine Inlet, Rear
5413870
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Hose, Engine Outlet, Rear
5413871
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE, LOWER, RADIATOR, SHORT
5414113
Superseded by 5414233
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE, LOWER, RADIATOR, LONG
5414114
Superseded by 5414234
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE, LOWER, RADIATOR, FILL
5414115
Superseded by 5414235
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Connector, Tee
7052373
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Clamp, Springband
7080844
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Filler, Remote, Coolant, 2 Fitting
5438110
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CONDUIT,FLEX,1.250ID
5521287-18
Superseded by 5521287-20
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#33
Screw
7517386
|
$1.49 | ||
|
Unavailable |
|||
|
#34
CLAMP-HOSE(WORM DR)25-40MM
7081192
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
