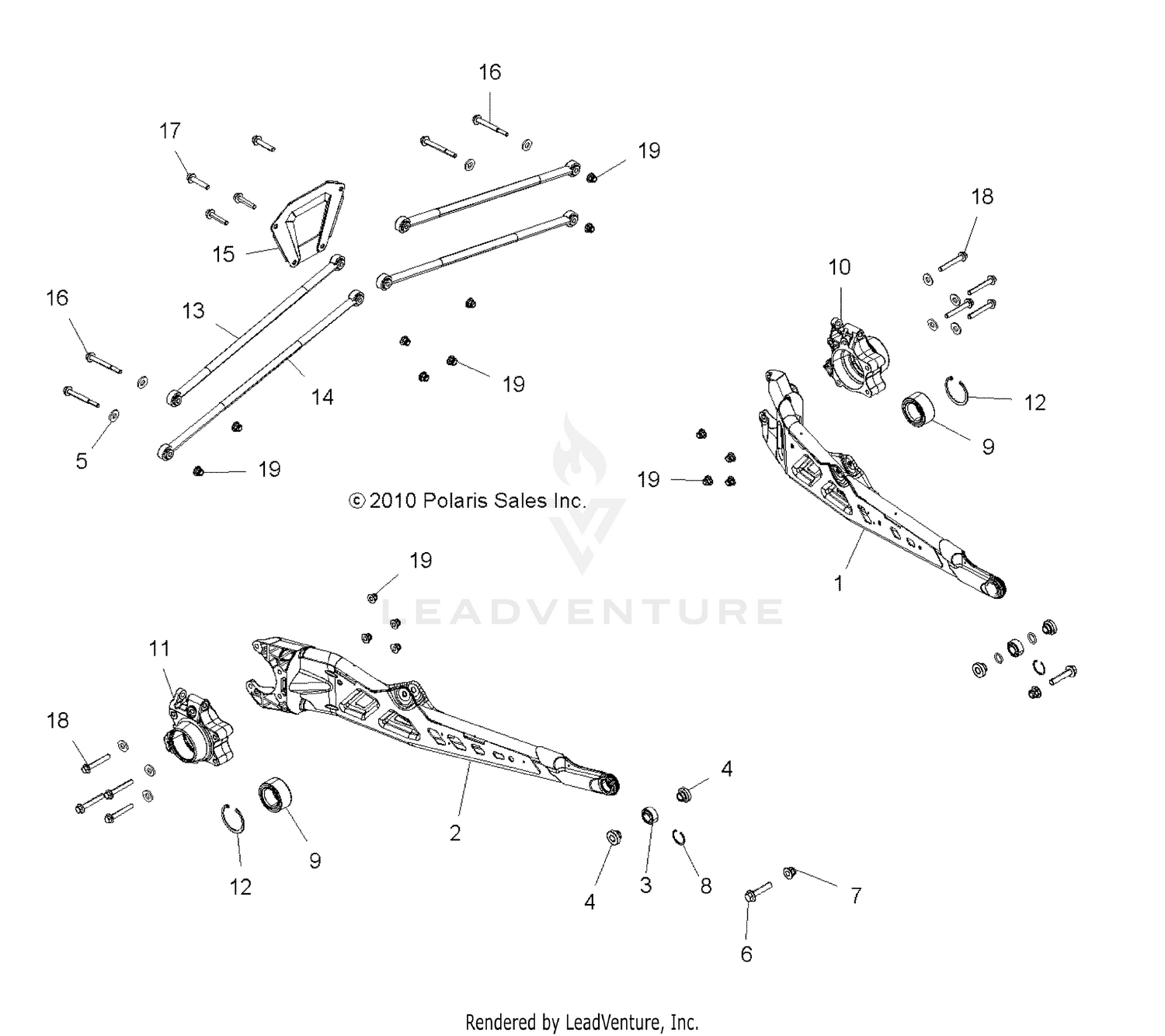

Suspension, Rear - R11jh87aa/ad (49rgrsusprr11rzr875) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Arm, Trailing, LH, Indy Red
1017465-293
|
$524.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Arm, Trailing, RH, Indy Red
1017466-293
|
$524.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Bearing, Spherical
3514689
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bushing, Reducer
5336303
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer, Flat
7556153
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw
7519138
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Nut, Flange, Nylok
7547334
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Ring, Retainer
7710437
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bearing, Ball, Sealed
3514699
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Carrier, Bearing, Wheel, LH
5137180
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Carrier, Bearing, Wheel, RH
5137181
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Ring, Retaining
7710440
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Asm., Radius Rod, Top, Indy Red
1542940-293
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ASM., RADIUS ROD, INDY RED
1542941-293
Superseded by 1543377-293
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Plate, Rear, Bolt Brace, Indy Red
5254609-293
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Screw
7519284
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Screw
7519306
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Screw
7519286
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
