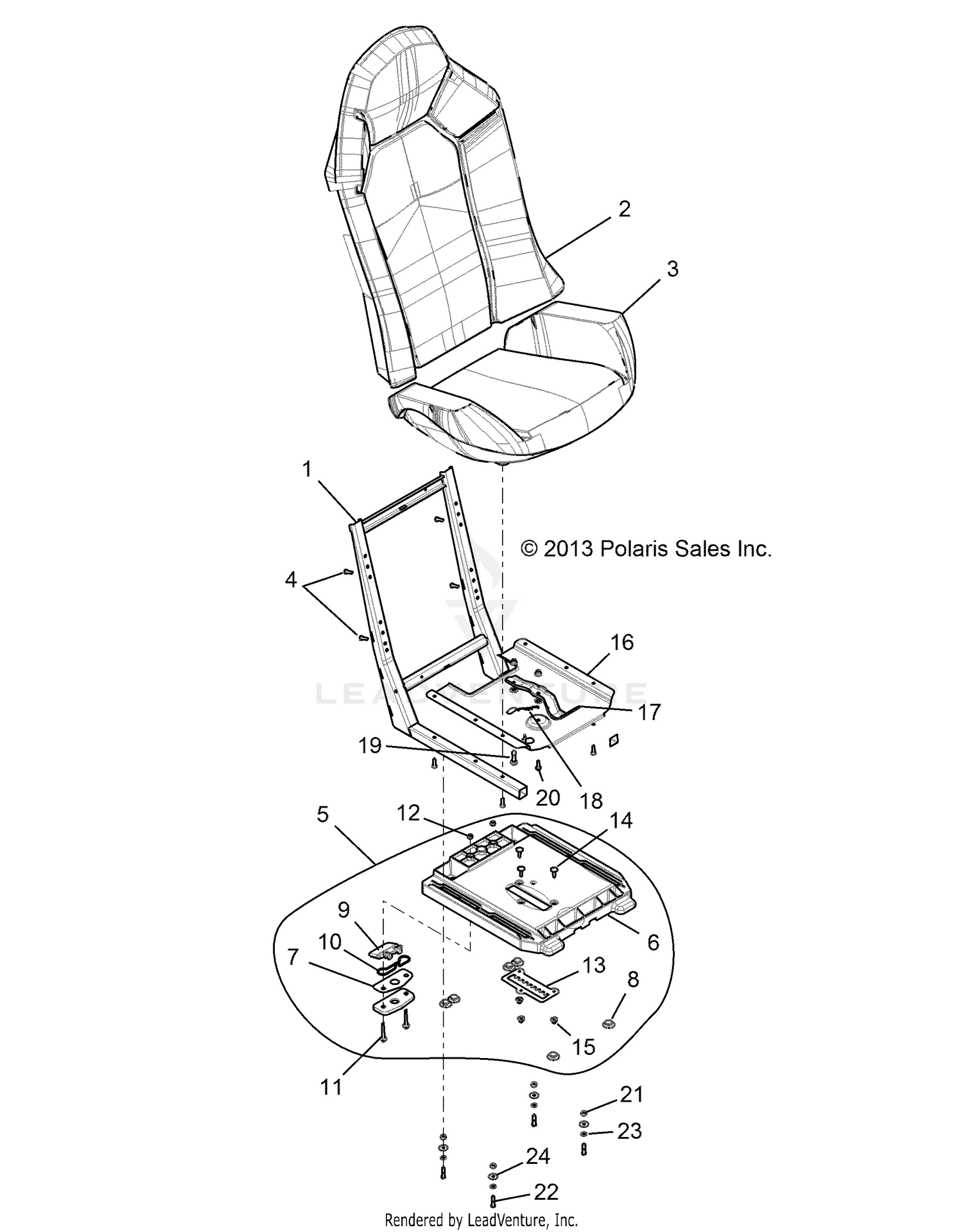

Body, Seat Asm. And Slider - Z15vde99fv (49rgrseat14rzr1000) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME, SEAT
1019447
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM., SEAT BACK, BLACK/SILVER
2686247
|
$524.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM., SEAT BOTTOM, BLACK/SILVER
2686248
|
$404.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
7515177
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ASM., BASE, SEAT SLIDER
2685704
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM., BASE, SEAT
2634889
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, SEAT LATCH
5258647
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET, SEAT BASE
5413441
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HANDLE-SEAT BASE LATCH
5437121
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, LATCH, SEAT
7081466
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
7517610
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, SEAT SLIDER ADJUSTMENT PLATE
5257975
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CARRIAGE
7518994
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, SEAT SLIDER MOUNTING PLATE
5257974
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, SEAT SLIDER LEVER
5260101
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING
7044099
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SHOULDER
7518786
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SHOULDER
7518897
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE-SPACER
5337939
Superseded by 5340145
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
7519296
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING LOCK
7552801
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, FLAT
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
