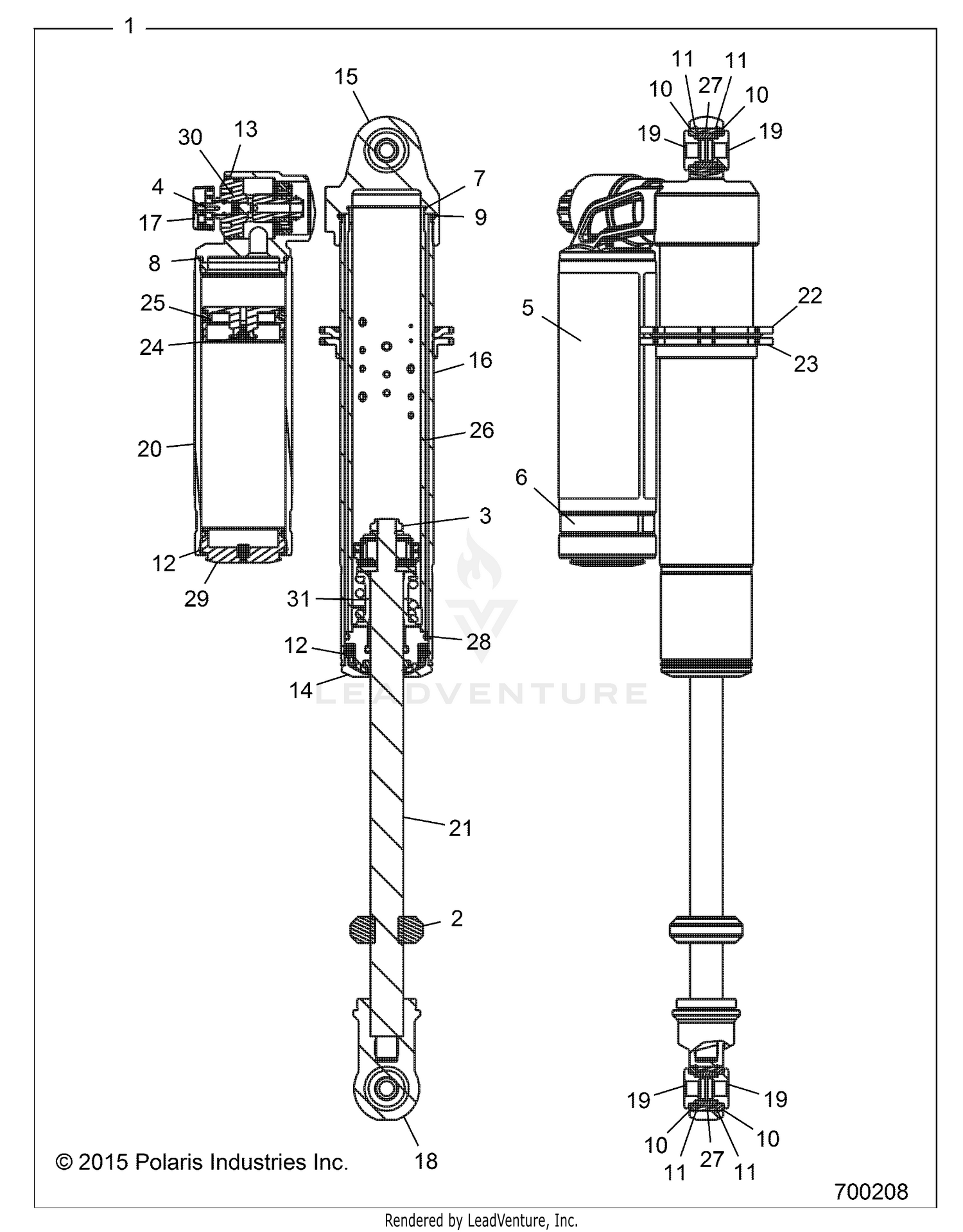

Suspension, Front Shock - Z15vde99fv (700208) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK, FRONT LH
7044374
|
$919.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
SHOCK, FRONT RH
7044375
|
$919.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Plate: Top-Out [1.570 OD X 0.503 ID X 0.128 TH, Ø 0.620 Shaft]
1500838
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Plate, Top Out
1500943
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Plate: Back-Up [0.875 OD X 0.503 ID X 0.100 TH]
1500841
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bumper: B/O [Ø 0.620 Shaft, .700 TLG] MCU, Black
1500866
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Nut, Lock
1500842
Superseded by 1500472
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Screw, #4, SS Pan
1501011
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Decal: Reservoir [4.50 X 8.04] Internal Bypass
1501045
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Decal: Band [.45 X 7.63] Performance Series
1501046
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Seals:O-Ring [(-033) .070 C.S. X 1.989 ID] Standard, N-70, Static
1501047
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Seals:O-Ring [(-139) .103 C.S. X 2.175 ID] Standard, N-70, Static
1501048
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Seals:O-Ring [(-143) .103 C.S. X 2.425 ID] Standard, N-70, Static
1501049
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Seals:O-Ring [(-315) .210 C.S. X .787 ID] Standard, N-70, Static
1501050
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Retaining Ring: Snap [-118] Steel, Gold Zinc: PH 15-7 MO, Basic Internal
1501051
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Wire, Retaining Ring
1500960
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Retaining Ring: Wire [0.062 CS X 1.690 Installed OD] SS
1501052
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bearing Cap: [Ø 2.250 Bore, .Ø 0.875 Shaft] No Scraper, Press-in, Clear Ano II
1501053
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Body Cap: (T) Piggyback, High Flow, 135° [Ø 2.250 Bore, Ø 2.250 Bore Reservoir]
1501055
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BODY,2.25X12.1TLG
1501056
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
KNOB,LOW SPD,BLK
1501057
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Eyelet Parts: [Ø 1.1866 Bore X 0.900 W, 5/8-18 UNF] .875 Shaft, Special Retainer
1501058
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
REDUCER, 0.56 TLG
1501092
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RESERVOIR
1501093
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Shaft: (T) [0.875 OD, 14.500 TLG] Steel, Chrome, Solid, 1.400" Post Length
1501059
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Ring, Preload, BU
1500955
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Ring, Preload
1500956
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Screw Assembly: [Flat Head Socket Cap #10-24 X 0.375 TLG] Steel Black Oxide, Complete
1500161
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Piston Assembly: Floating [Ø2.25 Bore] w/ Std. Temp O-Ring, Max vol. bleed and
1501060
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Body Assembly: Internal Bypass, 3-Pad, for 932-50-027 & 932-50-028
1501061
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Bearing: Spherical [Ø 0.625 Bore X Ø 1.1875 OD] COM 10, BK Liner, CCVI
1501044
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Bearing Assembly:[Ø2.250 Bore,Ø0.875 Shaft],Internal Bypass,Cinch Ring, T-Seal
1501062
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Reservoir End Cap Assembly: [Ø 2.250 Bore, .940 TLG] Pellet Fill, Aluminum, Blac
1501063
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Damping Adjust Assembly: LSC Adjuster [Ø 1.435 Bore] High Flow, Slotted Needle
1501064
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Spring Hardware Assembly: Negative Spring Guide, Ø 0.875 Shaft [450 lbs/in]
1501065
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
