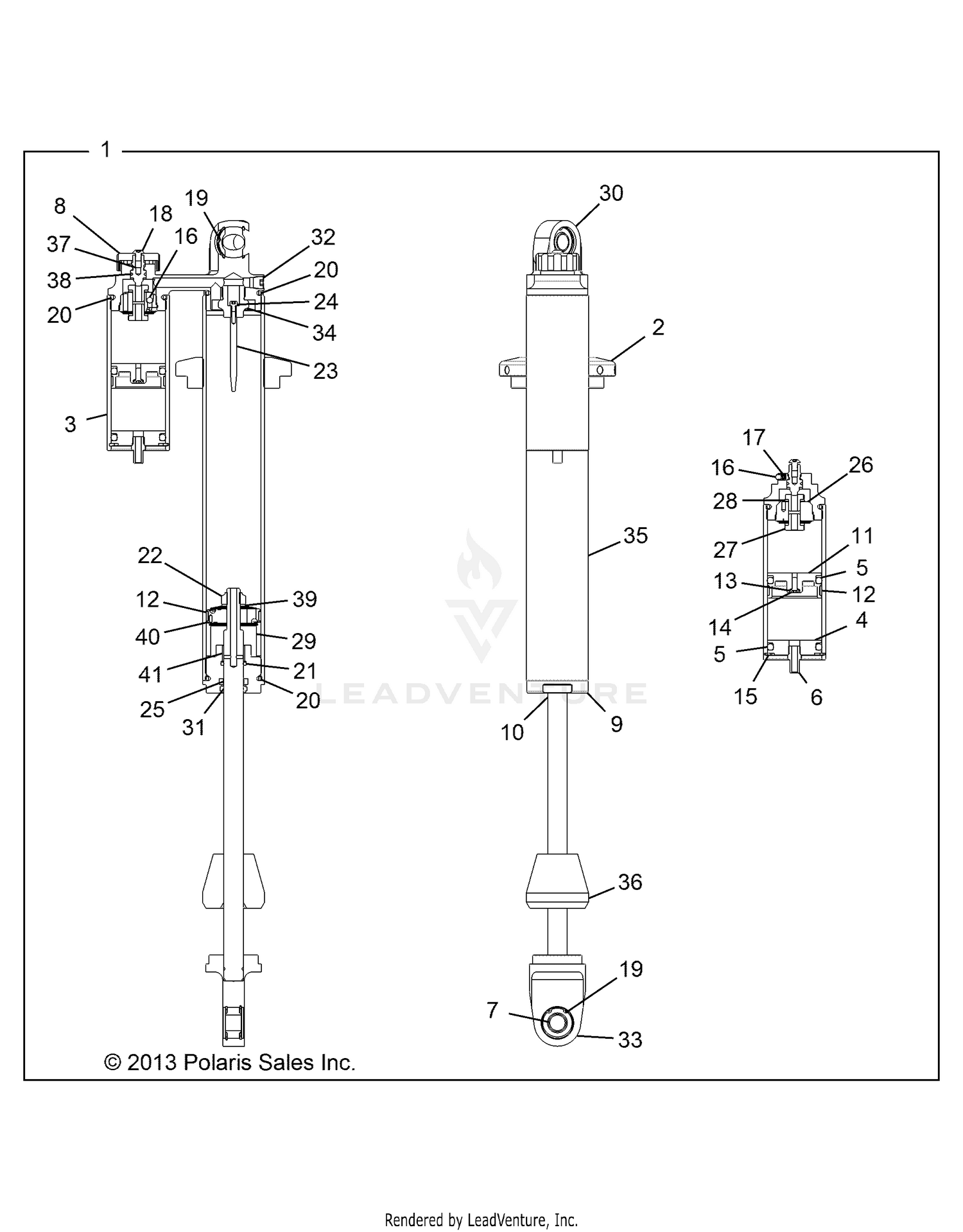

Suspension, Front Shock - Z15vde99fv (49rgrshockfrt14rzr1000) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK, FRONT, PIGGYBACK, LH
7044331
|
$899.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
SHOCK, FRONT, PIGGYBACK, RH
7044332
|
$899.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT, SPRING
1800514
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BODY, RESERVIOR, BLACK
1800575
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, END
1800574
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
1800184
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE
1800021
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, SPHERICAL
1800616
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
KNOB, CLICKER, BLACK
1800418
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL
1800596
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, 0.625 CHROME NEEDLE 12.84L 0.144 BLEED X1
1800662
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON, RESERVOIR
1800355
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, PISTON
1800185
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
1800210
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
1800043
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, SNAP
1800159
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BALL, DETENT
1800127
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING-D-TENT
1800128
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
1800357
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, SNAP
1800041
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING BODY LOOP
1800030
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING, SEAL HEAD, BROWN
1800655
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CASTLE
1800164
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NEEDLE
1800300
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Screw
1800074
Superseded by 1800299
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL, U-CUP, BLACK
1800656
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PISTON
1800217
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
1800219
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
1800050
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER
1800598
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIGGY BACK, LH
1800595
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIGGY BACK, RH
1800594
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WIPER
1800034
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUG, PIPE
1800599
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
LOOP, SHAFT
1800600
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, NEEDLE
1800601
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BODY
1800602
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BUMPER
1800603
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
STUD, CLICKER
1800352
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING
1800215
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER
1800187
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
PISTON, NO BLEEED
1800604
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BUSHING
1800038
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
