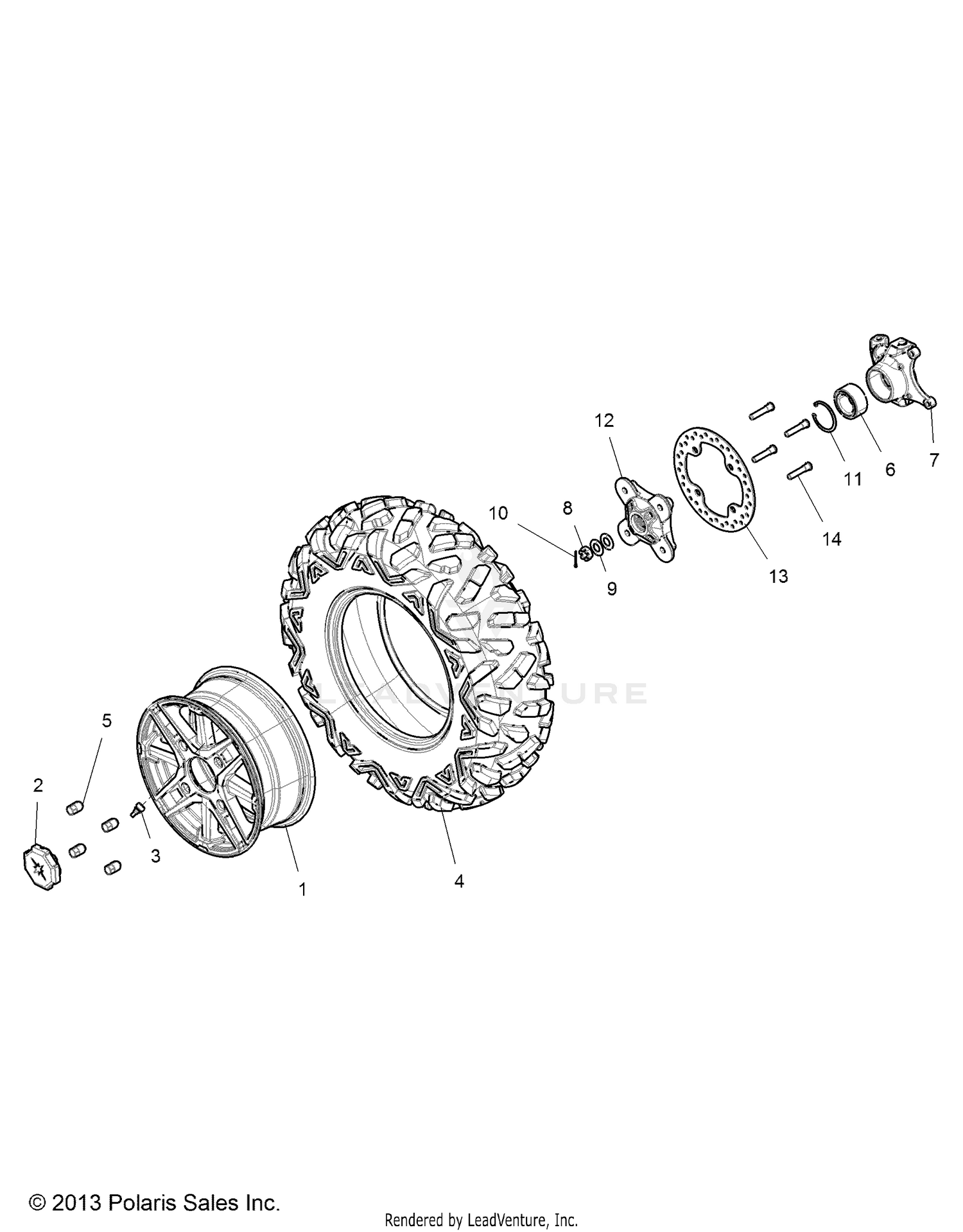

Wheels, Front - Z15vde99fv (49rgrwheelfrt14rzr1000) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RIM, FRONT, CAST
1521963-655
|
$324.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP-RIM,BLK
1522216
Superseded by 1522216-655
|
$29.99 | ||
|
Unavailable |
|||
|
#3
VALVE-RIM
1525017
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TIRE, FRONT, 29X9R14
5414964
|
$232.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, WHEEL, TAPERED
7547489
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, BALL, SEALED
3514822
|
$54.99 | ||
|
Unavailable |
|||
|
#6
BEARING-WHEEL,HD,44X72X33.1MM
3515090
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
KNUCKLE, FRONT, RH
5139305
|
$169.29 | ||
|
Unavailable |
|||
|
#7
KNUCKLE, FRONT, LH
5139304
|
$169.29 | ||
|
Unavailable |
|||
|
#8
NUT, CASTLE, ZINC/YELLOW
7547337
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, CONE
7555796
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, COTTER
7661404
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING-RETAINING,2.835,INTERNAL
7710780
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HUB-WHEEL(MACH),BLK
5139265
Superseded by 5139265-067
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DISC, BRAKE
5257196
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
STUD, WHEEL
7519792
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
