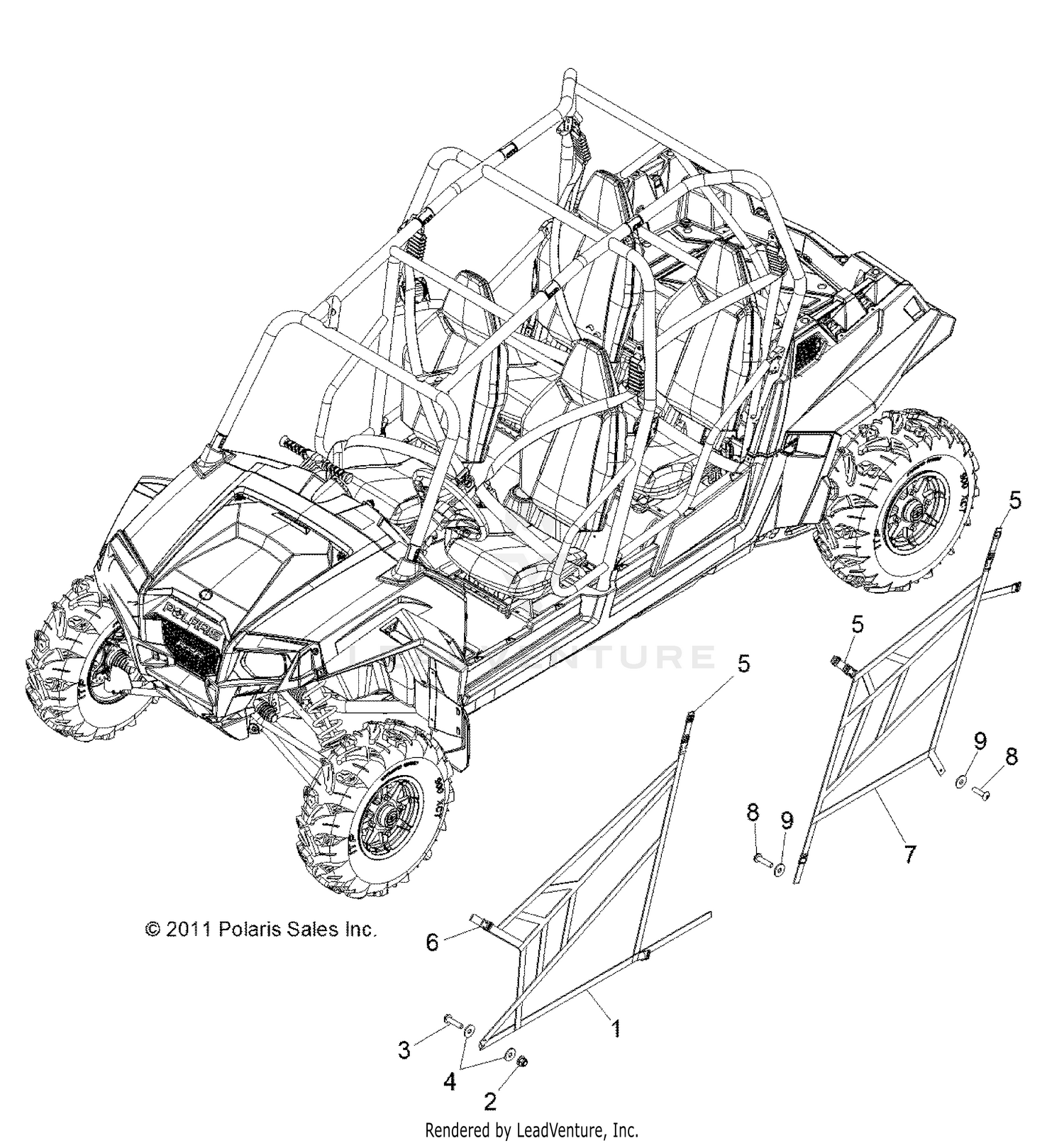

Body, Side Nets - R13xt87aa/9eak (49rgrnets12rzrxp4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NET, FRONT
2684615
Superseded by 2685844
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCR-TXPHM6X1.0X25 8.8 RIE
7518535
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WSHR-6.4X18.0X1.6 ZPB
7556064
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NET, STRAP, LATCH
2684647
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ASM., CLIPS, NET, FRONT
2204646
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NET, REAR
2684616
|
$229.99 | ||
|
Unavailable |
|||
|
#8
SCREW
7517230
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
7556034
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
