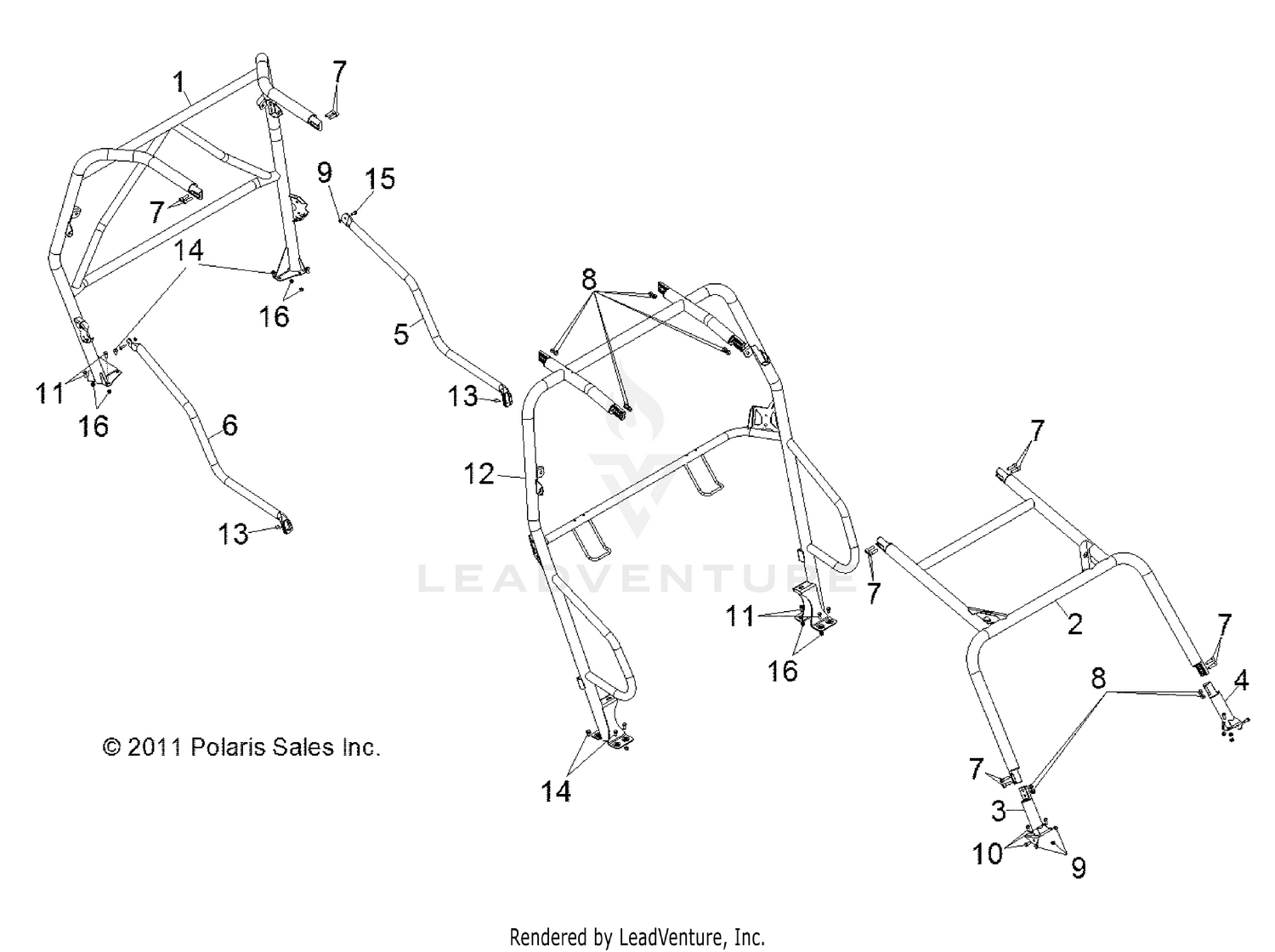

Chassis, Cab Frame And Side Bars - R13xt87aa/9eak (49rgrcab12rzrxp4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME, CAB, REAR, LOC, MATTE BLACK
1017785-458
Superseded by 1019564-458
|
$1,064.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FRAME, CAB, FRONT, LOC, MATTE BLACK
1017783-458
Superseded by 1019959-458
|
$514.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BASE, CAB FRAME, FRONT, RH, MATTE BLACK
5632414-458
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BASE, CAB FRAME, FRONT, BASE, LH, MATTE BLACK
5632415-458
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE, CAB FRAME, SIDE, REAR, LH, MATTE BLACK
5336743-458
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, CAB FRAME, SIDE, REAR, RH, MATTE BLACK
5336744-458
|
$93.99 | ||
|
Unavailable |
|||
|
#7
SCREW
7517935
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HEX-3/8-16 A ZTB NYL
7542451
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
7518702
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
7519308
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRAME, CAB, MID, MATTE BLACK
1017925-458
Superseded by 1019961-458
|
$1,304.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
7518280
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
7517826
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
7547385
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
