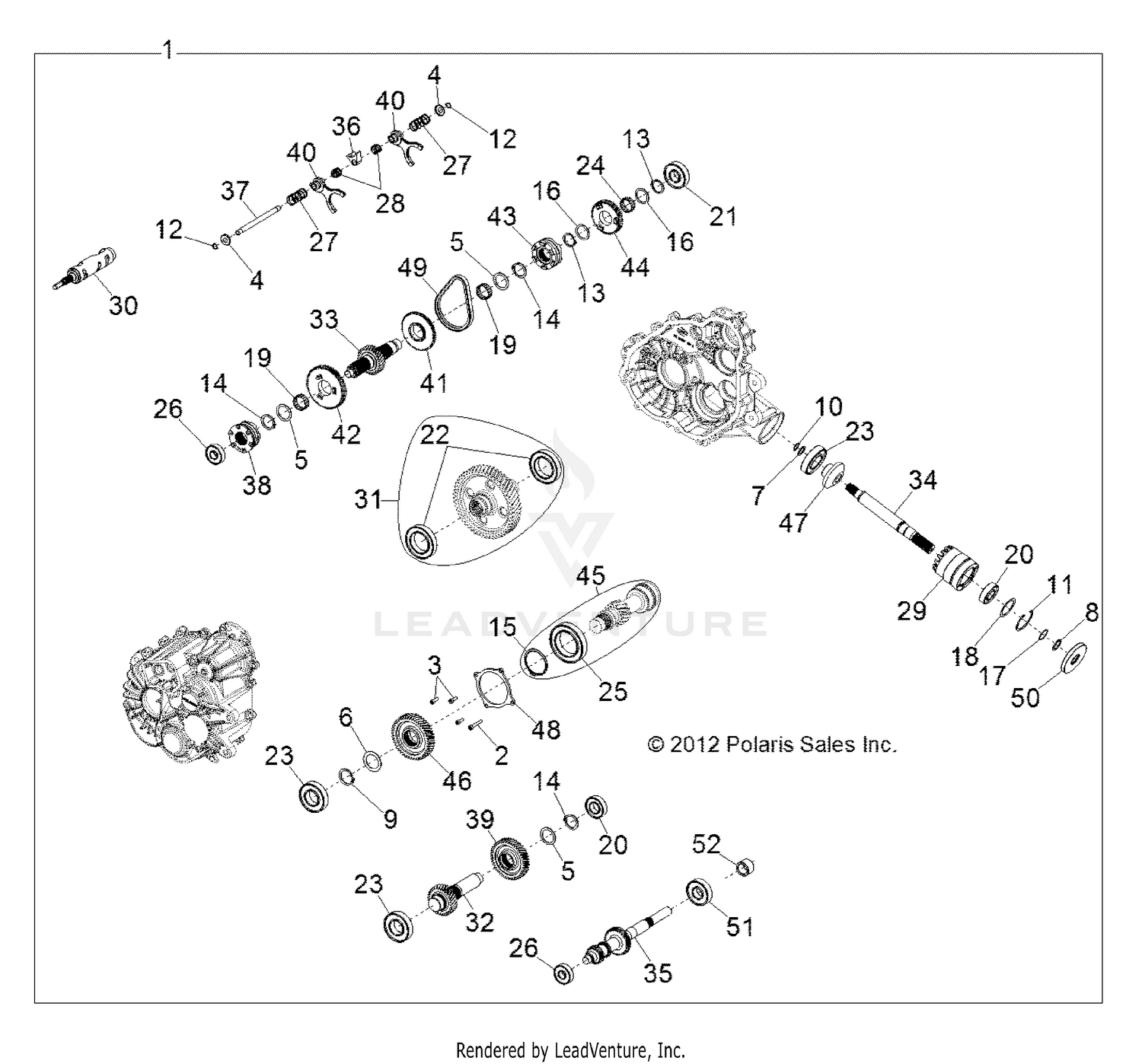

Drive Train, Main Gearcase Internals - R13xt87aa/9eak (49rgrtransintl1333044) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., GEARCASE
1333044
|
$3,604.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, SOCKET HEAD
3235208
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, SOCKET HEAD
3235332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER-CUP
3234091
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
3235211
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
3235212
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
3235213
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, RETAINING
3233364
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING, RETAINING, EXTERNAL
3234318
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING,RETAINING BASIC,INTERNAL 2.047
3234269
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, RETAINING
3234205
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING,RETAINING BASIC,EXTERNAL MSR-32
3235214
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING, RETAINING
3235216
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHIM
3234272
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHIM
3234273
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, NEEDLE
3233014
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, BALL, 6205 C3 25X52X15
3233019
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING
3233020
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, BALL
3233268
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING,BALL 6207 C3 35MMX72MMX17MM
3234065
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, NEEDLE
3233384
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, BALL
3235218
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, BALL
3234652
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING, COMPRESSION
3234089
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
TUBE
3234278
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
DRUM-SHIFT,MACH.(255289)
3235463
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHAFT, OUTPUT, GEAR
3235335
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHAFT, IDLER, 29T
3235223
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SHAFT, REVERSE, 29T
3235224
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SHAFT, OUTPUT, FRONT
3235225
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SHAFT, INPUT
3235464
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
COLLAR-SHIFT
3234073
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
RAIL, SHIFT SHAFT
3234079
Superseded by 3235542
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
DOG, SHIFT, PARK
3235457
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
GEAR-44T,STAGE2
3235229
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
FORK, SHIFT
3235454
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPROCKET, 48T, 6 FACE
3235231
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
GEAR, 67T
3235232
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
DOG, ENGAGEMENT, 6-FACE
3235233
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
GEAR, 53T
3235234
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
SUBASM.,SHAFT
3235336
|
$444.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
GEAR, 46T, STAGE 3
3235236
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
GEAR, 13T, FRONT OUTPUT
3235237
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
COVER-BEARING,CNTR DR.
3235241
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
CHAIN,SIL 101,.25P X .40W X58L
3234737
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
SEAL, TRIPLE LIP
3234113
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
BEARING,BALL 6305RSH2 C3 25MMX62MMX17MM
3235328
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
SLEEVE, COLLAR, INPUT SHAFT
3235465
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
